Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  2. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  3. Open the sliding door 1/3 of the way.
  4. Support the bottom of the sliding door.
  5. Remove the center roller bracket pin. Separate the center roller bracket. Body side, from the center roller bracket, door side.
  6. Position the bottom of the sliding door out at the rear in order to provide access to the center roller bracket, body side.

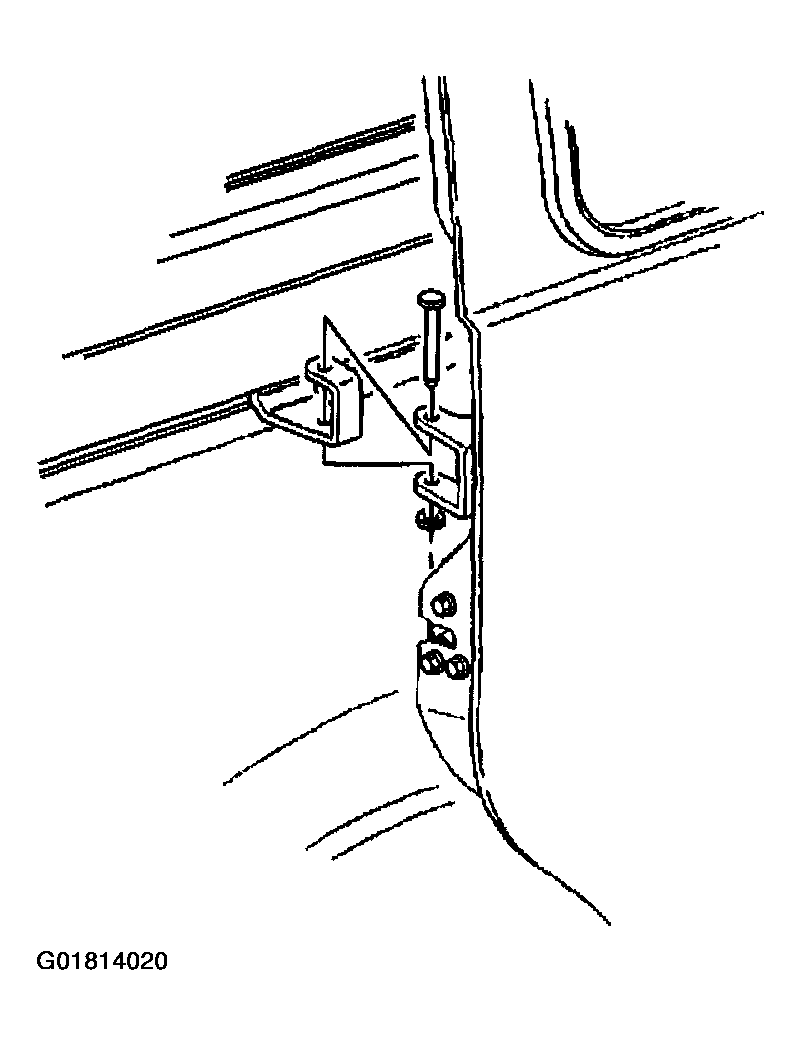

    Fig 1: Removing Right Rear Quarter Lower Trim Panel (With RPO E58)
    G01814020Courtesy of GENERAL MOTORS CORP.
  7. Remove the sliding door center track cover. Refer to Center Track Cover Replacement - Sliding Door (With RPO E58) .
  8. Position the sliding door center roller bracket, body side, at the front of the center roller track.
  9. Release the cable tension by pushing the tensioning nut inward. Pull the rear cable in order to achieve slack.
  10. Visually confirm that the cables are slack by observing that the center white dots are below the white indicator bands.
  11. Lift the center roller bracket, body side, up and out from the front radius of the sliding door center track.
    Fig 2: Removing Sliding Door Center Track Cover (With RPO E58)
    G01814021Courtesy of GENERAL MOTORS CORP.
  12. Detach the cable ends from the sliding door center roller bracket, body side.
  13. Remove the front pulley bolts.
    Fig 3: Removing Front Pulley & Bolts (With RPO E58)
    G01814022Courtesy of GENERAL MOTORS CORP.
  14. Remove the front pulley nut.
  15. Remove the front pulley from the front inner quarter panel.
  16. Remove the rear pulley bolts.
    NOTE: Use care when feeding cables to and from the center track and body to avoid damage to the coated cables and the vehicle's painted surface.
  17. Remove the rear cable from the opening at the rear of the sliding door center track.
  18. Remove the rear pulley from the rear inner quarter panel.
  19. Disconnect the wiring harness from the actuator control module.
  20. Remove the motor clutch assembly nuts.
  21. Remove the motor clutch assembly bolts.
  22. Carefully remove the motor clutch assembly from the vehicle.
