Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the outside rearview mirror nuts.
  3. Disconnect the mirror electrical connectors.
  4. Remove the outside rearview mirror from the front door.

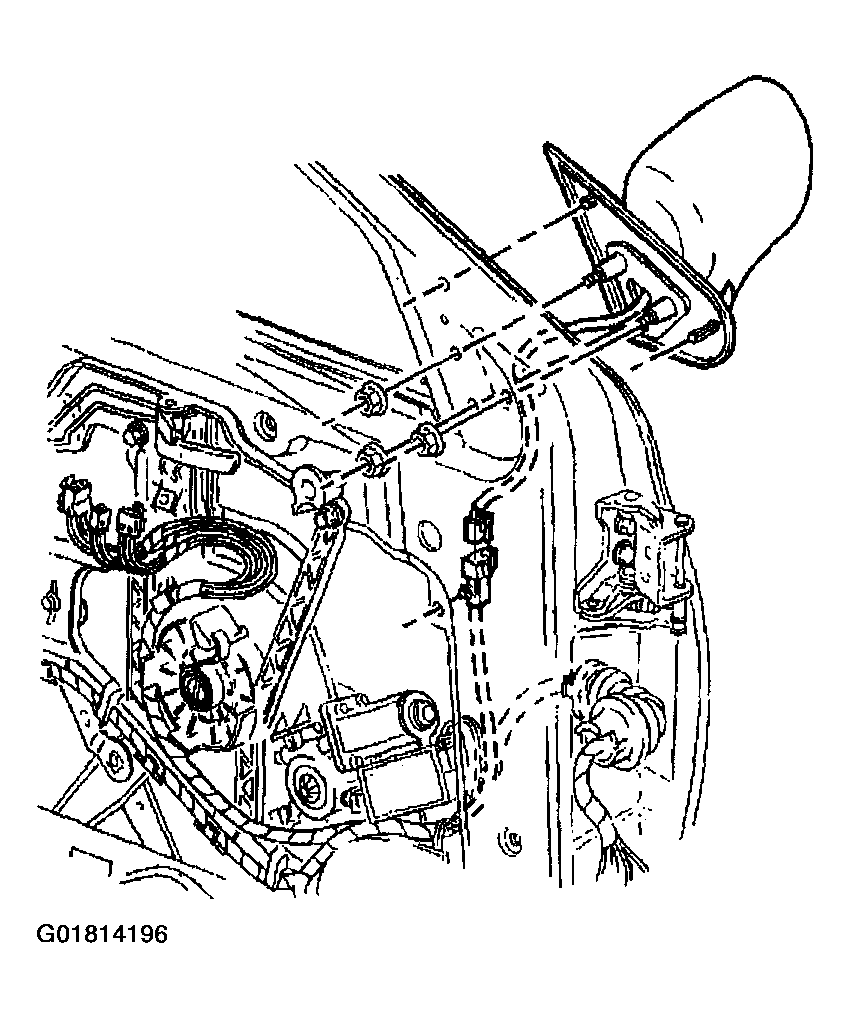

    Fig 1: Removing Outside Rearview Mirror & Nuts (Without Turn Signal Indicator)
    G01814196Courtesy of GENERAL MOTORS CORP.
