Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
  2. Remove the cowl side trim panel. Refer to TRIM PANEL REPLACEMENT - COWL SIDE .
  3. Remove the closeout/insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  4. Disconnect the outside rearview mirror turn signal indicator electrical connector.

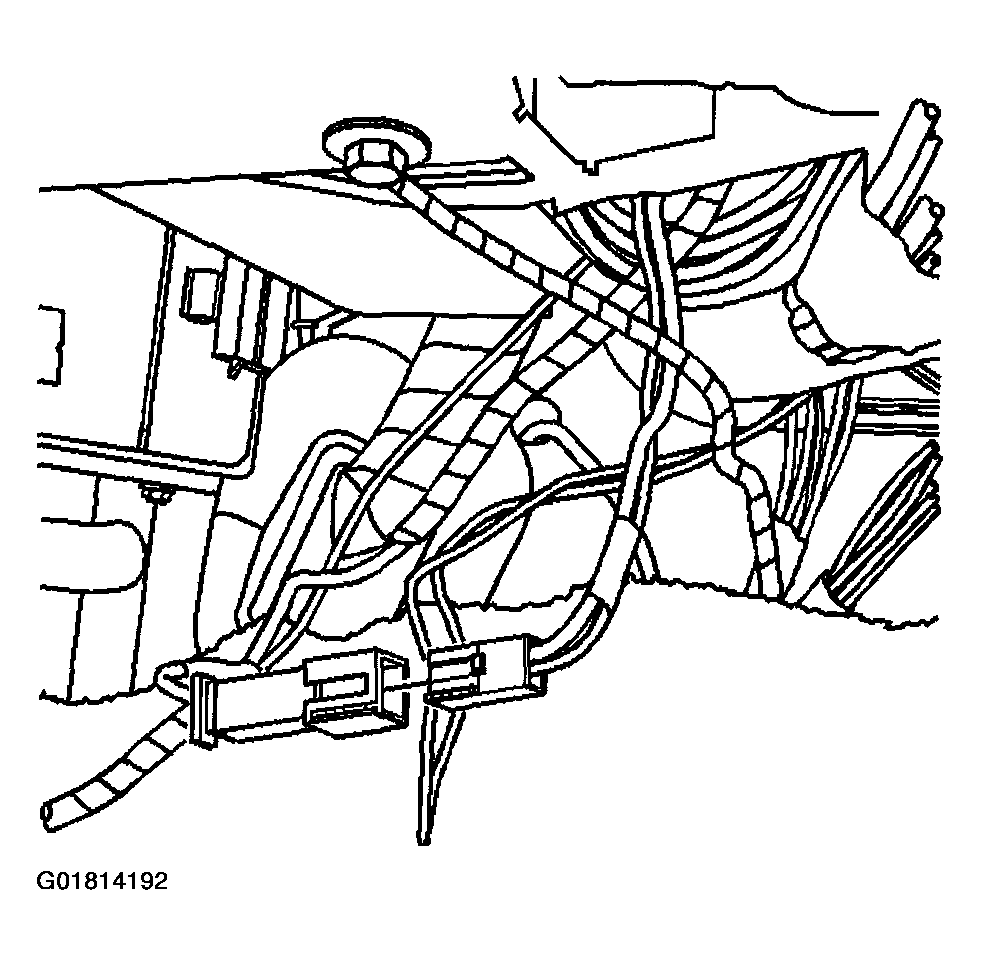

    Fig 1: Disconnecting Outside Rearview Mirror Turn Signal Indicator Electrical Connector
    G01814192Courtesy of GENERAL MOTORS CORP.
  5. Route the outside rearview mirror turn signal indicator electrical harness through the opening in the side of the instrument panel and through the rubber conduit into the inner front door.
  6. Disconnect the outside rearview mirror electrical connectors.

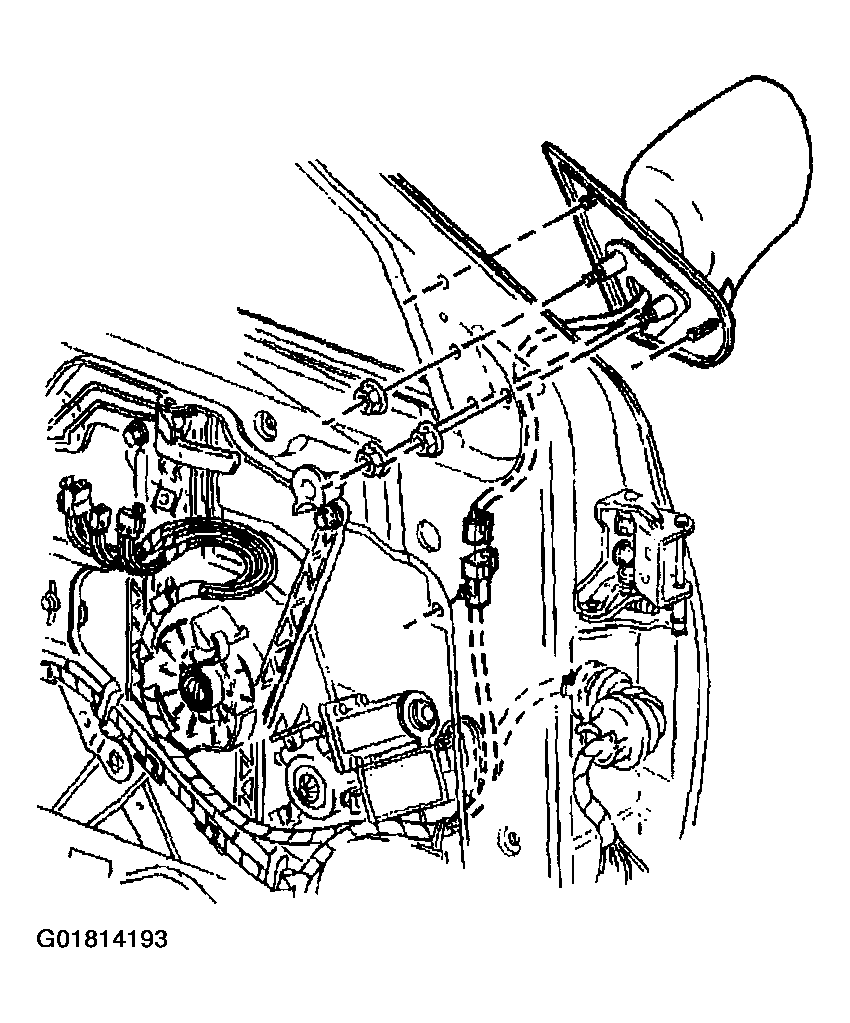

    Fig 2: Removing Outside Rearview Mirror & Nuts (With Turn Signal Indicator)
    G01814193Courtesy of GENERAL MOTORS CORP.
  7. Remove the outside rearview mirror nuts.
  8. Remove the outside rearview mirror from the front door.
