Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
  1. Carefully push the outside rearview mirror face on the inner edge, near the front door window glass, to allow finger access.
  2. Grasp the mirror face firmly and pull it from the mirror body.
    Fig 1: Pushing Outside Rearview Mirror Face On Inner Edge
    G01814200Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the heated mirror face electrical connector if equipped.
  4. Disconnect the rearview mirror turn signal indicator electrical connector if equipped.

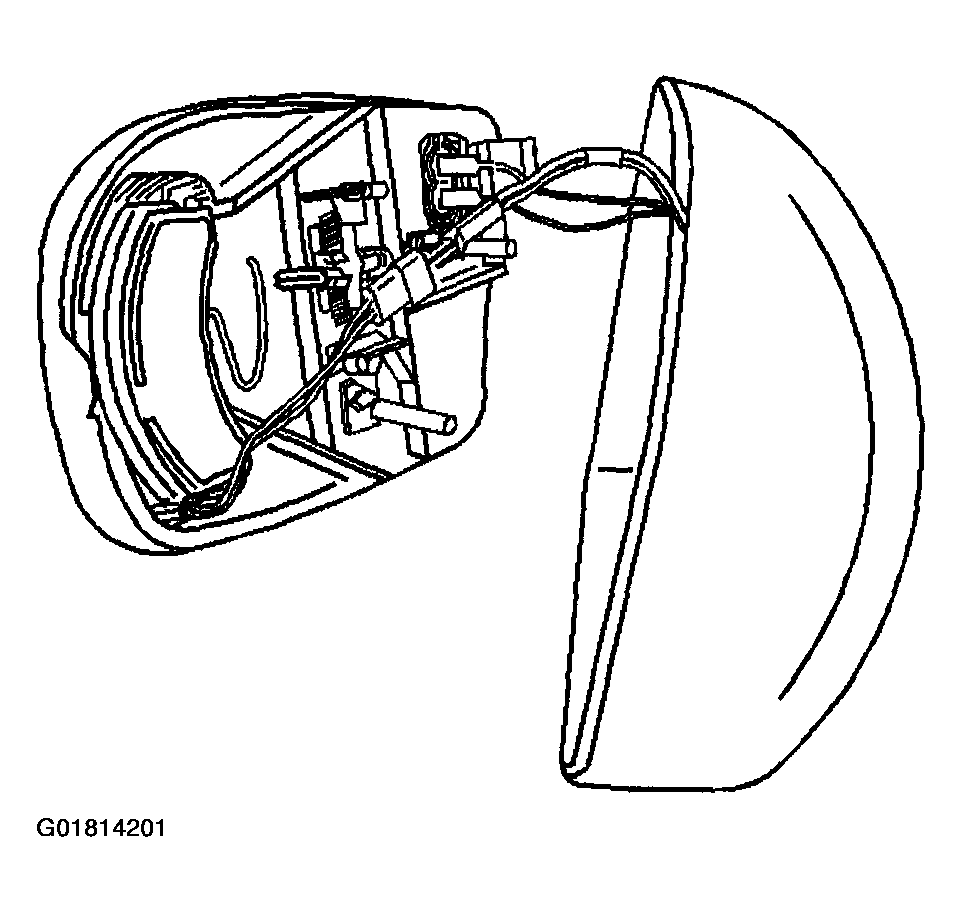

    Fig 2: Disconnecting Rearview Mirror Turn Signal Indicator Electrical Connector
    G01814201Courtesy of GENERAL MOTORS CORP.
  5. Remove the 2 jackscrews from back of the mirror case
    • Bend the 2 jackscrews over.
    • Press down on the side of the jackscrew popping the screw from the mirror glass case.
    • Save the jackscrews for reinstallation to the mirror motor.
    Fig 3: Removing Jackscrews From Back Of Mirror Case
    G01814202Courtesy of GENERAL MOTORS CORP.
