Lock Rod Adjustment - Sliding Door

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door 5 cm (2 in).
  2. Connect the rear of the lock rod to the latch.
  3. Connect the front of the lock rod to front latch assembly.
  4. Adjust the barrel nut until the edge of the nut is between the center and the rear edge of the retaining clip.
  5. Verify that the inside door handle and the outside door handle operate correctly.
  6. Verify that the powersliding door operates correctly.
  7. Repeat the adjustment, as needed.

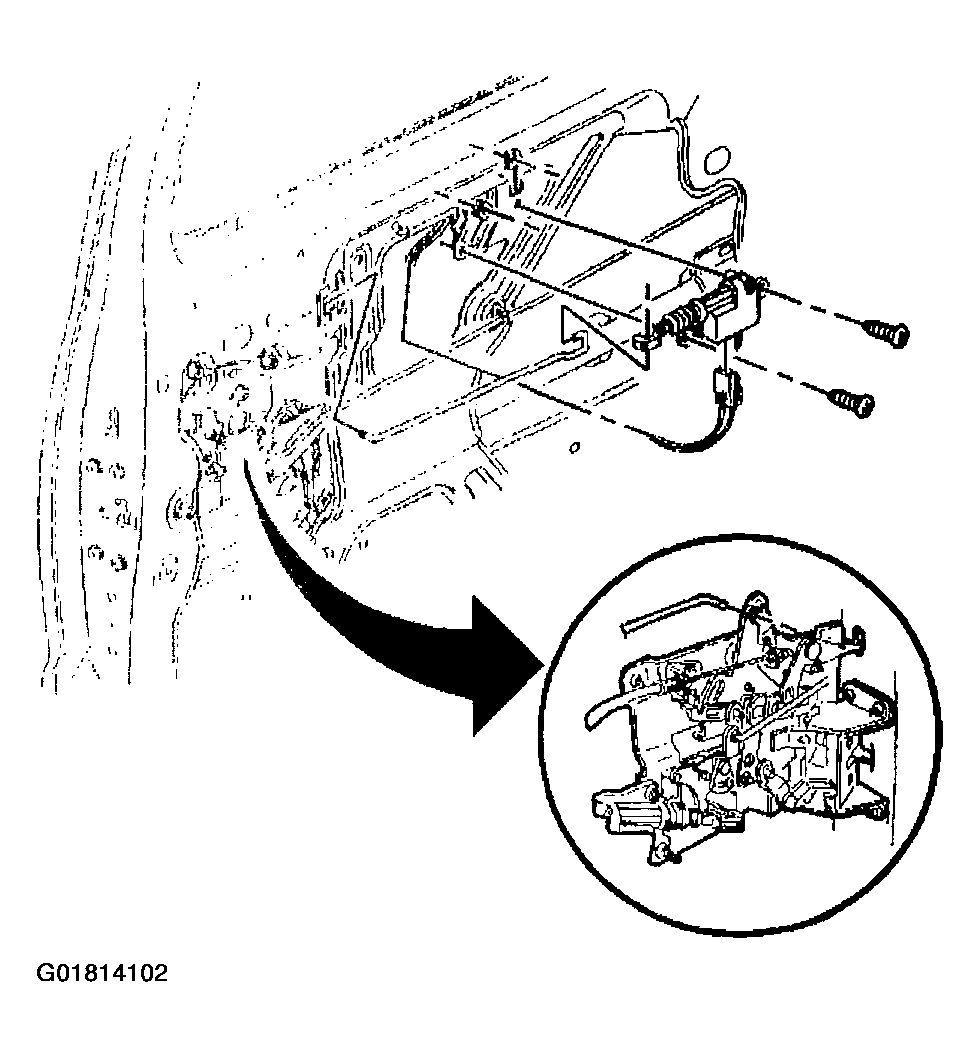

    Fig 1: Lock Rod & Front Latch Assembly
    G01814102Courtesy of GENERAL MOTORS CORP.
