Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the sliding door water deflector. Refer to Water Deflector Replacement - Sliding Door .
  3. Remove the sliding door latch screws
  4. When the sliding door rear lock is loose, unhook the lock rod from the sliding door rear lock.
  5. Remove the sliding door rear lock from the sliding door.

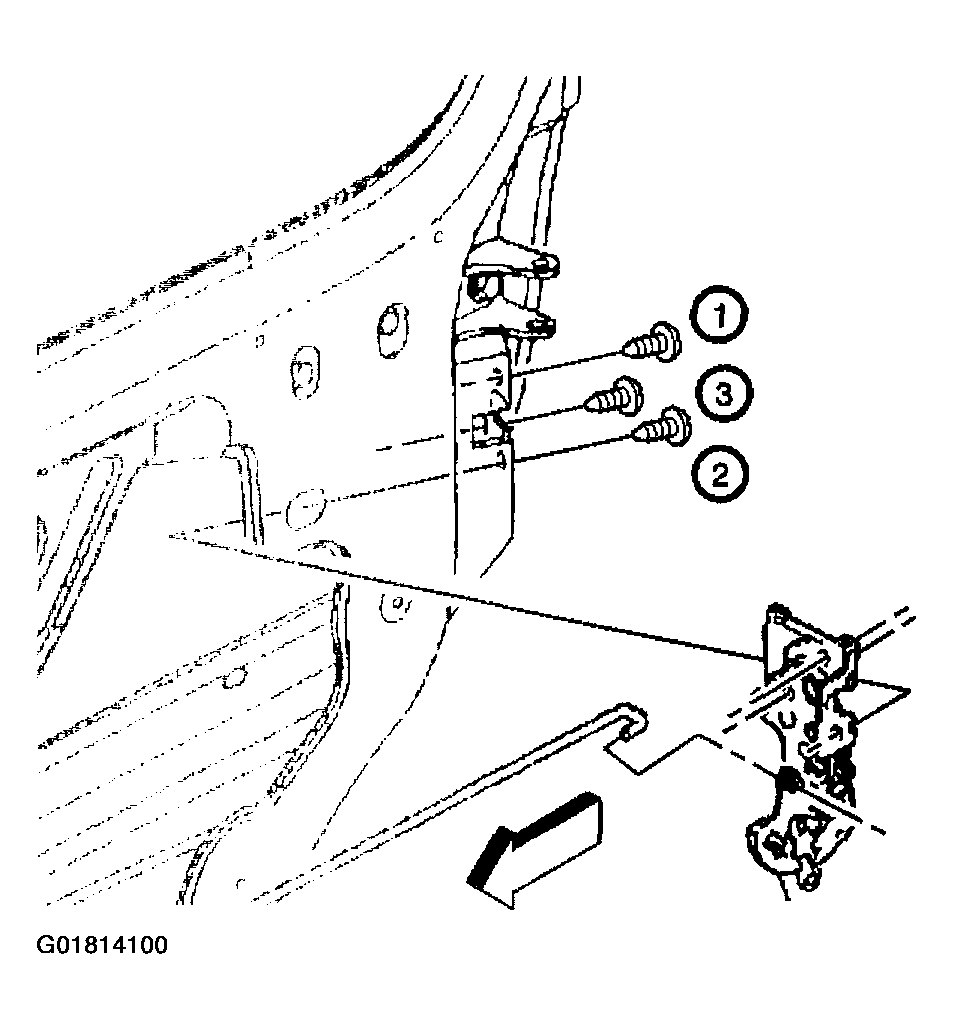

    Fig 1: Removing Sliding Door Rear Lock, Latch & Screws
    G01814100Courtesy of GENERAL MOTORS CORP.
