Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door outside handle. Refer to Door Handle Replacement - Front Outside .
  2. Remove the lock cylinder retainer from the front door outside handle.
  3. Remove the front door lock cylinder from the front door outside handle.

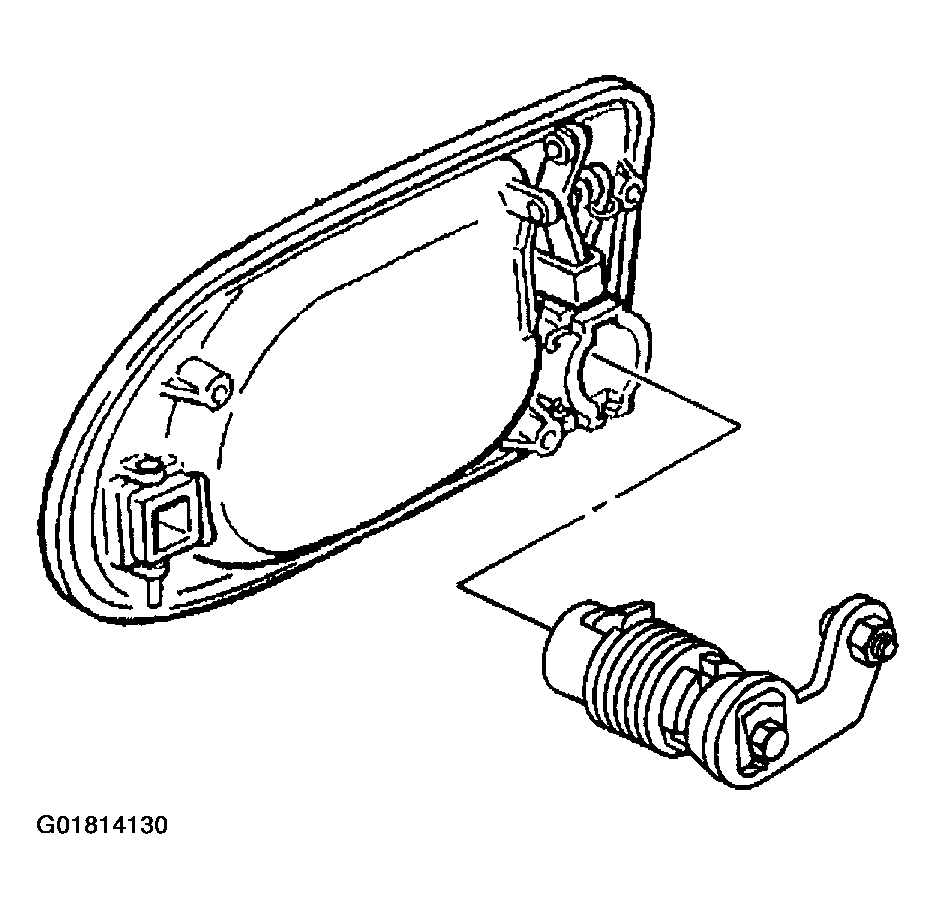

    Fig 1: Removing Lock Cylinder & Retainer
    G01814130Courtesy of GENERAL MOTORS CORP.
