Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door lock. Refer to Lock Replacement - Sliding Door Rear .
  2. Disconnect the wiring harness connector from the sliding door lock actuator.
  3. Drill out the sliding door lock actuator rivets.
  4. Remove the sliding door lock actuator from the sliding door lock.

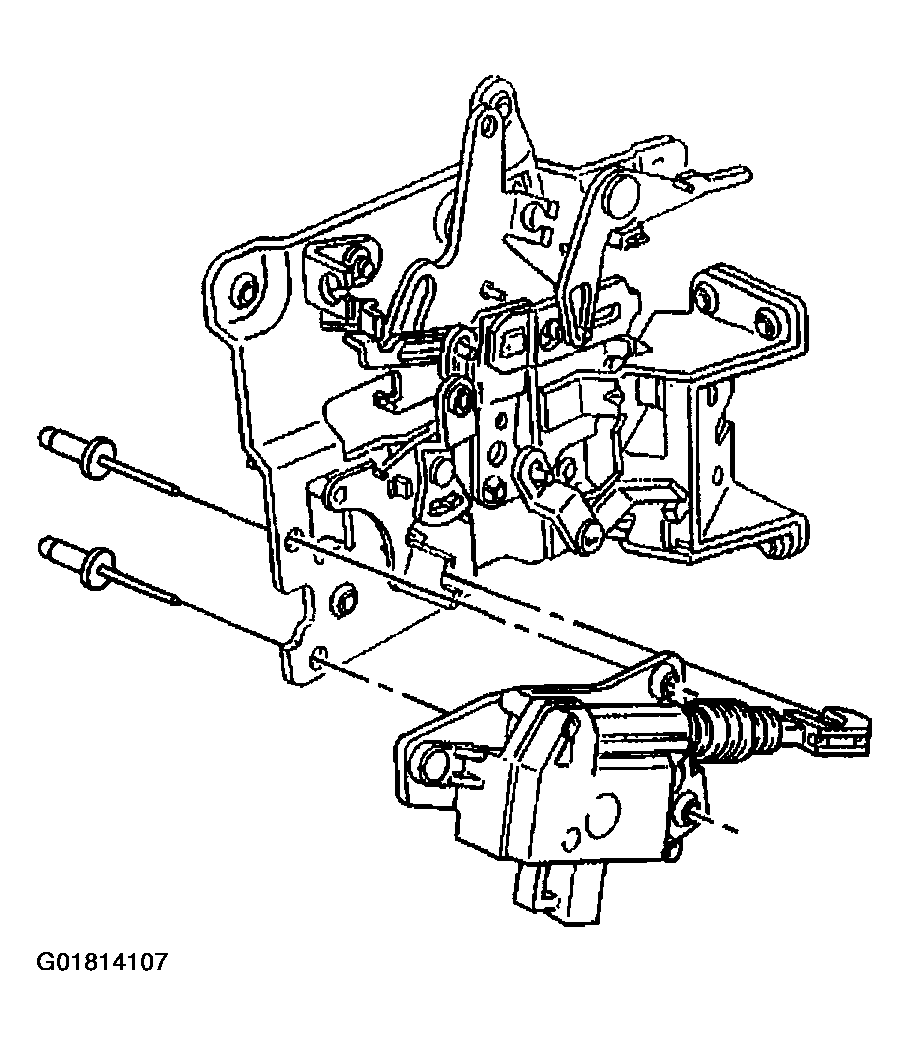

    Fig 1: Removing Sliding Door Lock Actuator & Retainers
    G01814107Courtesy of GENERAL MOTORS CORP.
