Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding door inner trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the sliding door water deflector. Refer to Water Deflector Replacement - Sliding Door .
  3. Disconnect the powersliding door latch release actuator electrical connector.
  4. Remove the powersliding door latch release actuator screws.
  5. Remove the powersliding door latch release actuator.
  6. Unhook the powersliding door latch release actuator rod from the powersliding door latch release actuator.

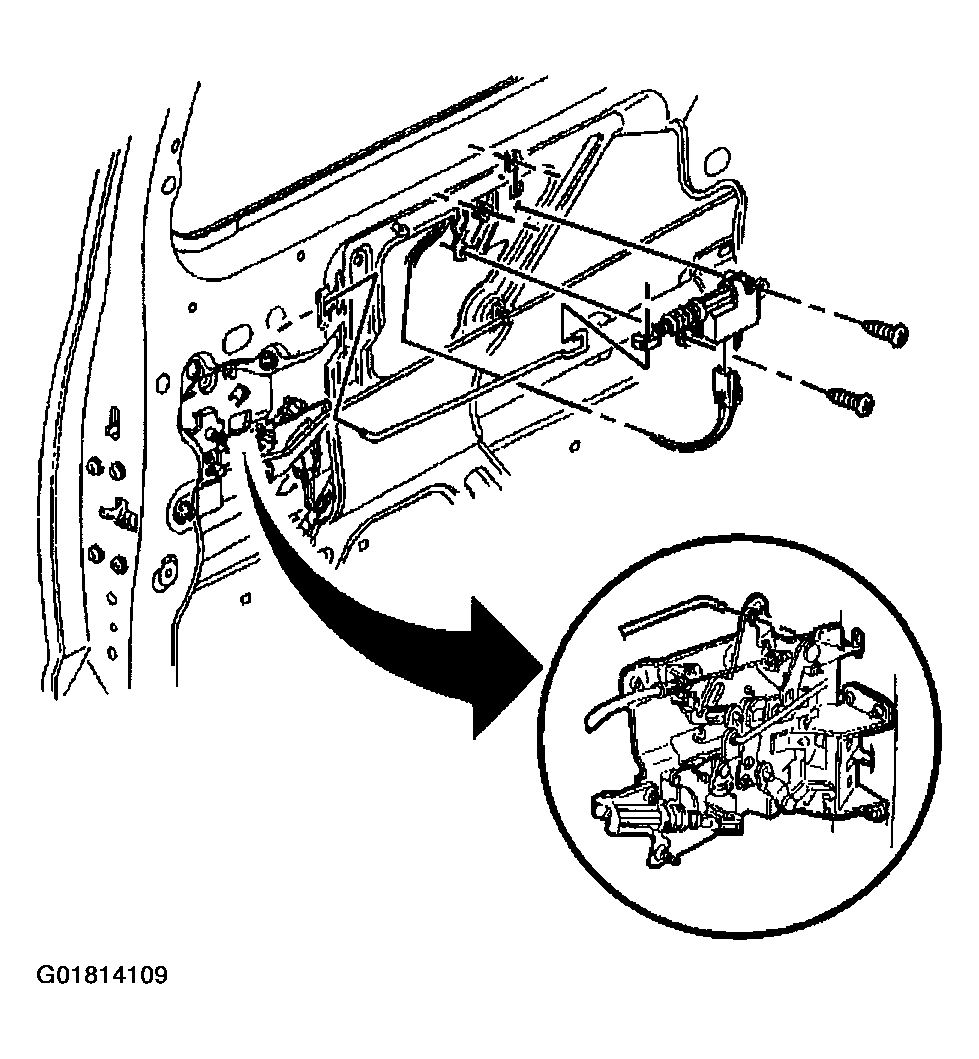

    Fig 1: Removing Powersliding Door Latch Release Actuator & Screws
    G01814109Courtesy of GENERAL MOTORS CORP.
