Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door lock module. Refer to Door Module Replacement - Front .
  2. Disconnect the front door lock actuator electrical connectors.
  3. Remove the front door outside handle lock rod bracket.
  4. Remove the front door lock actuator screws.

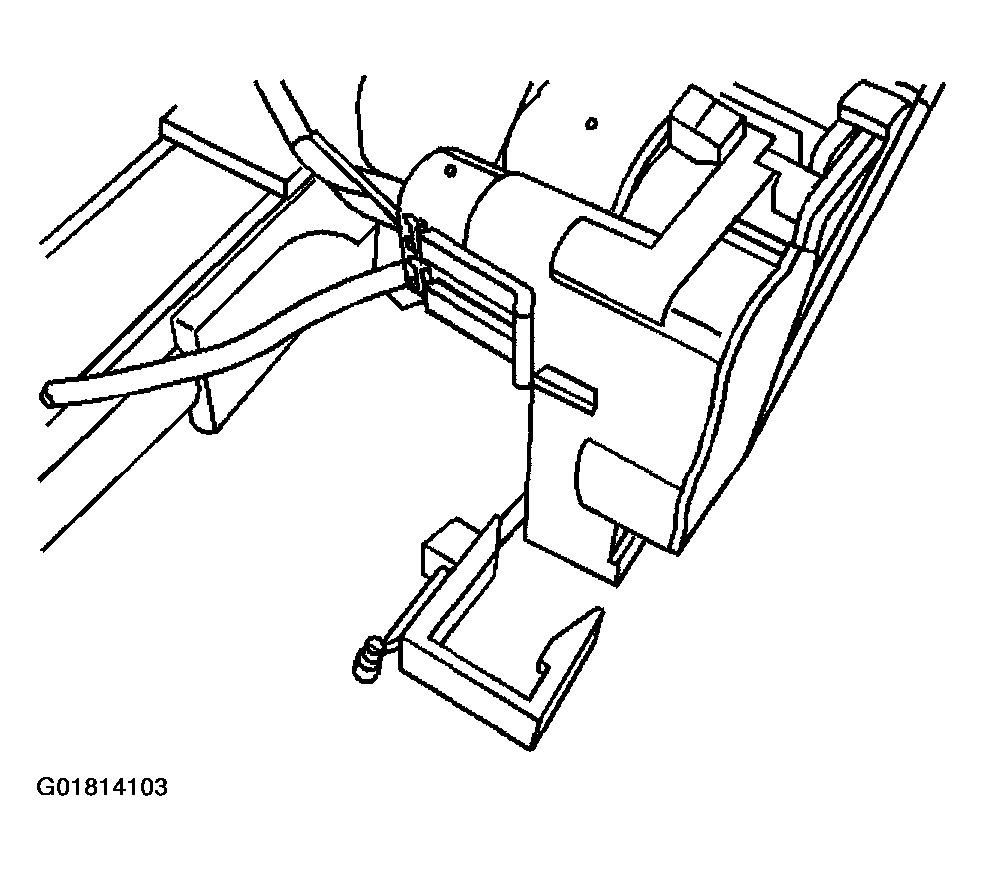

    Fig 1: Removing Front Door Outside Handle Lock Rod & Bracket
    G01814103Courtesy of GENERAL MOTORS CORP.
  5. Remove the front door lock actuator from the front door lock.

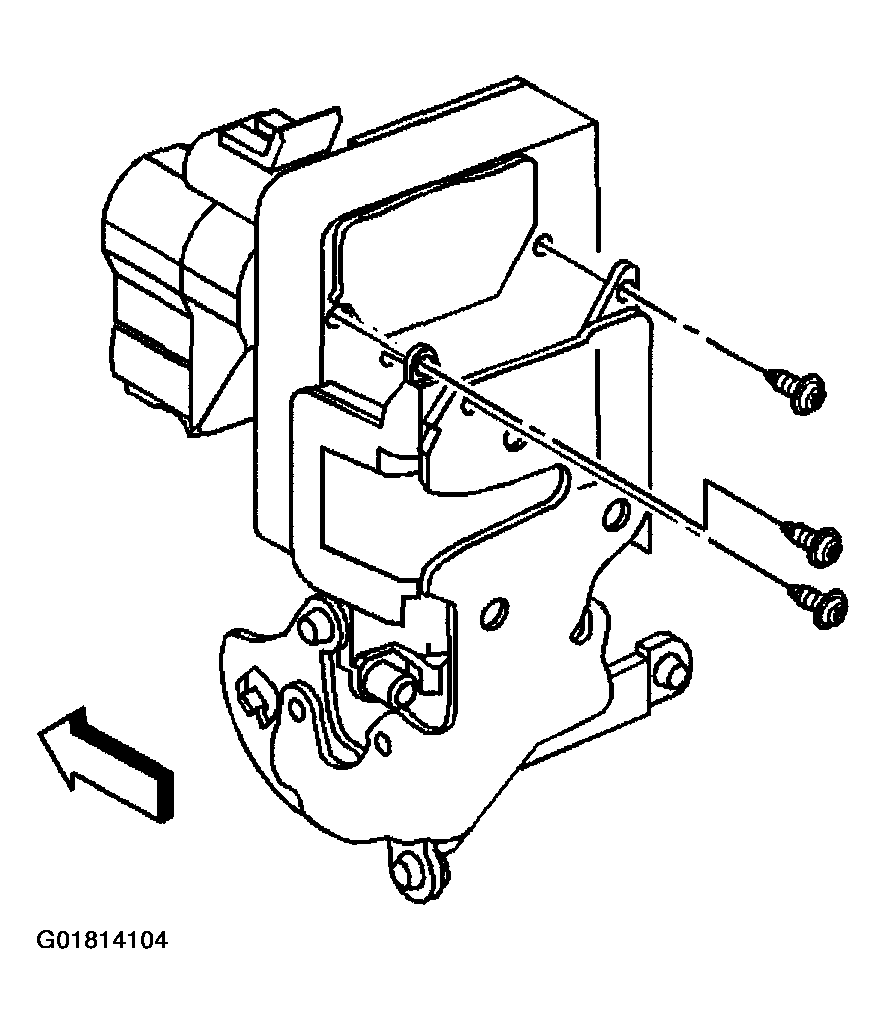

    Fig 2: Removing Front Door Lock Actuator & Screws
    G01814104Courtesy of GENERAL MOTORS CORP.
