Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use J 42506  in order to remove the door inside handle clip
  2. Remove the sliding door inside handle from the door.

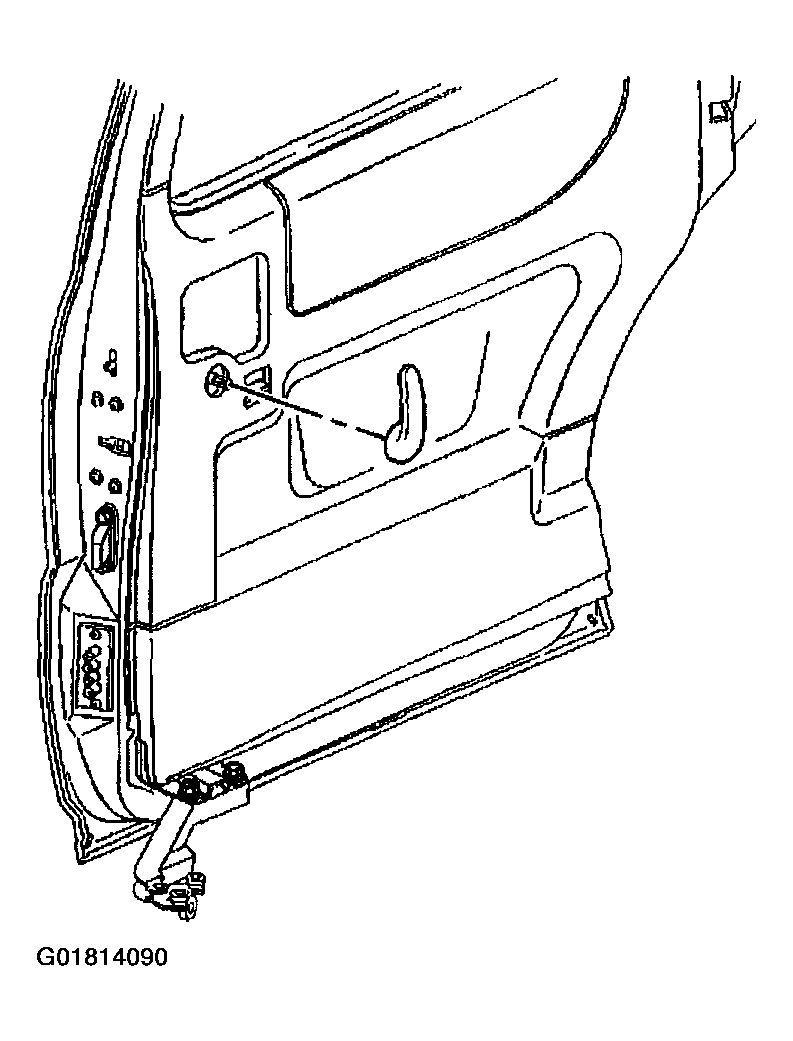

    Fig 1: Removing Sliding Door Inside Handle From Door
    G01814090Courtesy of GENERAL MOTORS CORP.
