Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the following procedure in order to remove the switch mounting plate:
    1. 1.1. Use a flat-bladed tool at the rear of the switch mounting plate in order to release the clip.
    2. 1.2. Lift up in order to unsnap the mounting plate from the front door trim panel.
  2. Disconnect the electrical connectors.

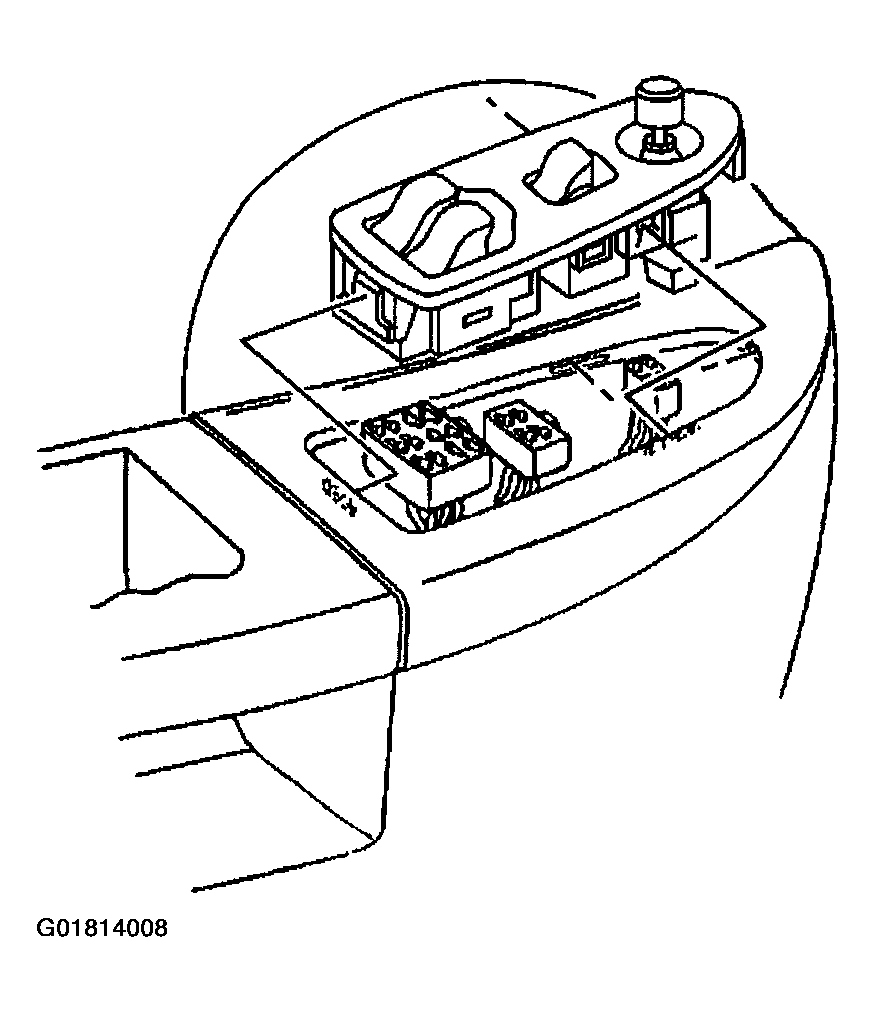

    Fig 1: Removing Switch Mounting Plate (Door Trim Plate)
    G01814008Courtesy of GENERAL MOTORS CORP.
  3. Unsnap the switch from the mounting plate.

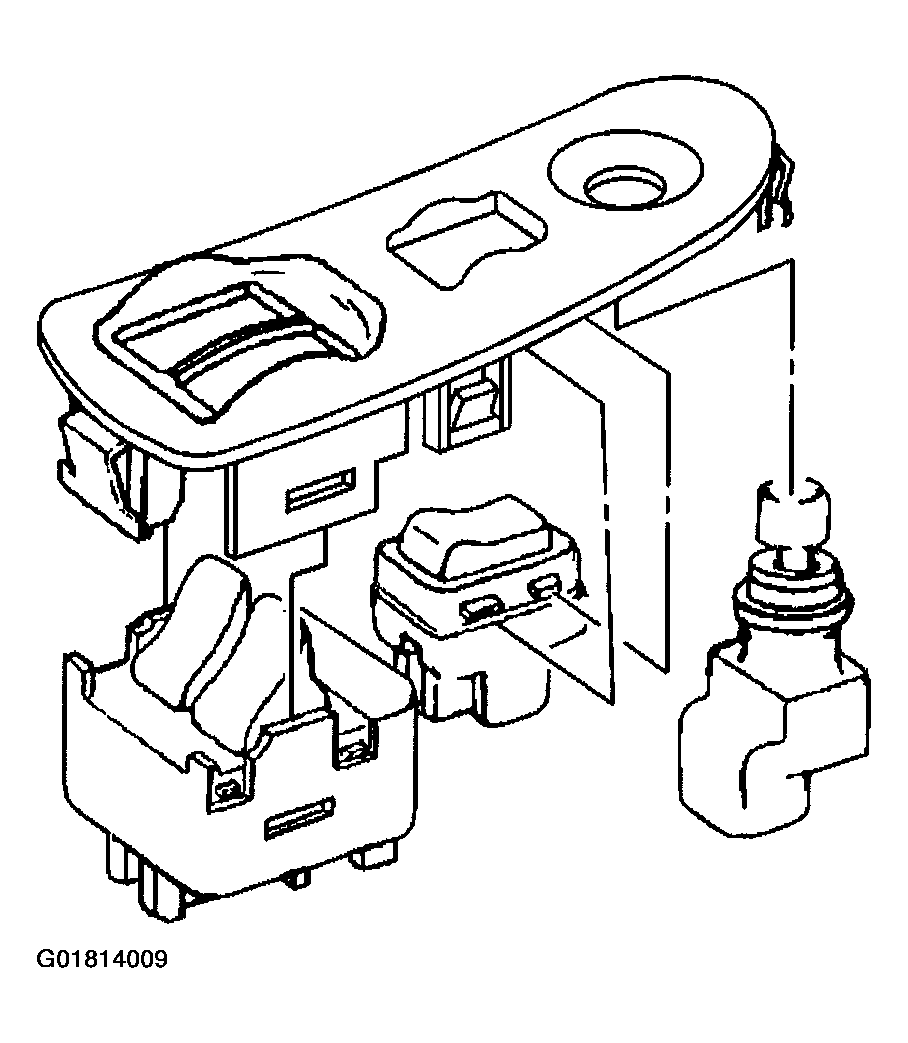

    Fig 2: Disconnecting Electrical Connectors (Door Trim Plate)
    G01814009Courtesy of GENERAL MOTORS CORP.
