Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the front door.
  2. Scribe the location of the existing front door lock striker on the B-pillar with a grease pencil.
  3. Remove the front door lock striker screws.
  4. Remove the front door lock striker from B-pillar.

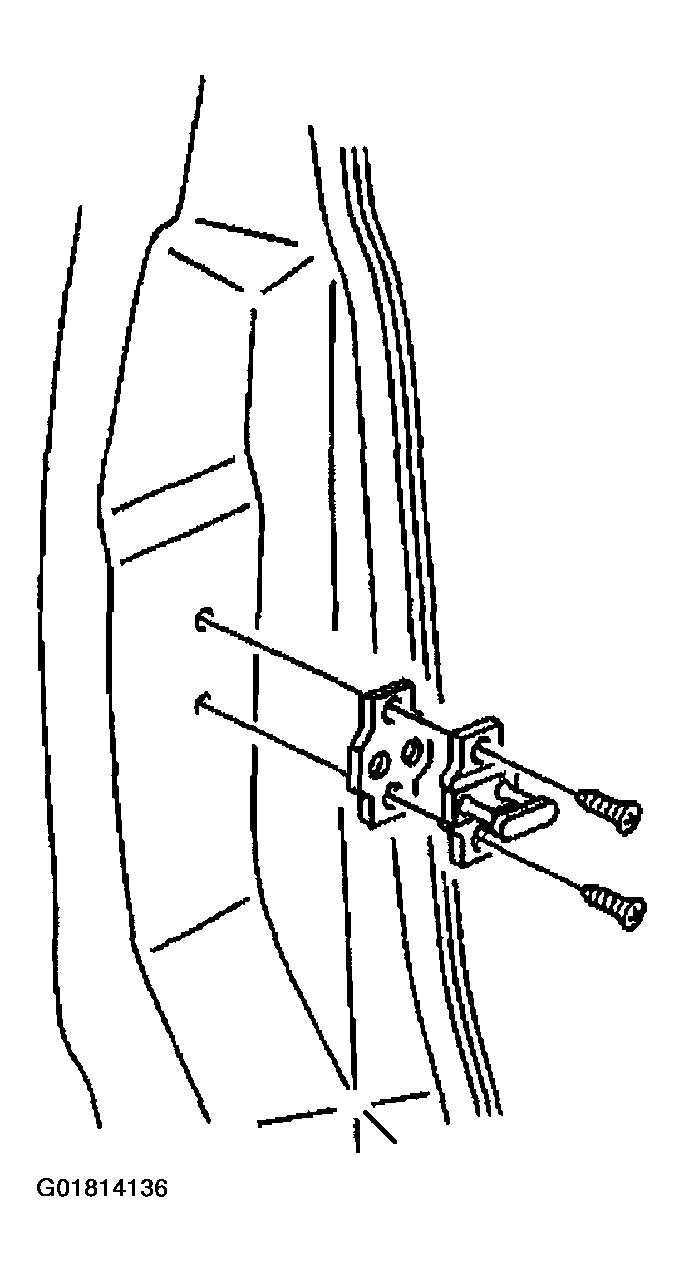

    Fig 1: Removing Front Door Lock Striker & Screws
    G01814136Courtesy of GENERAL MOTORS CORP.
