Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door water deflector. Refer to Water Deflector Replacement - Front Door .
Remove the front door inside handle spring from the retainer clip.

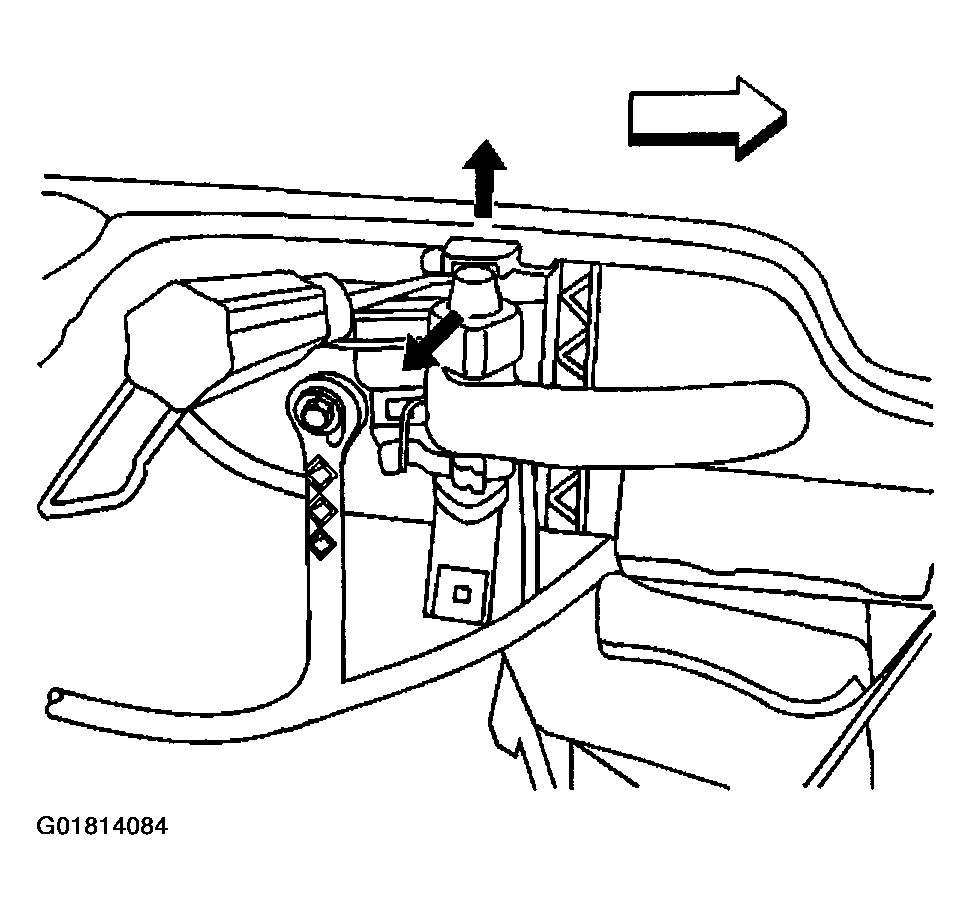

Fig 1: Removing Front Door Inside Handle Spring From Retainer Clip
Courtesy of GENERAL MOTORS CORP.
Using a small flat-bladed tool, remove the front door inside handle from the lock module.

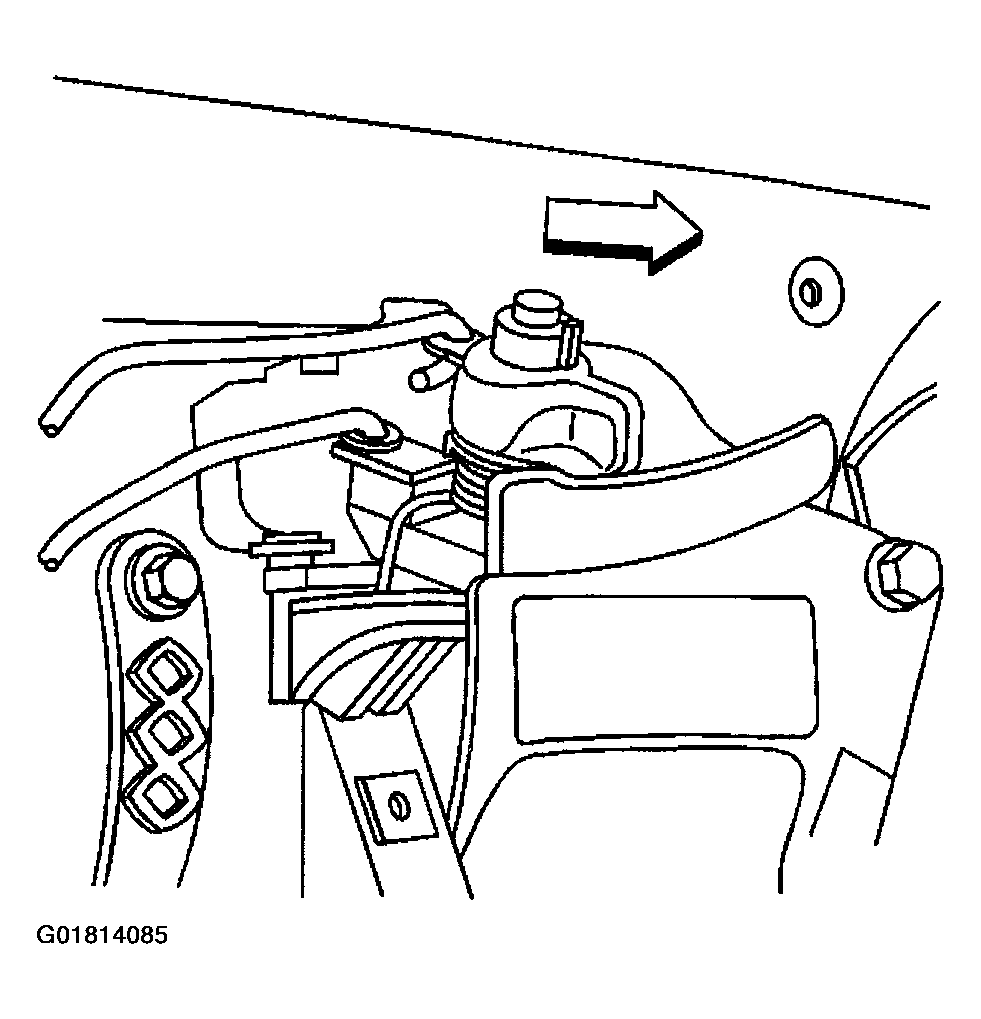

Fig 2: Removing Front Door Inside Handle From Lock Module
Courtesy of GENERAL MOTORS CORP.
Pull back on the door inside handle assembly.

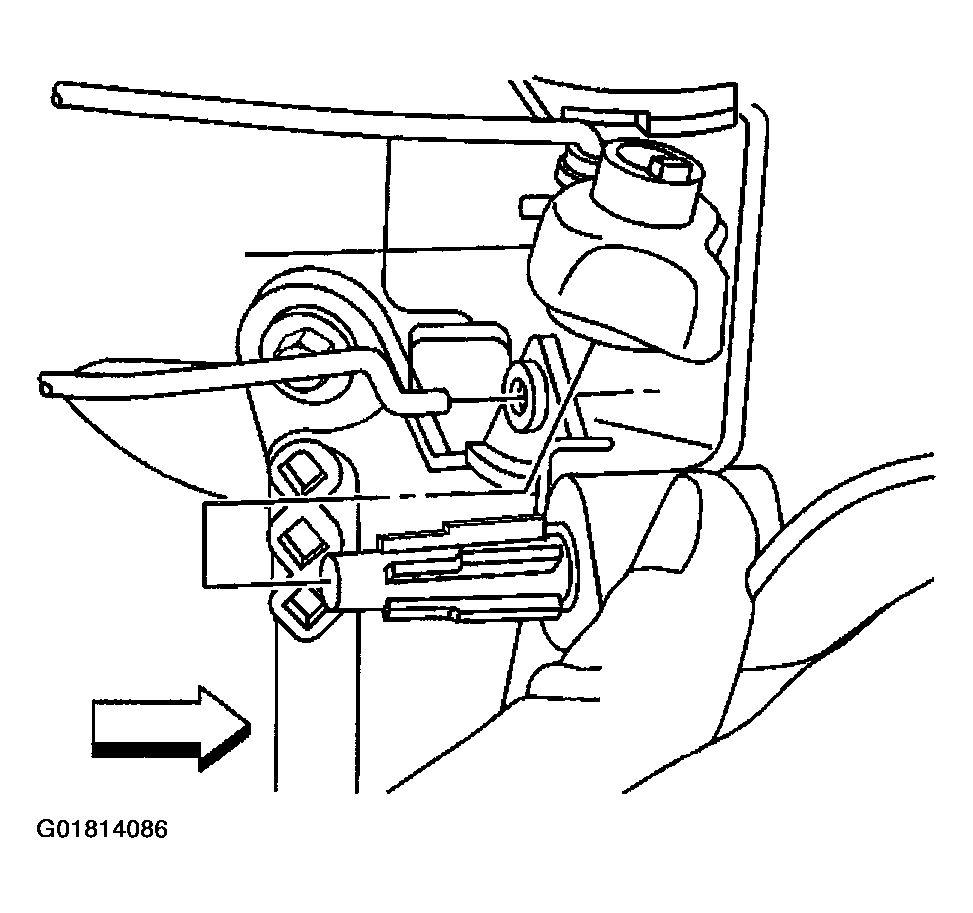

Fig 3: Removing Door Inside Handle Assembly
Courtesy of GENERAL MOTORS CORP.
Separate the upper and lower portions from each other. Slide the upper and lower portions off the lock rods.

Fig 4: Separating Upper & Lower Portions
Courtesy of GENERAL MOTORS CORP.
