Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door half way.
  2. Remove the bolt for the sliding door catch with the reinforcement channel from the sliding door lower track.
  3. Remove the sliding door catch with the reinforcement channel from the sliding door lower track.

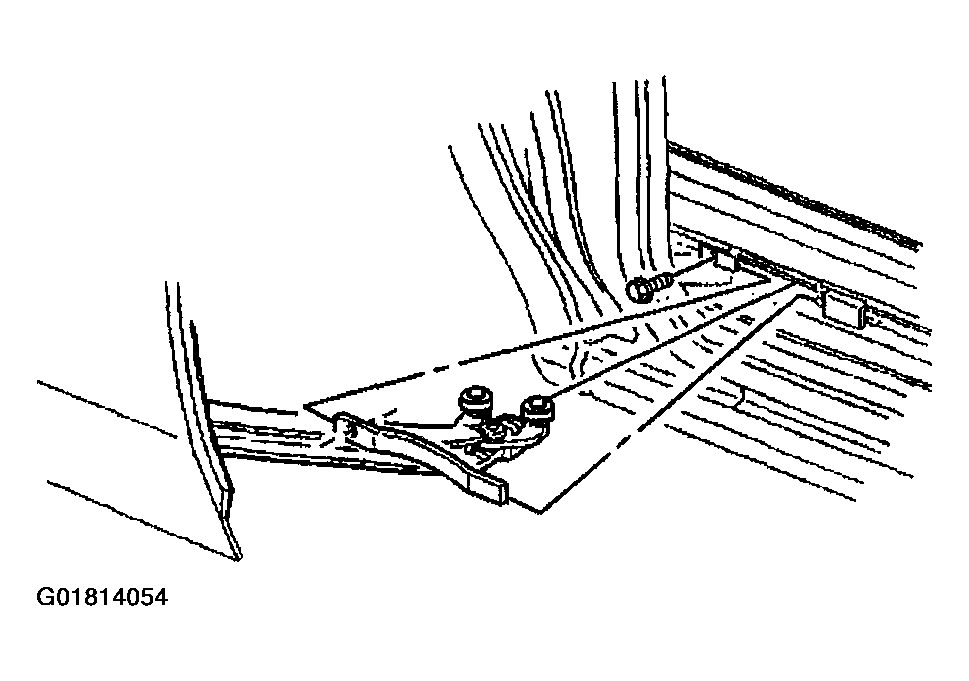

    Fig 1: Removing Bolt & Sliding Door Catch
    G01814054Courtesy of GENERAL MOTORS CORP.
