Door Adjustment - Front (Door Side): Notes

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the (13 mm) bolts from the upper and lower door side hinge.

    DO NOT remove the bolts.

  2. Adjust the door as needed by repositioning the door in the following manner:
    • Up or down
    • In or out

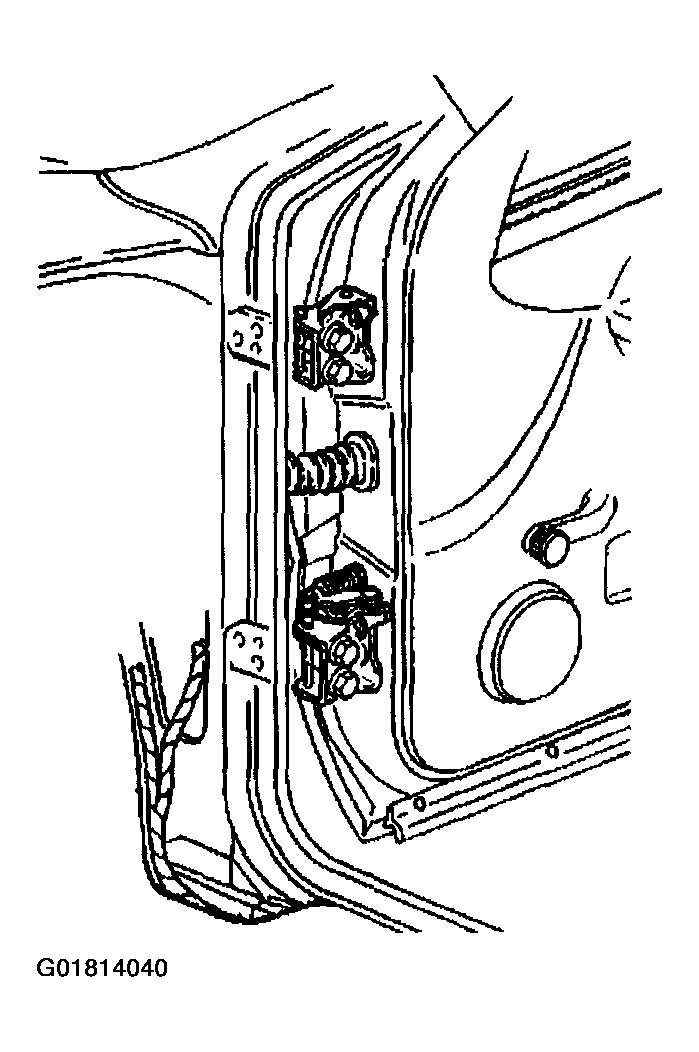

      Fig 1: Removing Bolts, Upper & Lower Door Side Hinge
      G01814040Courtesy of GENERAL MOTORS CORP.
