Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear tail lamp. Refer to TAIL LAMP REPLACEMENT .
  2. Remove the sliding door center track cover rear screw.
  3. Open the sliding door.

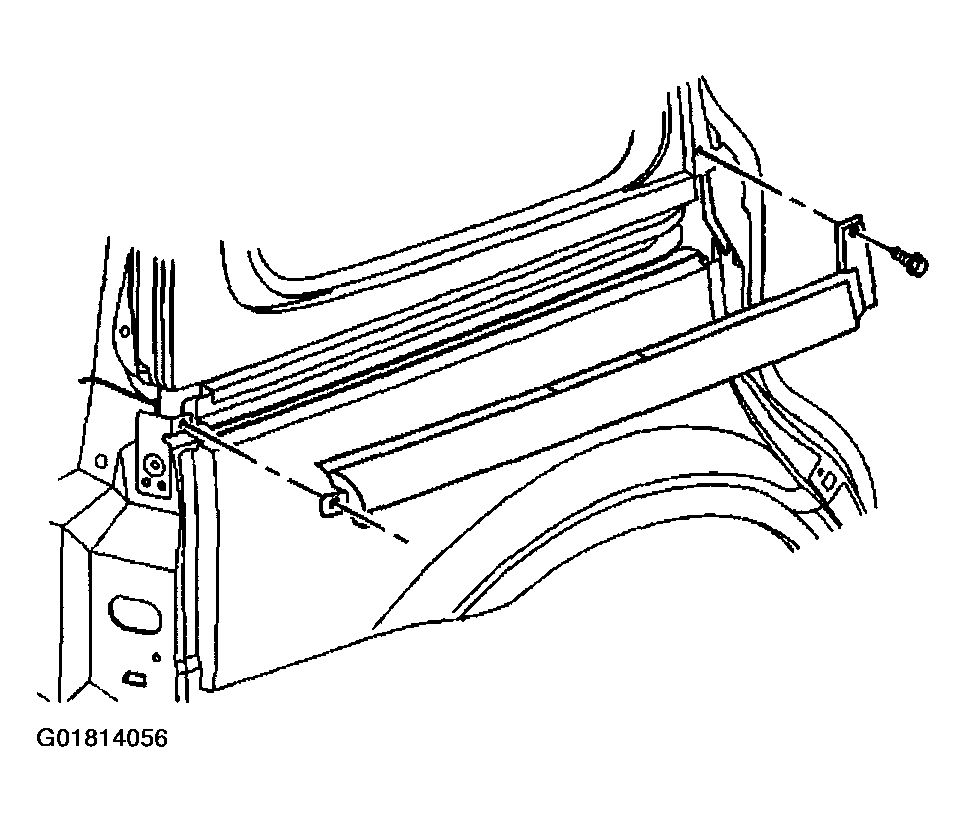

    Fig 1: Sliding Door Center Track Cover Rear & Screw
    G01814056Courtesy of GENERAL MOTORS CORP.
  4. Remove the sliding door center track bracket screws.
  5. Remove the sliding door center track bracket from the vehicle.

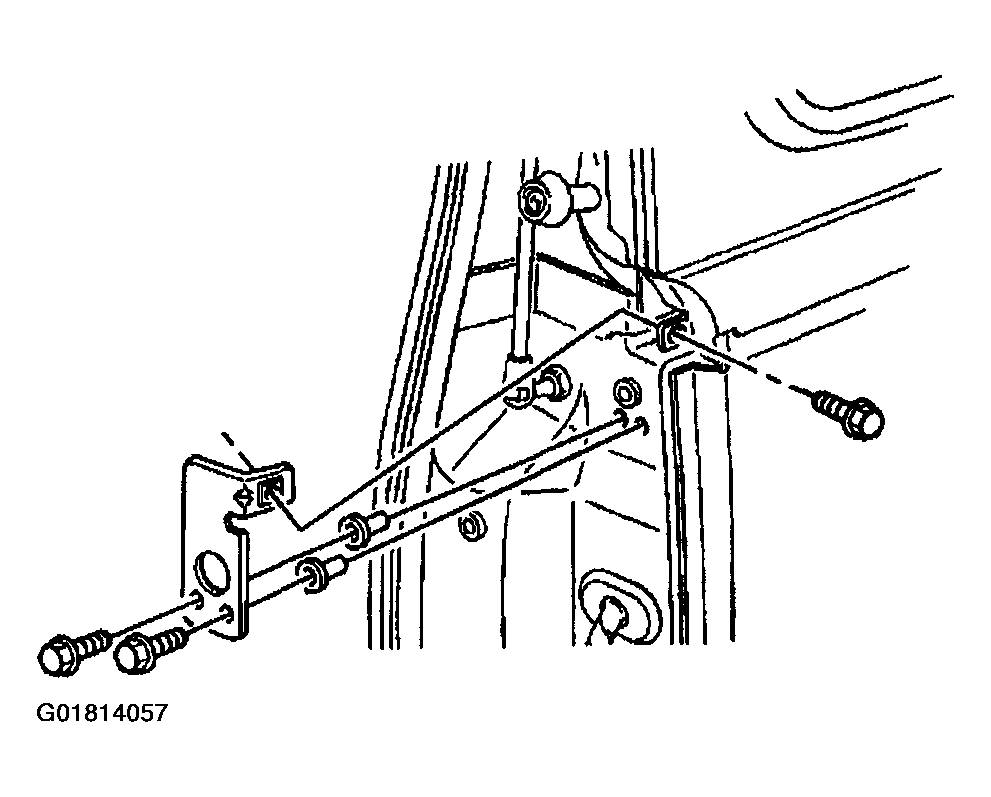

    Fig 2: Removing Sliding Door Center Track Bracket & Screws
    G01814057Courtesy of GENERAL MOTORS CORP.
