Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to BATTERY DISCONNECT CAUTION .
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PRO .
  2. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  3. Release the cable tension:
    1. 3.1. Push the tensioning nut inward.
    2. 3.2. Pull the rear cable until the cable is slack.

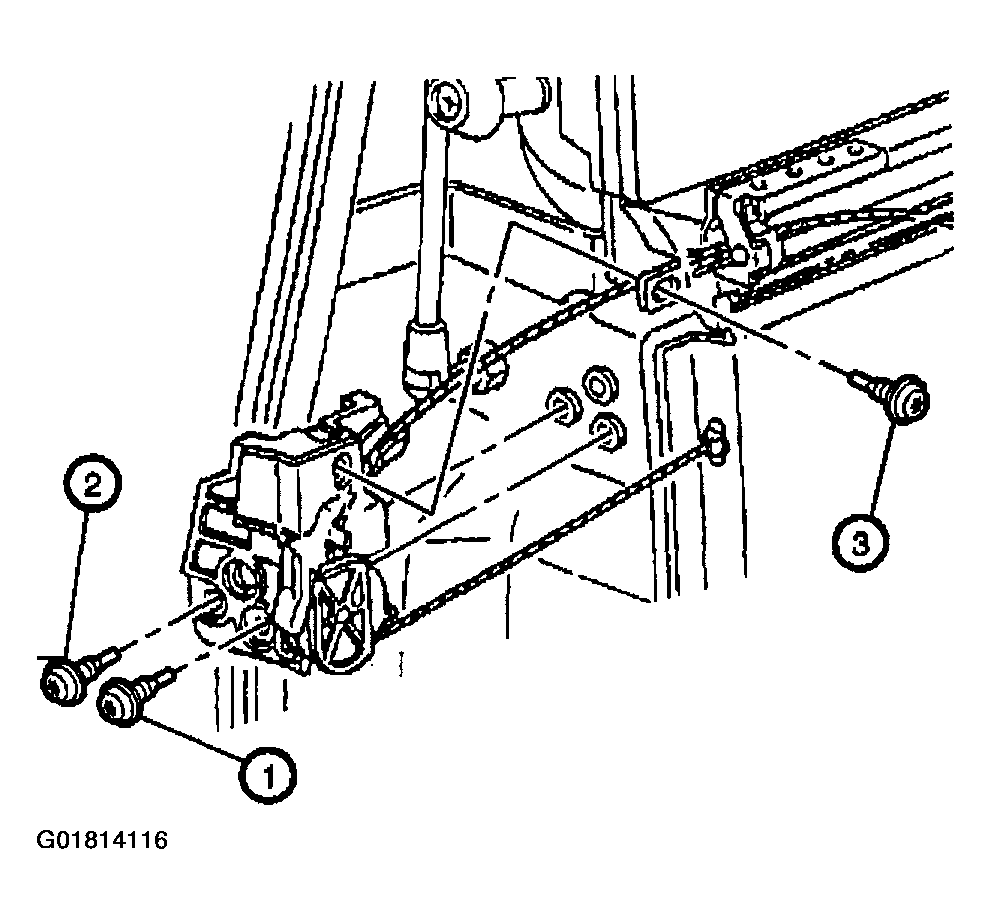

    Fig 1: Removing Right Rear Quarter Lower Trim Panel & Screws (Cable Guide Bracket)
    G01814116Courtesy of GENERAL MOTORS CORP.
  4. Visually confirm that the cables are slack by observing that the center white dots are below the white indicator bands.
  5. Remove the right rear tail lamp assembly. Refer to TAIL LAMP REPLACEMENT .
  6. Remove the cable guide bracket screws.
  7. Remove the cable guide bracket from the vehicle.
  8. Slide the guide bracket pulley cover off of the pulley and lift the rear cable off of the guide bracket pulley.
