Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Pull the alarm (4) from power sliding door actuator motor, separating the hook and loop retainer.
  3. Remove the alarm electrical connector.

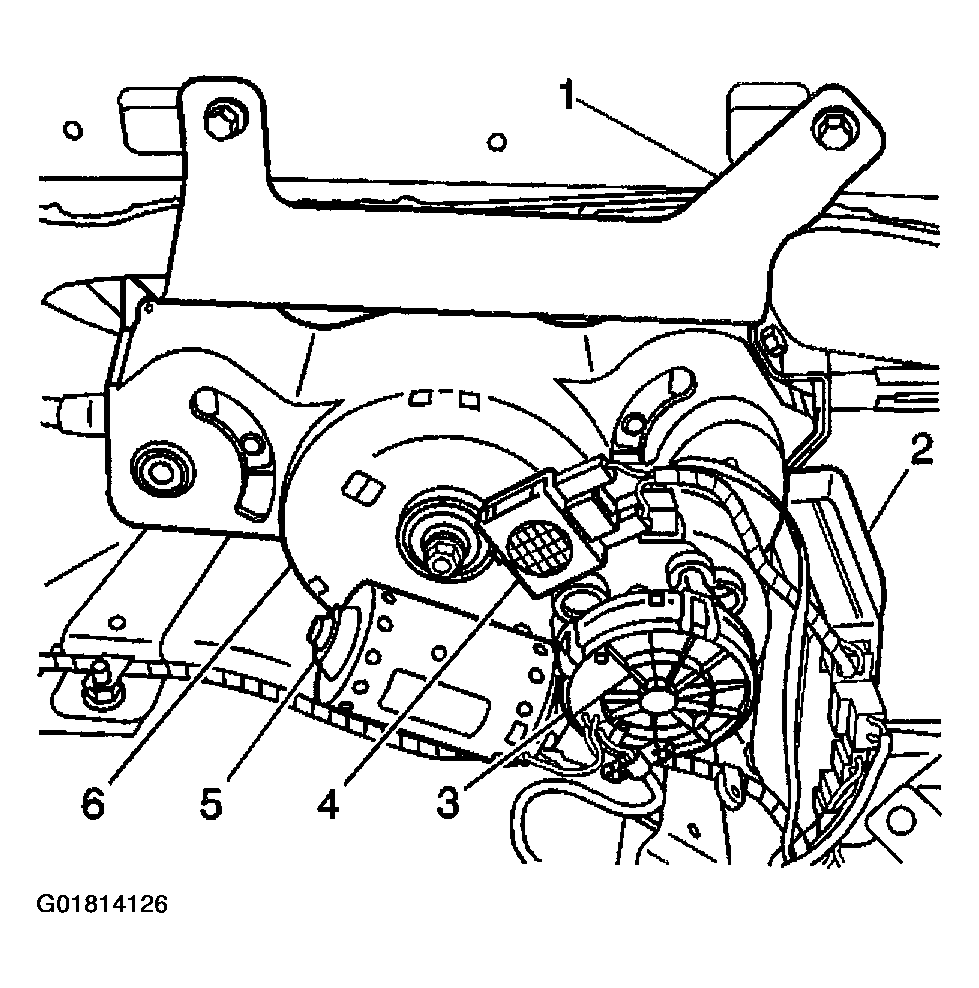

    Fig 1: Removing Alarm Electrical Connector
    G01814126Courtesy of GENERAL MOTORS CORP.
