Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right rear quarter lower trim panel. Refer to TRIM PANEL REPLACEMENT - REAR QUARTER LOWER .
  2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module (2).
  3. Pull the PSD actuator control module (2) inboard in order to unhook the control module from the actuator motor.

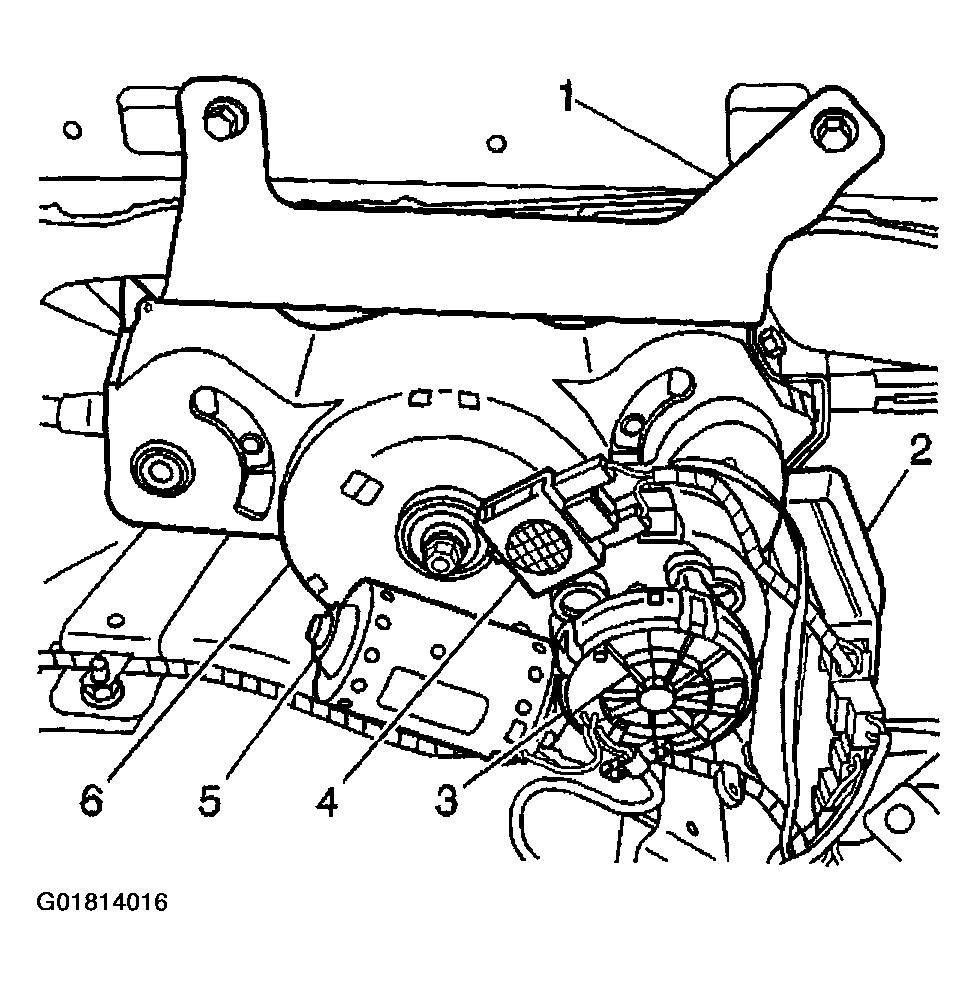

    Fig 1: Removing PSD Actuator Control Module (With RPO E58)
    G01814016Courtesy of GENERAL MOTORS CORP.
