Power Sliding Door (PSD) Inoperative from One Switch

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

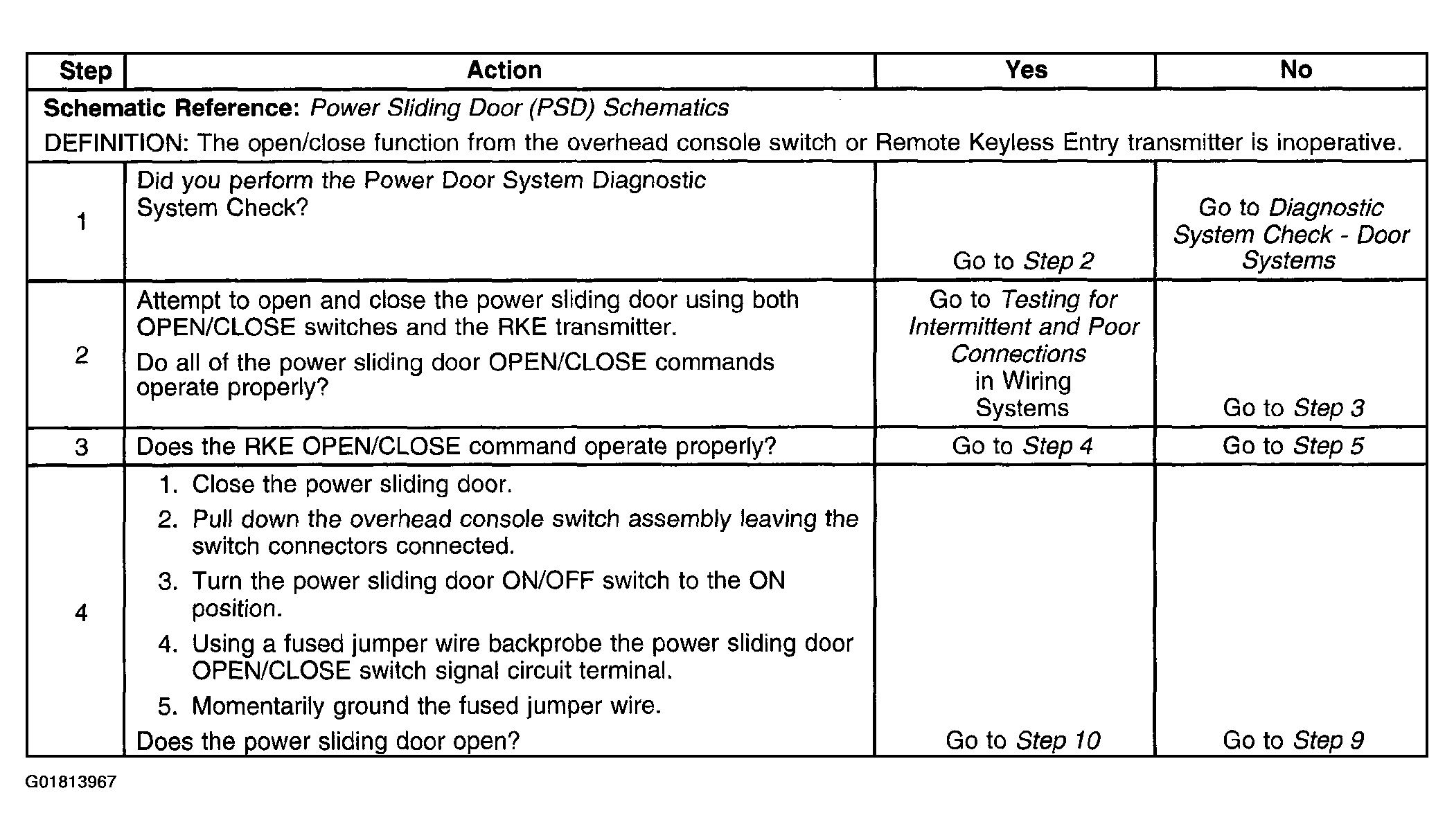

Fig 1: Power Sliding Door (PSD) Inoperative From One Switch (1 Of 2)
G01813967Courtesy of GENERAL MOTORS CORP.

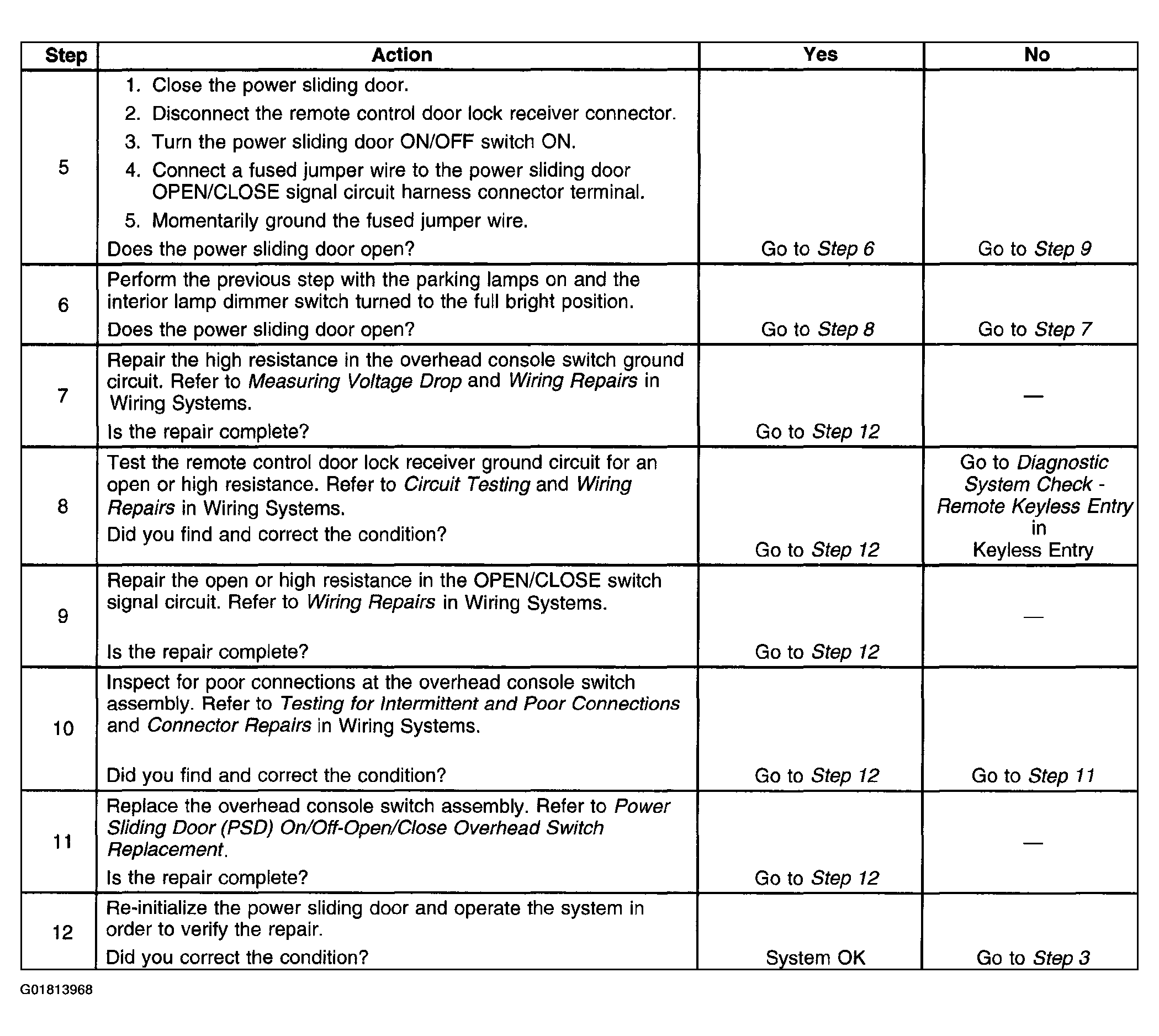

Fig 2: Power Sliding Door (PSD) Inoperative From One Switch (2 Of 2)
G01813968Courtesy of GENERAL MOTORS CORP.
