Power Sliding Door (PSD) Alarm Malfunction

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

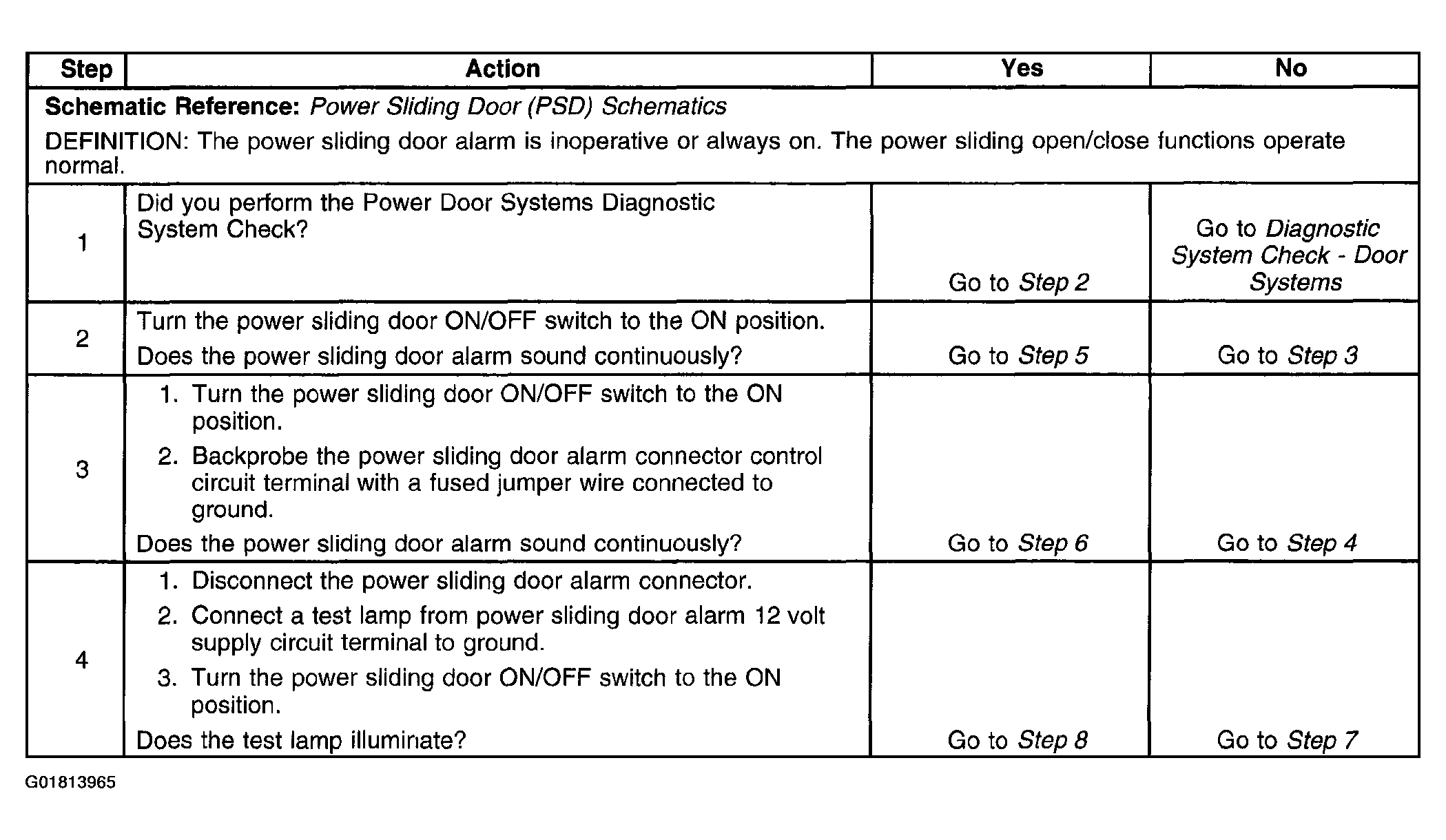

Fig 1: Power Sliding Door (PSD) Alarm Malfunction (1 Of 2)
G01813965Courtesy of GENERAL MOTORS CORP.

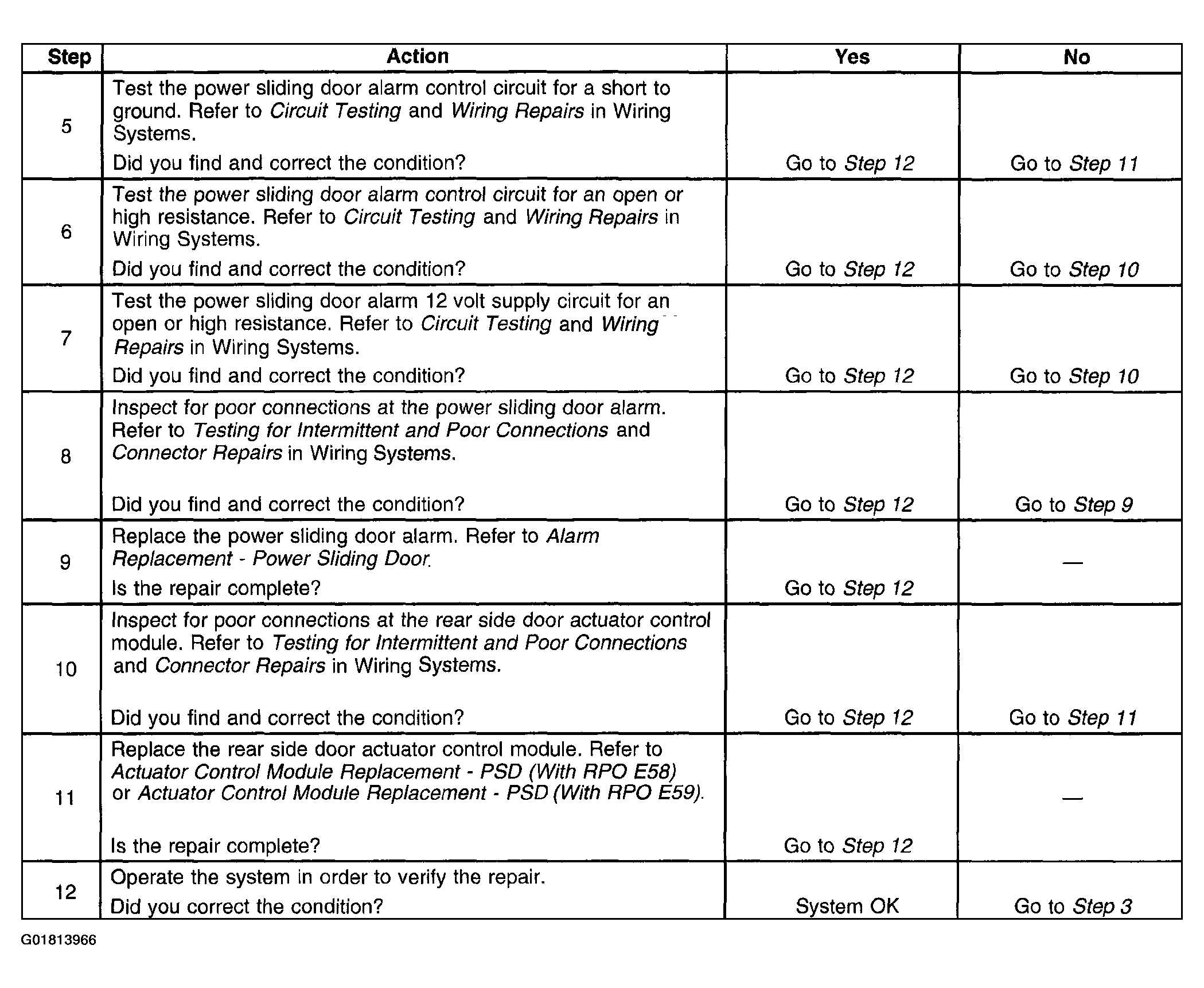

Fig 2: Power Sliding Door (PSD) Alarm Malfunction (2 Of 2)
G01813966Courtesy of GENERAL MOTORS CORP.
