Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. 6. This step tests the integrity of both the mirror control circuits and the power mirror switch. If both power mirrors are inoperative on one or more axis, begin testing by disconnecting one of the power mirrors, if an open circuit is detected and repaired for that power mirror, repeat step 6 for the other power mirror.
  2. 7. This step tests the integrity of the battery positive voltage circuit not the fuse.

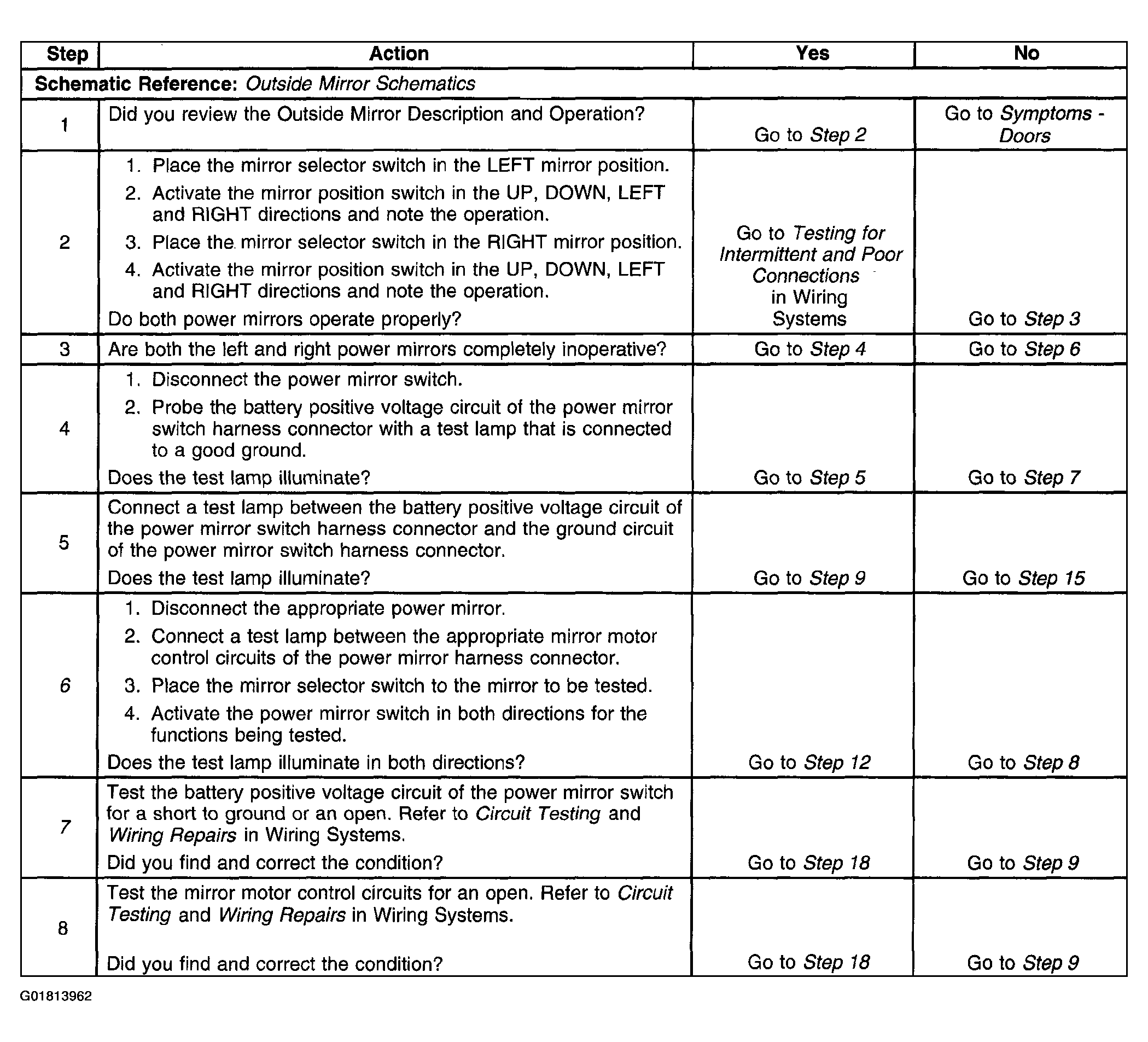

    Fig 1: Power Mirrors Inoperative (1 Of 2)
    G01813962Courtesy of GENERAL MOTORS CORP.

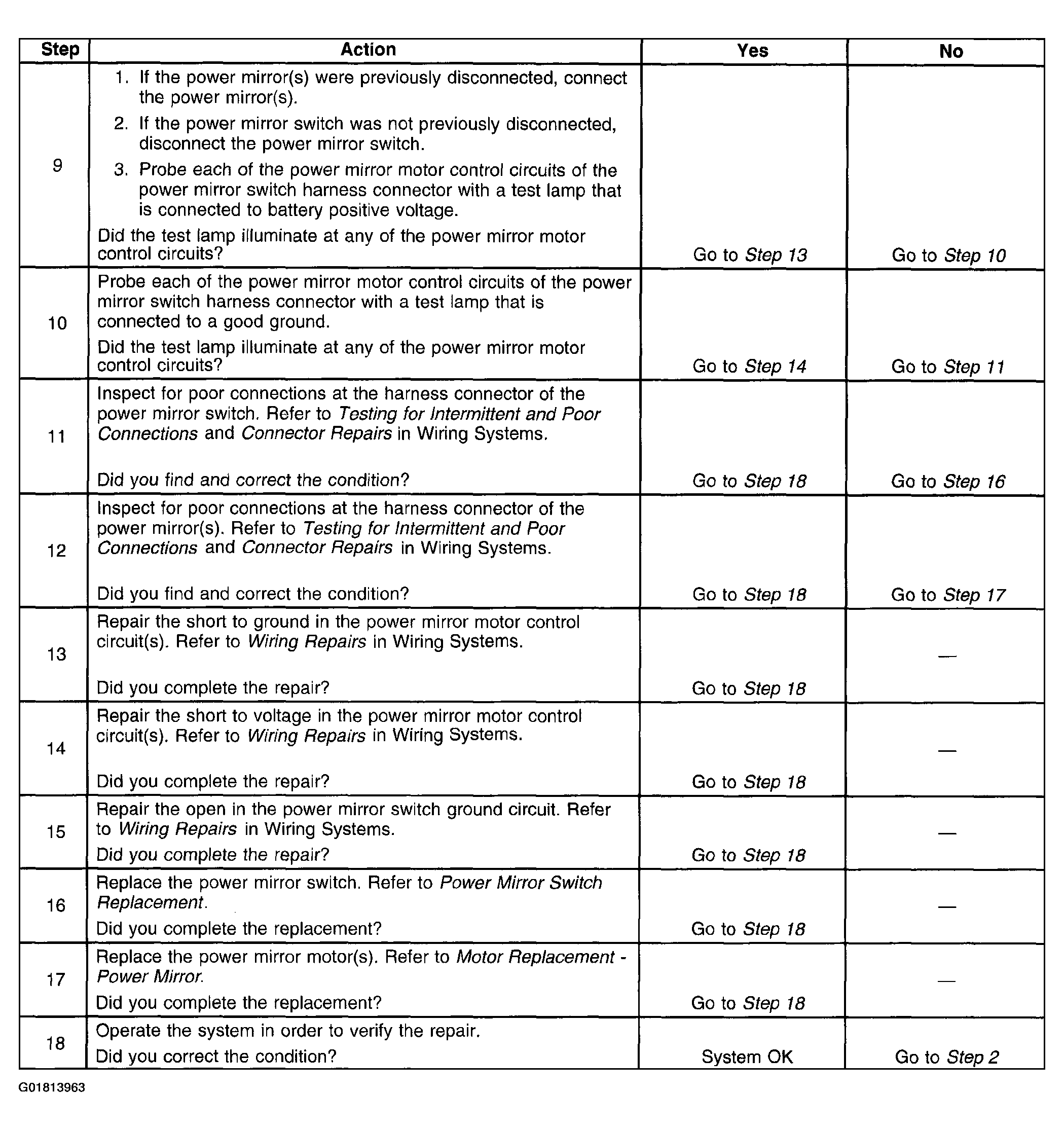

    Fig 2: Power Mirrors Inoperative (2 Of 2)
    G01813963Courtesy of GENERAL MOTORS CORP.
