Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The number(s) below refer to the step number(s) on the diagnostic table.

2. Tests for a short to ground in the detent switch circuit from the B-piliar to the module.
3. Tests the detent switch open position for continuity to ground.
4. Tests the detent switch ajar position.
5. Tests the detent switch for continuity to ground between the ajar and latch positions.
7. Tests the detent switch signal circuit from the B-pillar to the module for continuity.

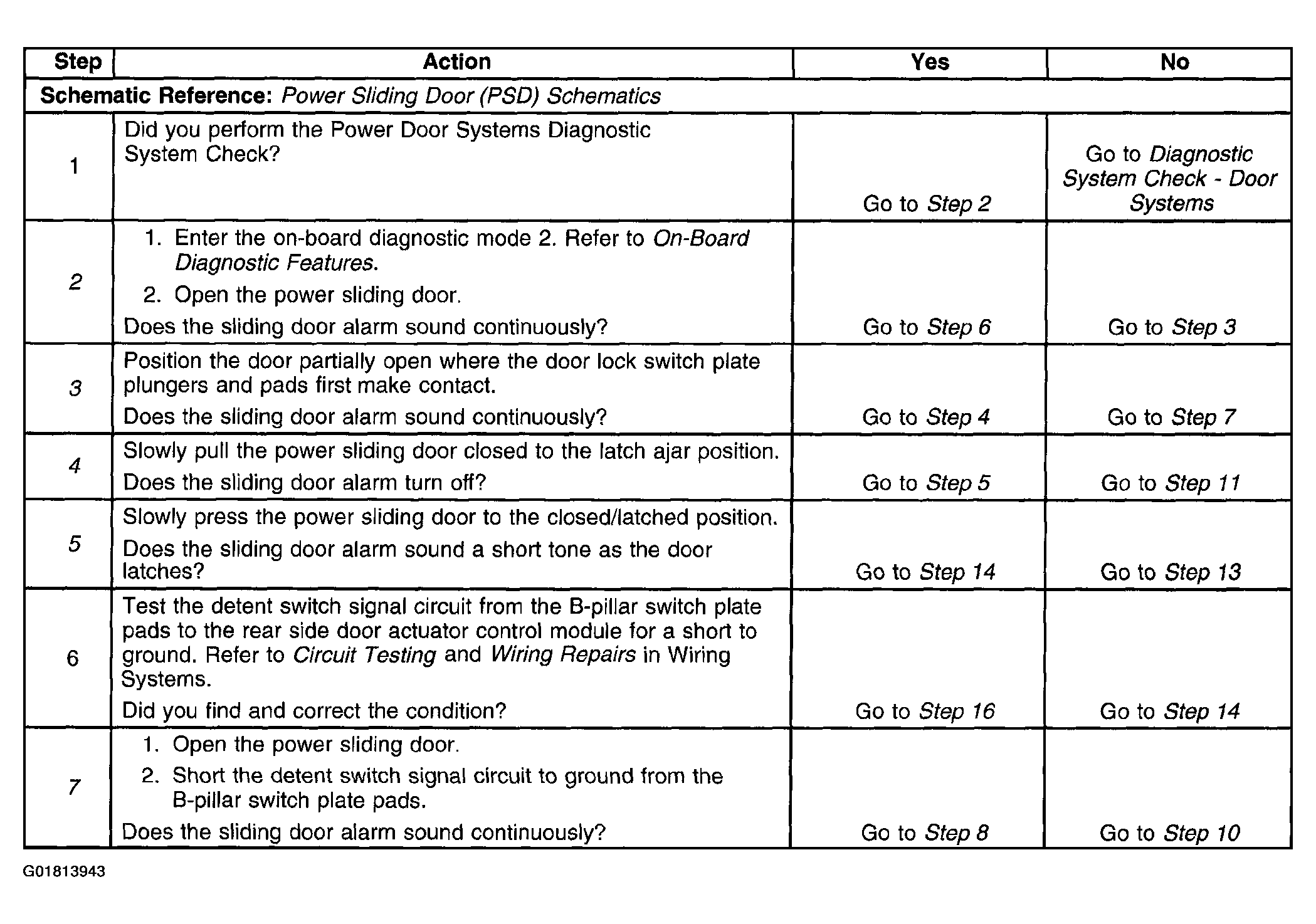

Fig 1: DTC 023 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

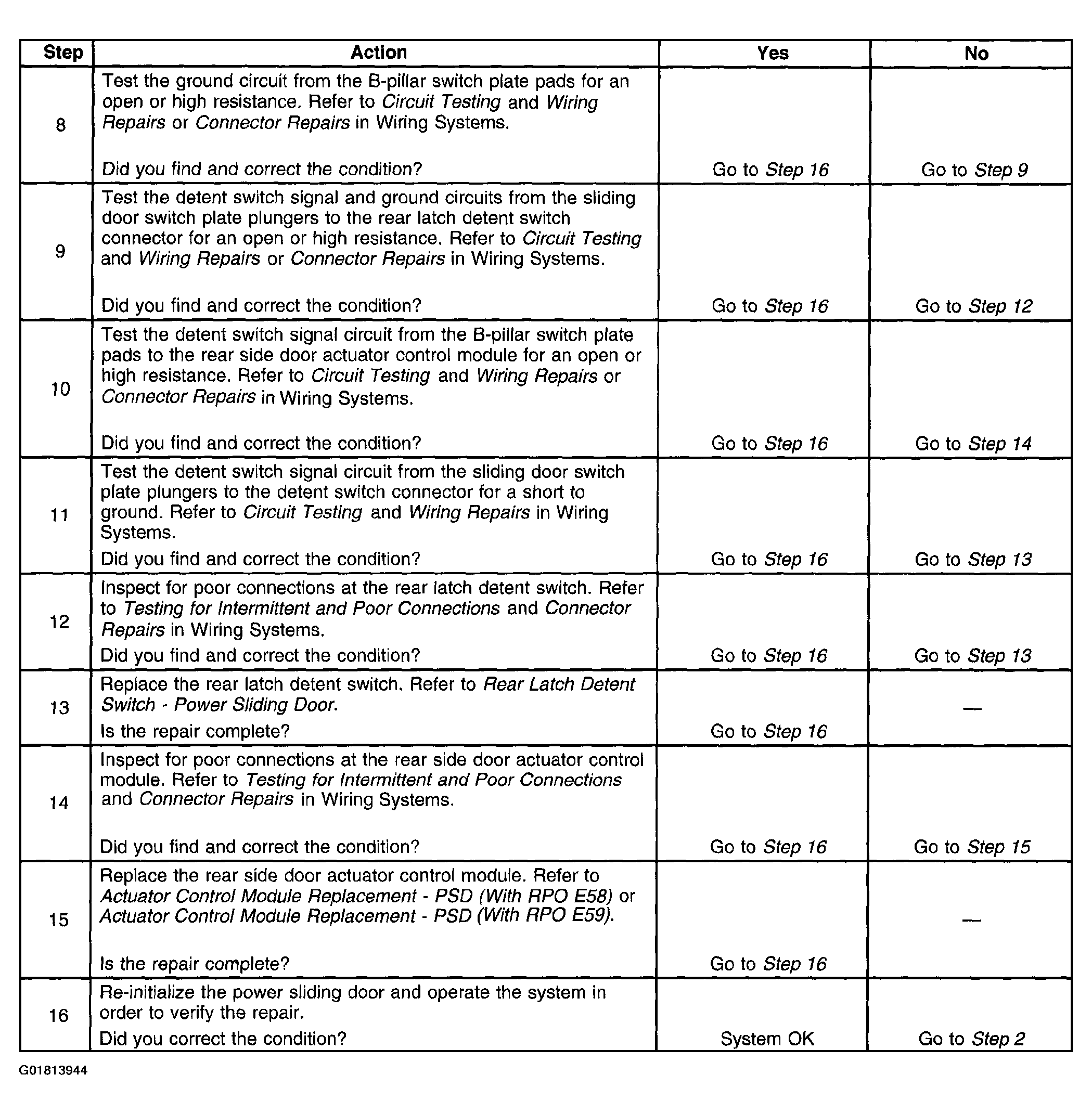

Fig 2: DTC 023 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
