Test Description
WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

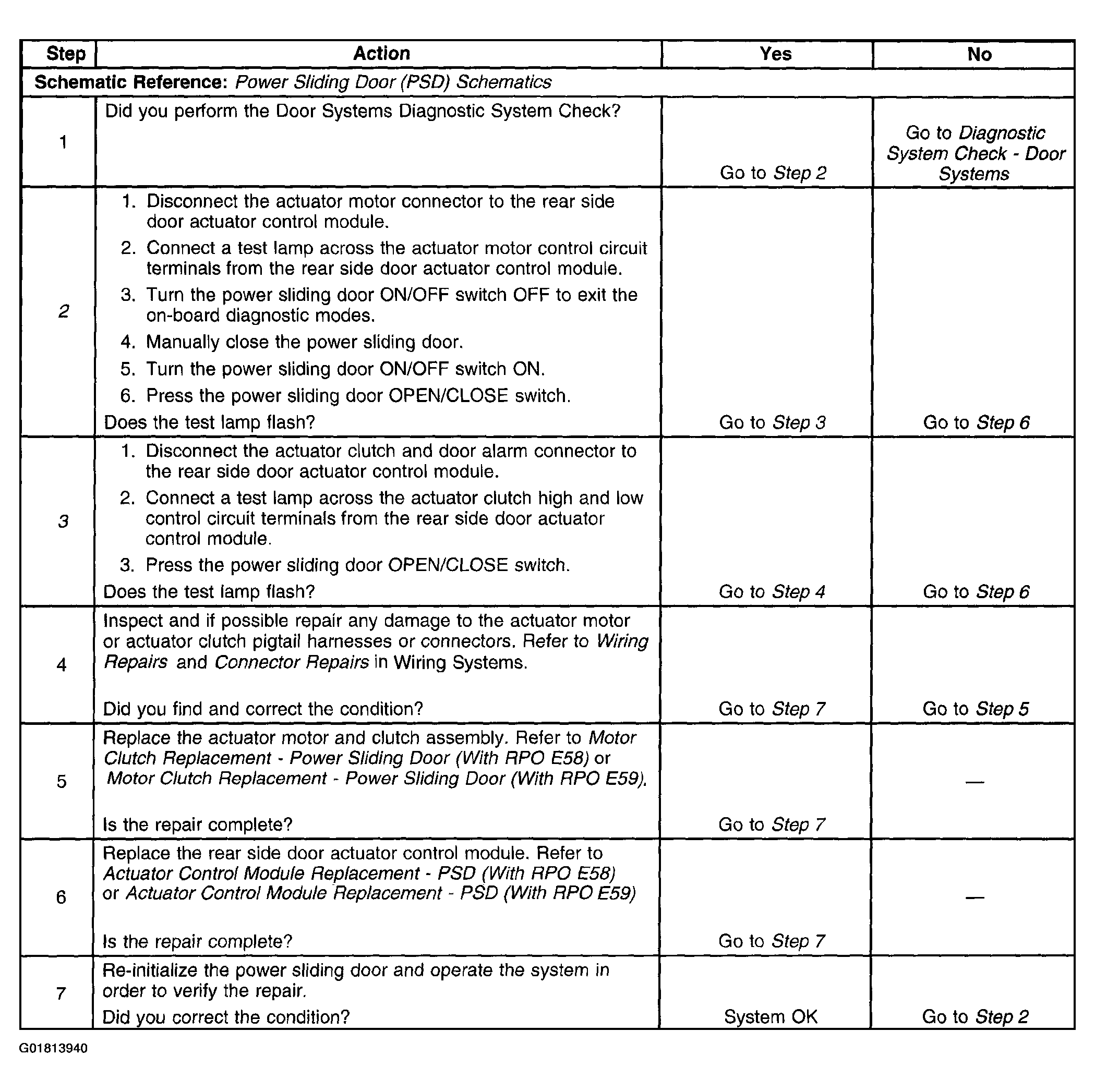

The number(s) below refer to the step number(s) on the diagnostic table.
- 2. Tests the rear side door actuator control modules ability to provide power and ground to operate the power sliding door actuator motor.
- 3. Tests the rear side door actuator control modules ability to provide power and ground to energize the power sliding door actuator clutch.
