Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Open the liftgate.
  3. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  4. Remove the rear speakers from the liftgate. Refer to SPEAKER REPLACEMENT - REAR .
  5. Remove the high mounted stop lamp. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT .
  6. Remove the license plate lamps. Refer to LICENSE LAMP REPLACEMENT .
  7. Disconnect the liftgate latch electrical connectors.
  8. Remove the rear washer hose. Refer to WASHER NOZZLE REPLACEMENT - REAR .
  9. Remove the rear corner upper garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER .
  10. Disconnect liftgate wiring harness connectors (2) from the rear body wiring harness (3).

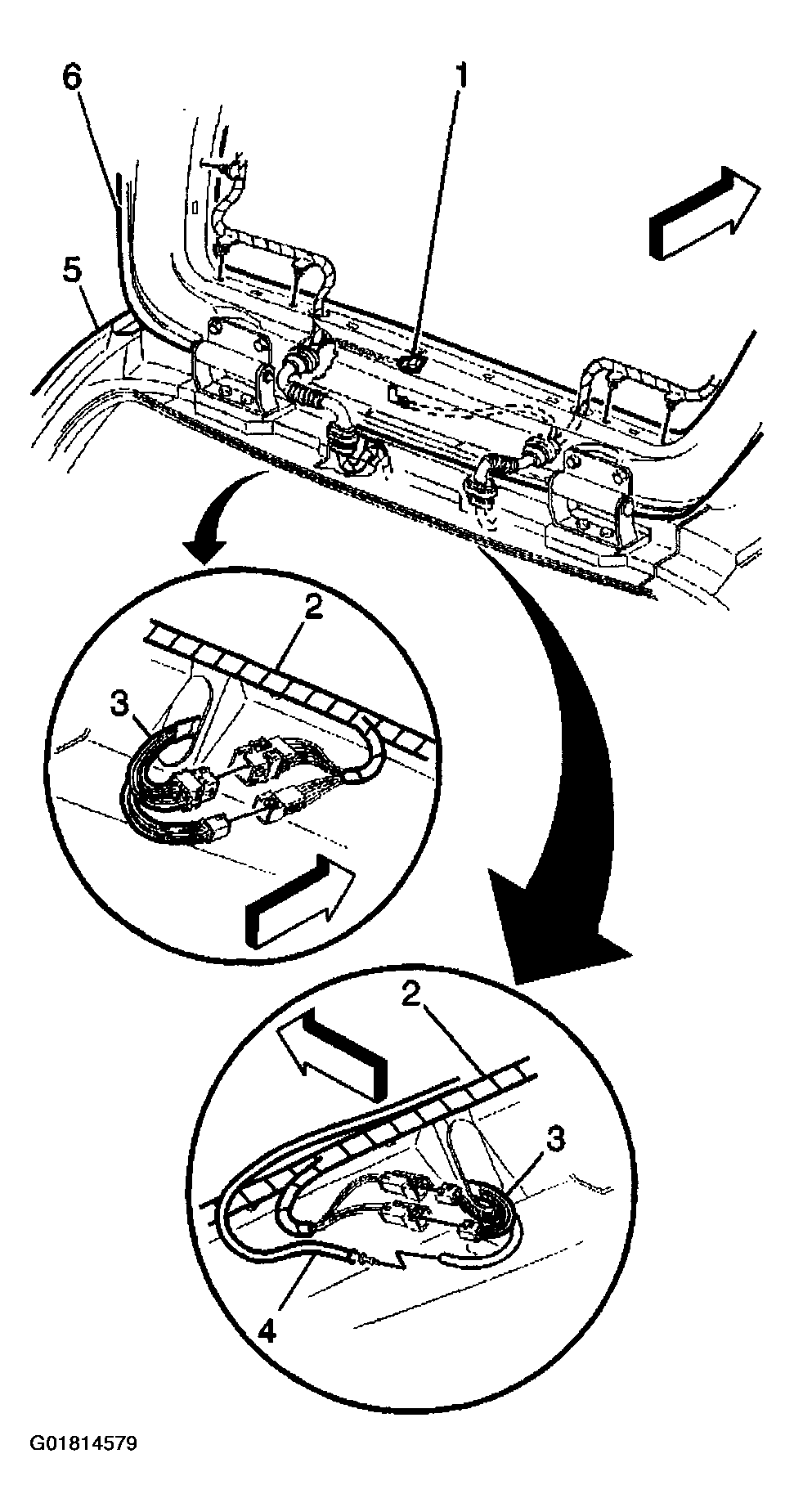

    Fig 1: Disconnecting Liftgate Wiring Harness Connectors From Rear Body Wiring Harness
    G01814579Courtesy of GENERAL MOTORS CORP.
  11. Disconnect the rear wiper motor electrical connector (7).
  12. Disconnect the rear window defogger electrical connectors (3).
  13. Release the wiring harness retainers from the liftgate.
  14. Remove the wiring harness from the liftgate.

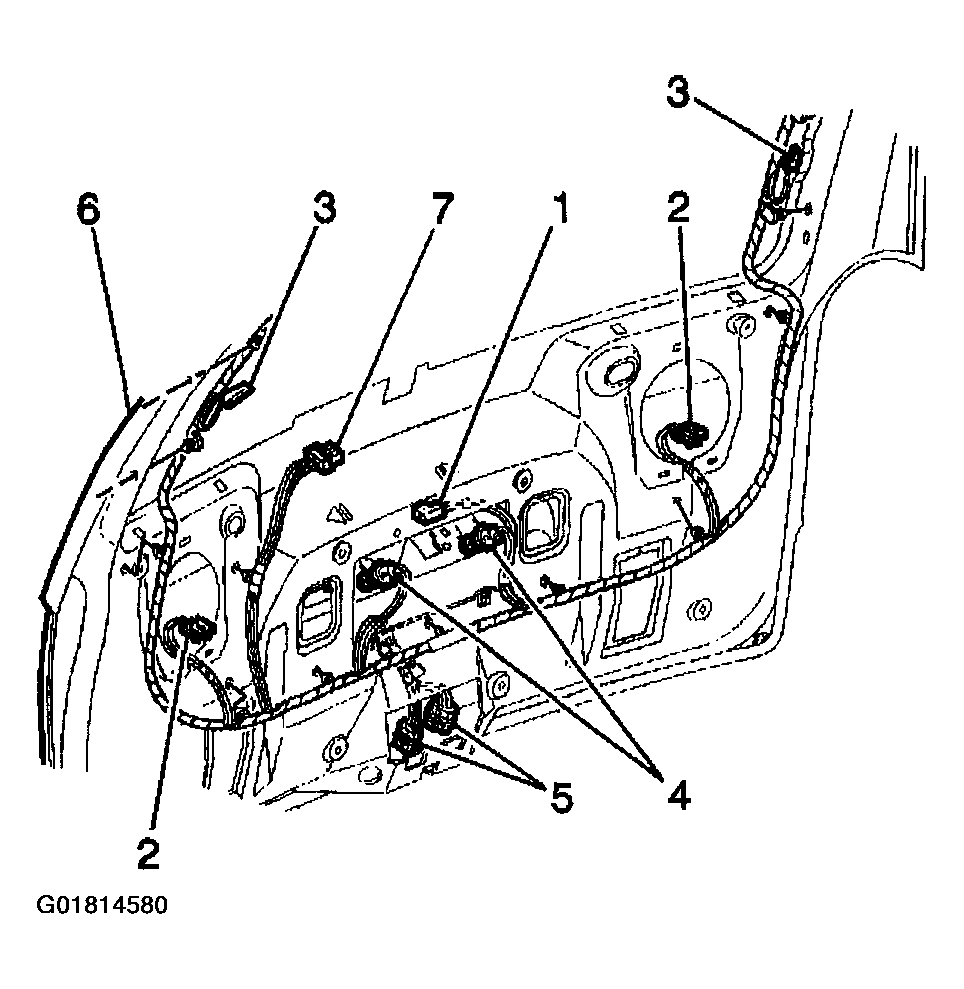

    Fig 2: Disconnecting Rear Wiper Motor Electrical Connector & Rear Window Defogger Electrical Connector
    G01814580Courtesy of GENERAL MOTORS CORP.
