Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Route the wiring harness in the liftgate.
  2. Install the wiring harness retainers into the liftgate.
  3. Connect the rear window defogger electrical connectors (3)
  4. Connect the rear wiper motor electrical connector (7).

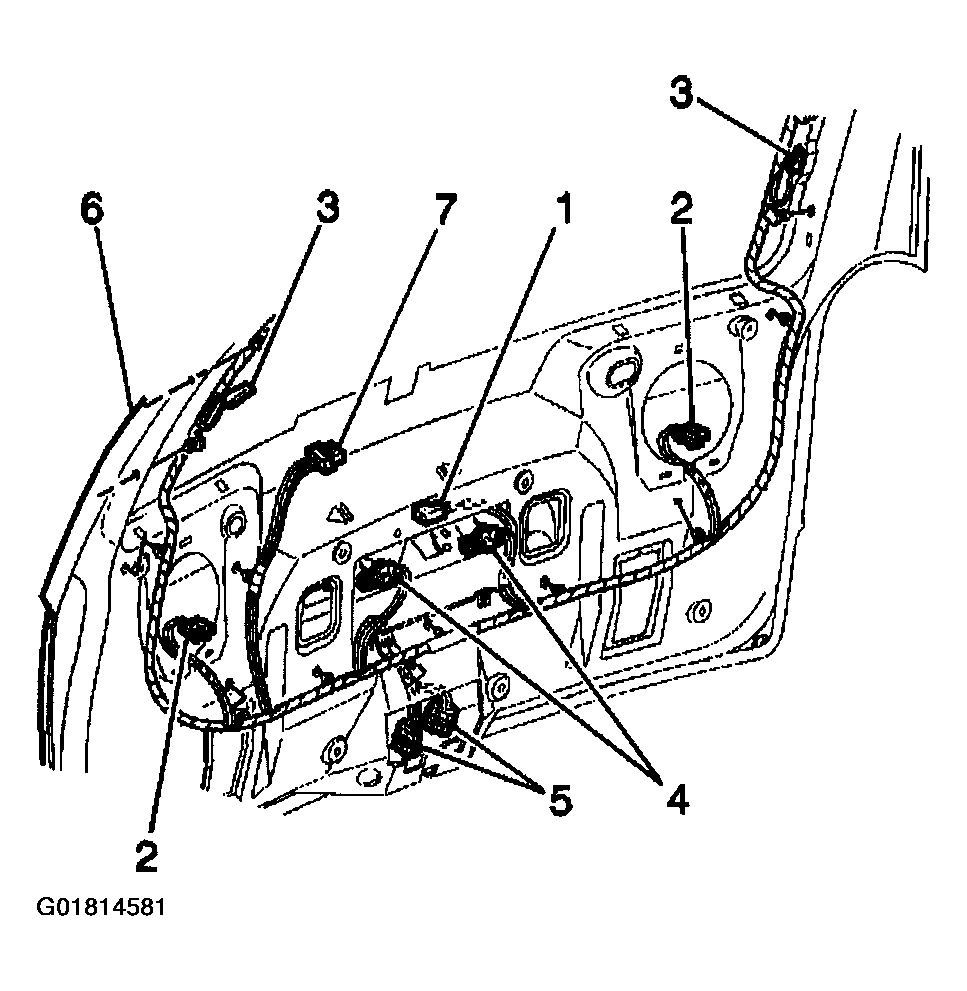

    Fig 1: Connecting Rear Wiper Motor Electrical Connector & Rear Window Defogger Electrical Connector
    G01814581Courtesy of GENERAL MOTORS CORP.
  5. Connect liftgate wiring harness connectors (2) to the rear body wiring harness (3).
  6. Install the rear corner upper garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - REAR CORNER UPPER .
  7. Install the rear washer hose. Refer to WASHER NOZZLE REPLACEMENT - REAR .
  8. Connect the liftgate latch electrical connectors
  9. Install the license plate lamps. Refer to LICENSE LAMP REPLACEMENT .
  10. Install the high mounted stop lamp. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT .
  11. Install the rear speakers to the liftgate. Refer to SPEAKER REPLACEMENT - REAR .
  12. Install the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  13. Close the liftgate.
  14. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

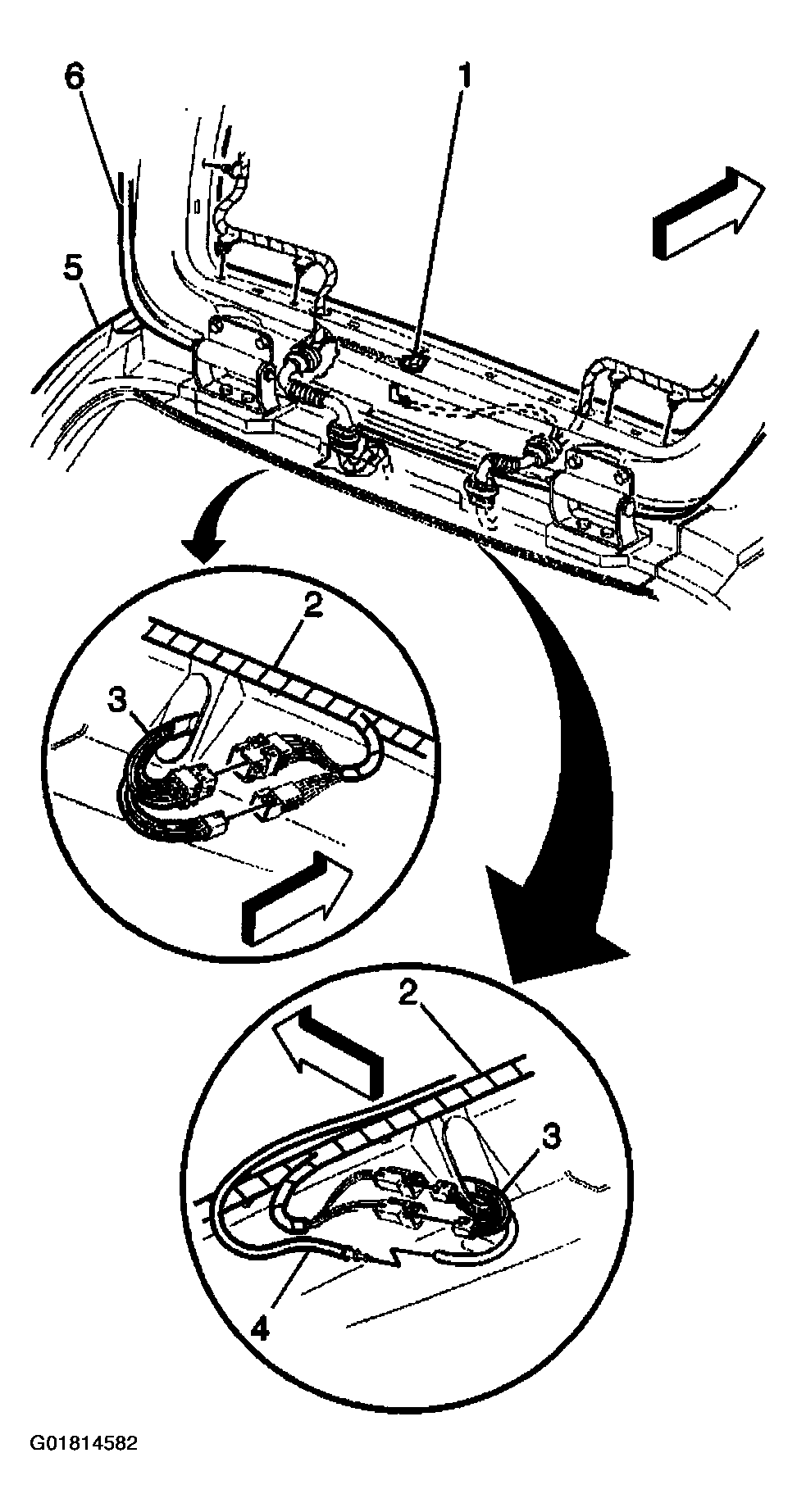

    Fig 2: Connecting Liftgate Wiring Harness Connectors To Rear Body Wiring Harness
    G01814582Courtesy of GENERAL MOTORS CORP.
