Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the body side rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR .
  2. Remove the bearing bushing screw.

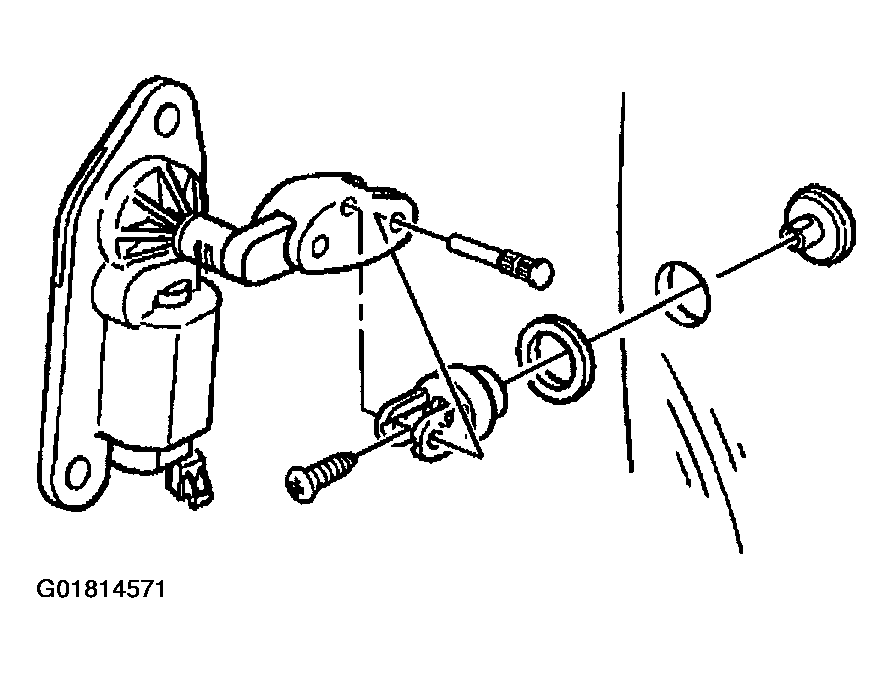

    Fig 1: Removing Bearing Bushing & Screw (Rear Quarter)
    G01814571Courtesy of GENERAL MOTORS CORP.
  3. Remove the retaining nuts from the rear quarter window hinge studs.
  4. Remove the rear quarter window from the vehicle.

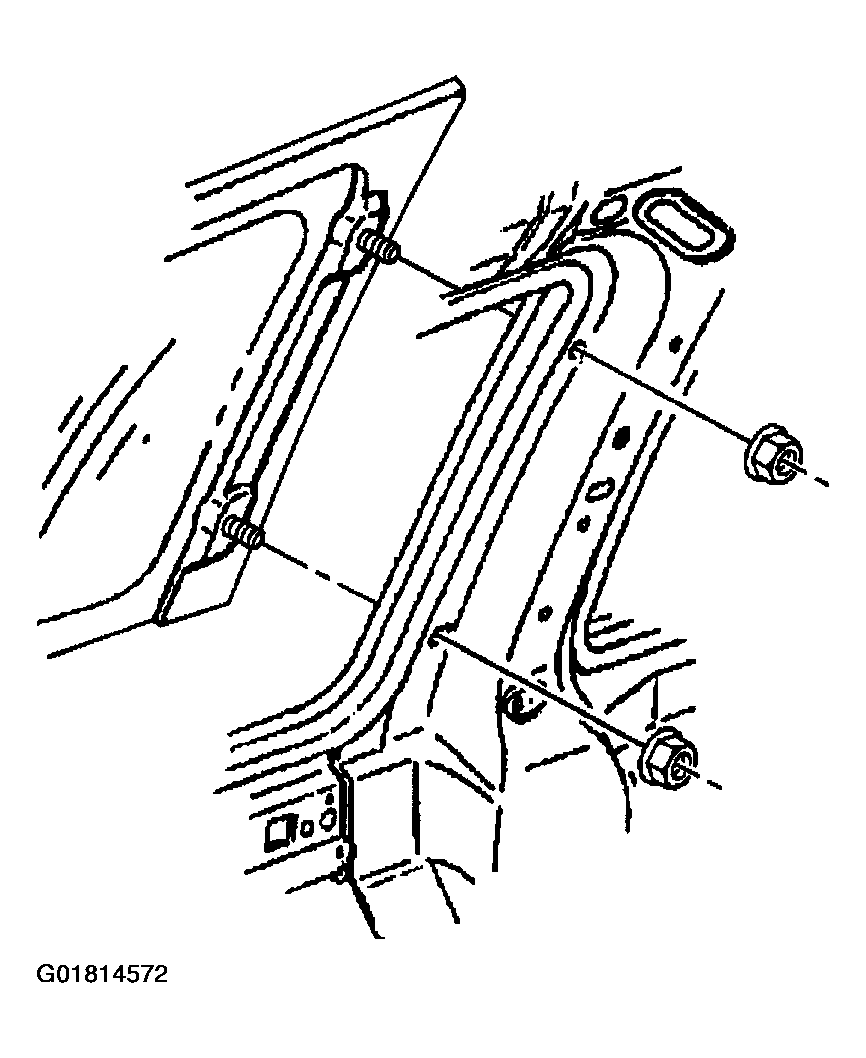

    Fig 2: Removing Retaining Nuts & Rear Quarter Window Hinge Studs (Rear Quarter)
    G01814572Courtesy of GENERAL MOTORS CORP.
