Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear quarter window to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the retaining nuts to the rear quarter window hinge studs.

    Tighten

    Tighten the rear quarter window hinge studs nuts to 10 N.m (89 lb in).

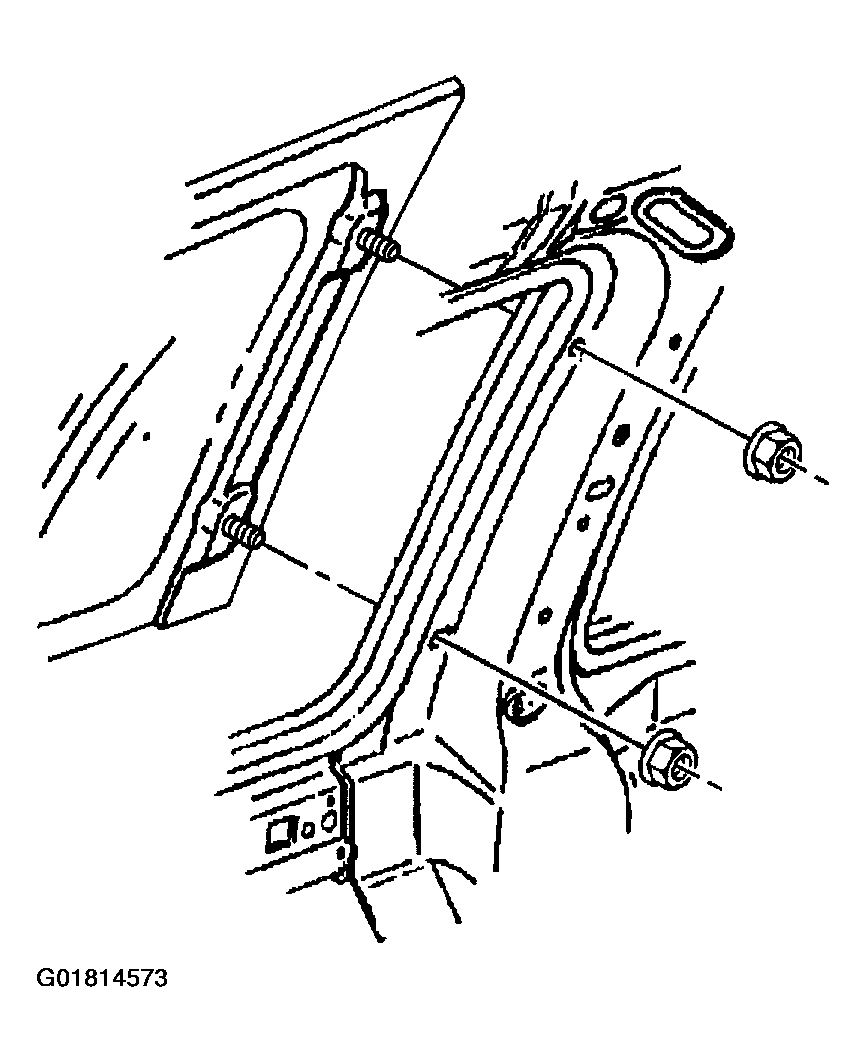

    Fig 1: Installing Retaining Nuts & Rear Quarter Window Hinge Studs (Rear Quarter)
    G01814573Courtesy of GENERAL MOTORS CORP.
  3. Install the bearing bushing retaining screw.

    Tighten

    Tighten the bearing bushing screw to 2 N.m (18 lb in).

  4. Install the body side rear upper garnish molding. Refer to GARNISH MOLDING REPLACEMENT - BODY SIDE REAR .

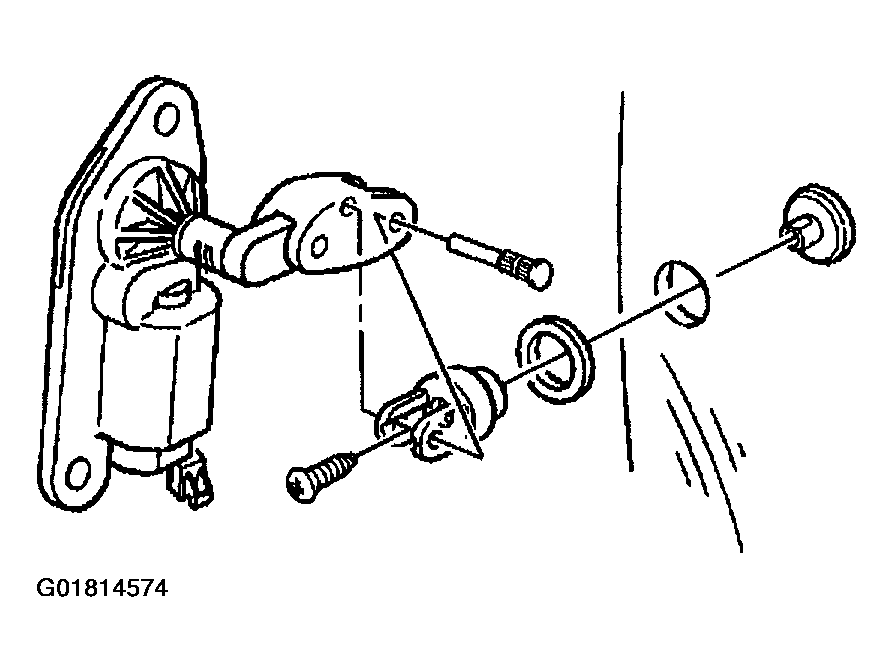

    Fig 2: Installing Bearing Bushing & Screw (Rear Quarter)
    G01814574Courtesy of GENERAL MOTORS CORP.
