Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear quarter window. Refer to Window Replacement - Rear Quarter .
  2. Pull the rear quarter window weatherstrip from the pinch-weld flange.
  3. Remove the rear quarter window weatherstrip from the vehicle.
  4. Clean all adhesive from the quarter window pinch-weld flange.

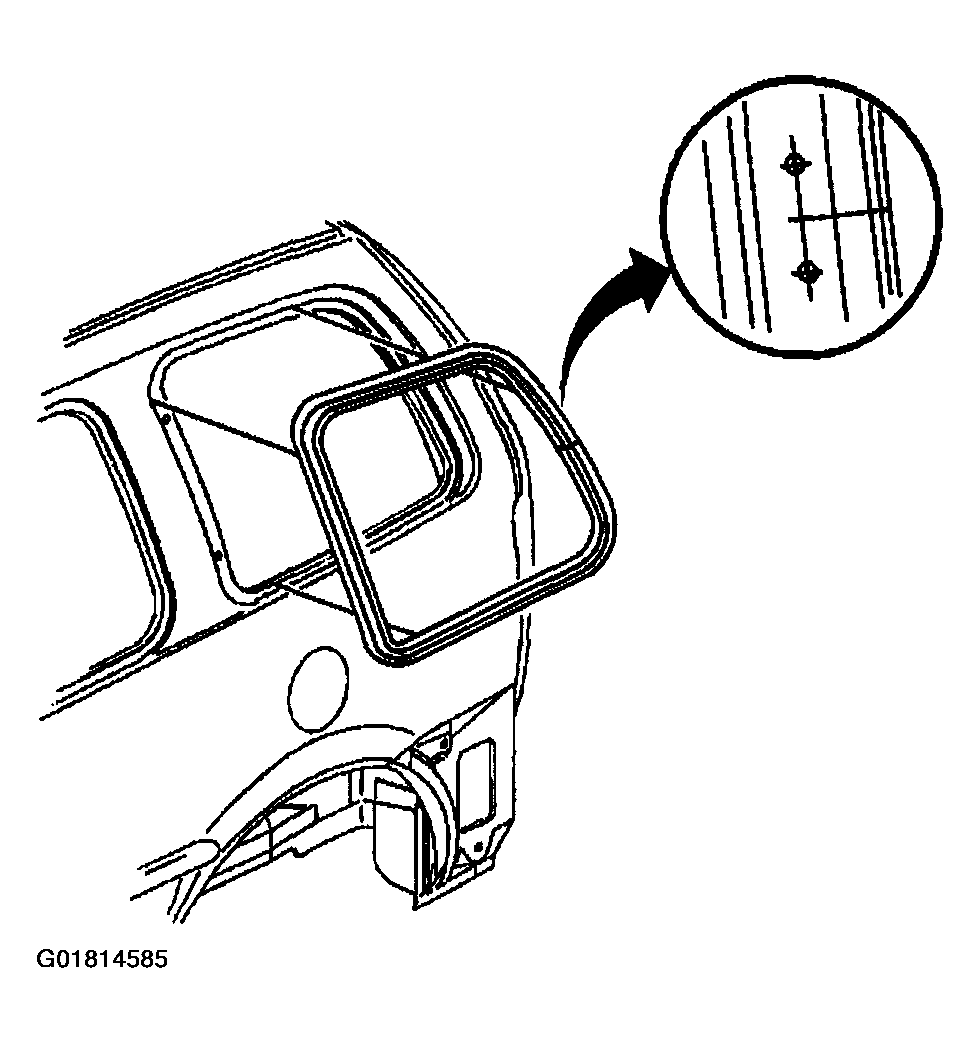

    Fig 1: Removing Rear Quarter Window Weatherstrip
    G01814585Courtesy of GENERAL MOTORS CORP.
