Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate sill plate. Refer to DOOR SILL PLATE REPLACEMENT - LIFT GATE .
  3. Pull the liftgate weatherstrip from the liftgate opening.
  4. Clean all adhesive from the liftgate opening pinch-weld flange.

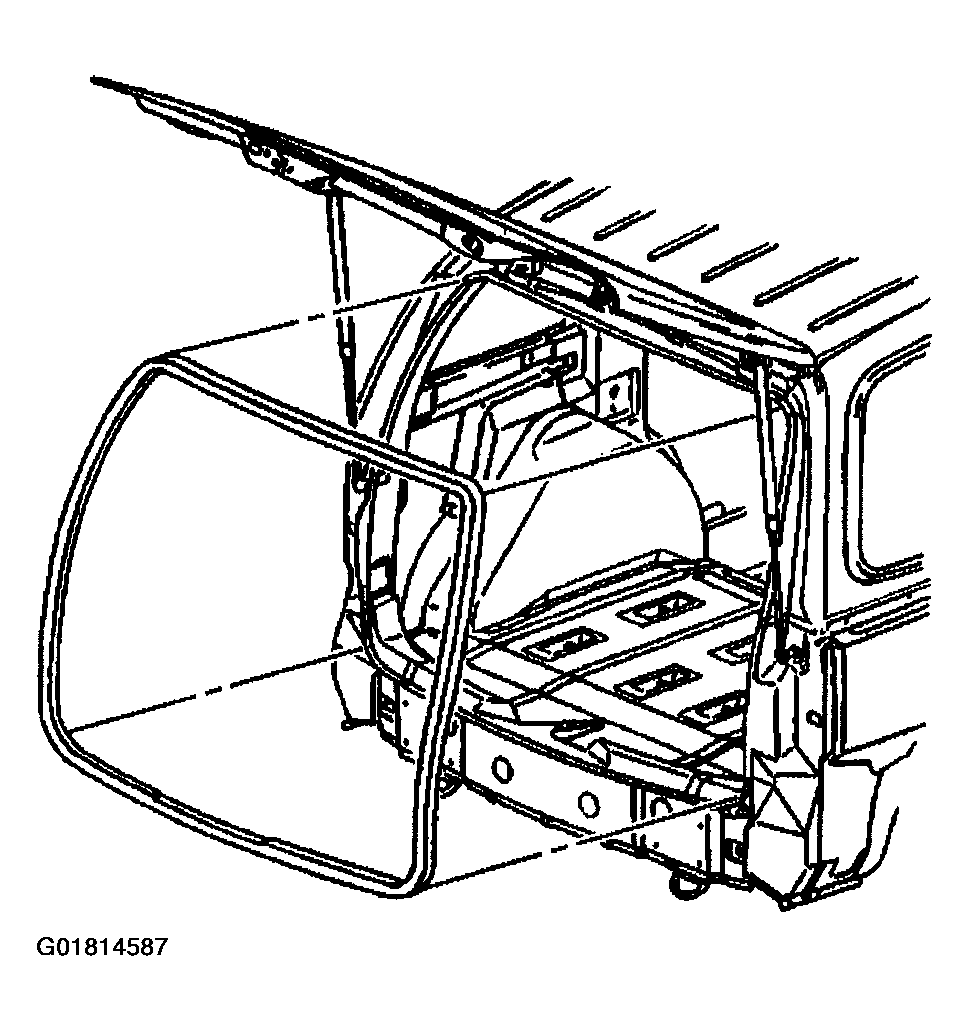

    Fig 1: Removing Liftgate Weatherstrip
    G01814587Courtesy of GENERAL MOTORS CORP.
