Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate pull strap. Refer to Pullstrap Replacement - Lift Gate .
  3. Using the J 38778  release the liftgate trim panel retainers.
  4. Remove the trim panel from the lift gate.

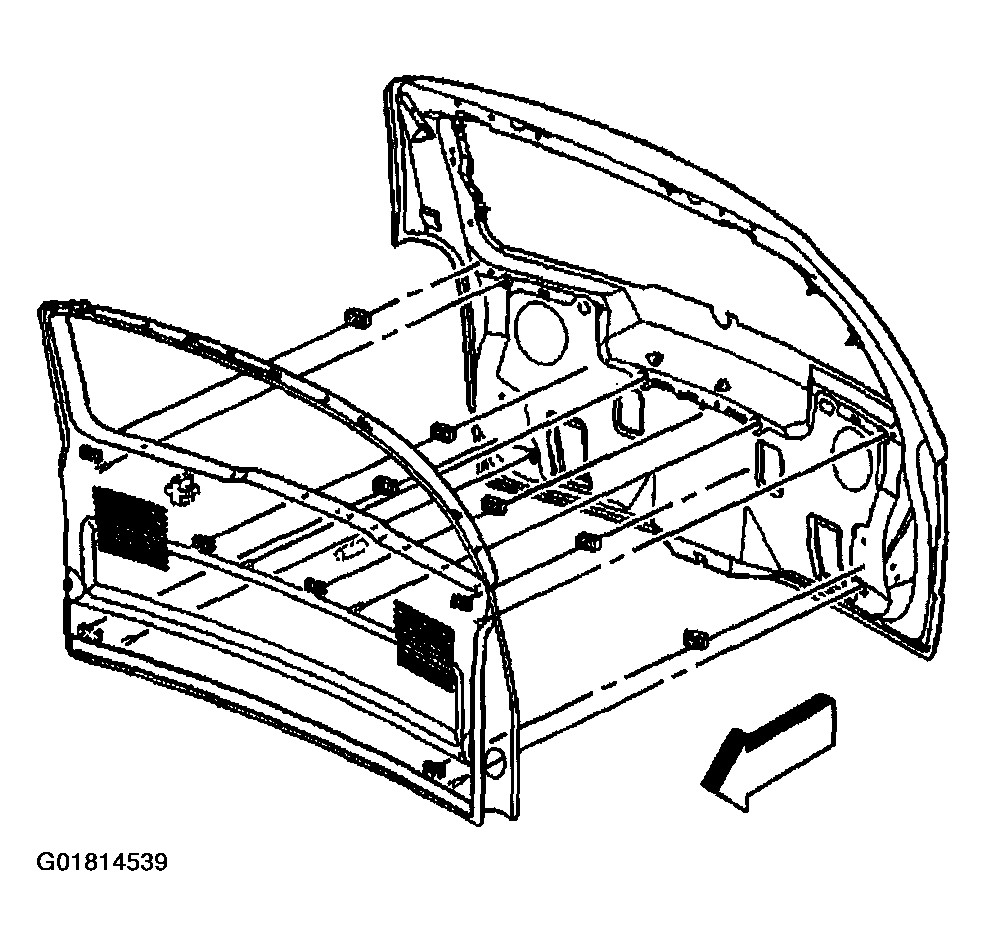

    Fig 1: Removing Trim Panel & Lift Gate
    G01814539Courtesy of GENERAL MOTORS CORP.
