Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the 4-way and 2-way wedges on the liftgate trim panel to the wedges on the liftgate.
  2. Align the liftgate trim panel studs to the holes in the liftgate.
  3. Align the upper edge of the liftgate trim panel to the top center of the liftgate.
  4. Install the upper edge of the liftgate trim panel to the top center of the liftgate.
  5. Push on the liftgate trim panel in the four corners and center to secure the trim panel retainers.
  6. Install the liftgate pull strap. Refer to Pullstrap Replacement - Lift Gate .
  7. Close the liftgate.

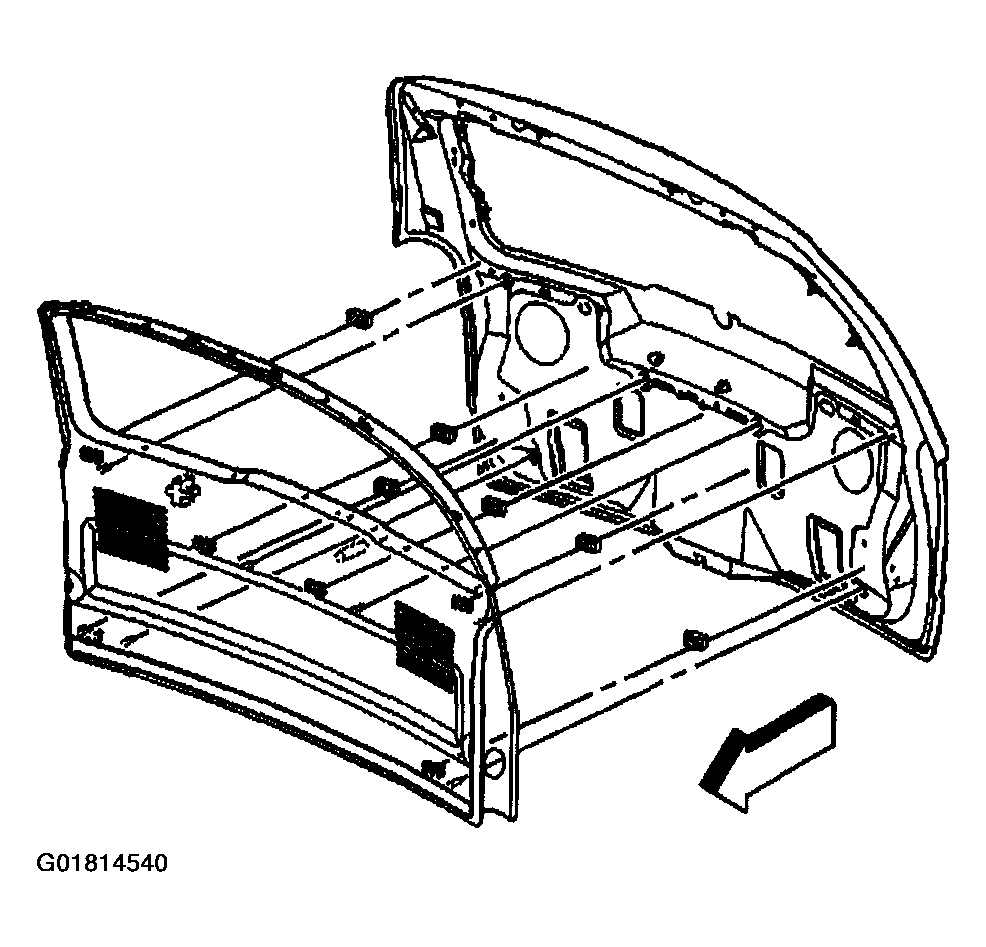

    Fig 1: Installing Trim Panel & Lift Gate
    G01814540Courtesy of GENERAL MOTORS CORP.
