Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the screws (2) from the pull strap (1).
  3. Remove the pull strap (1) from the liftgate.

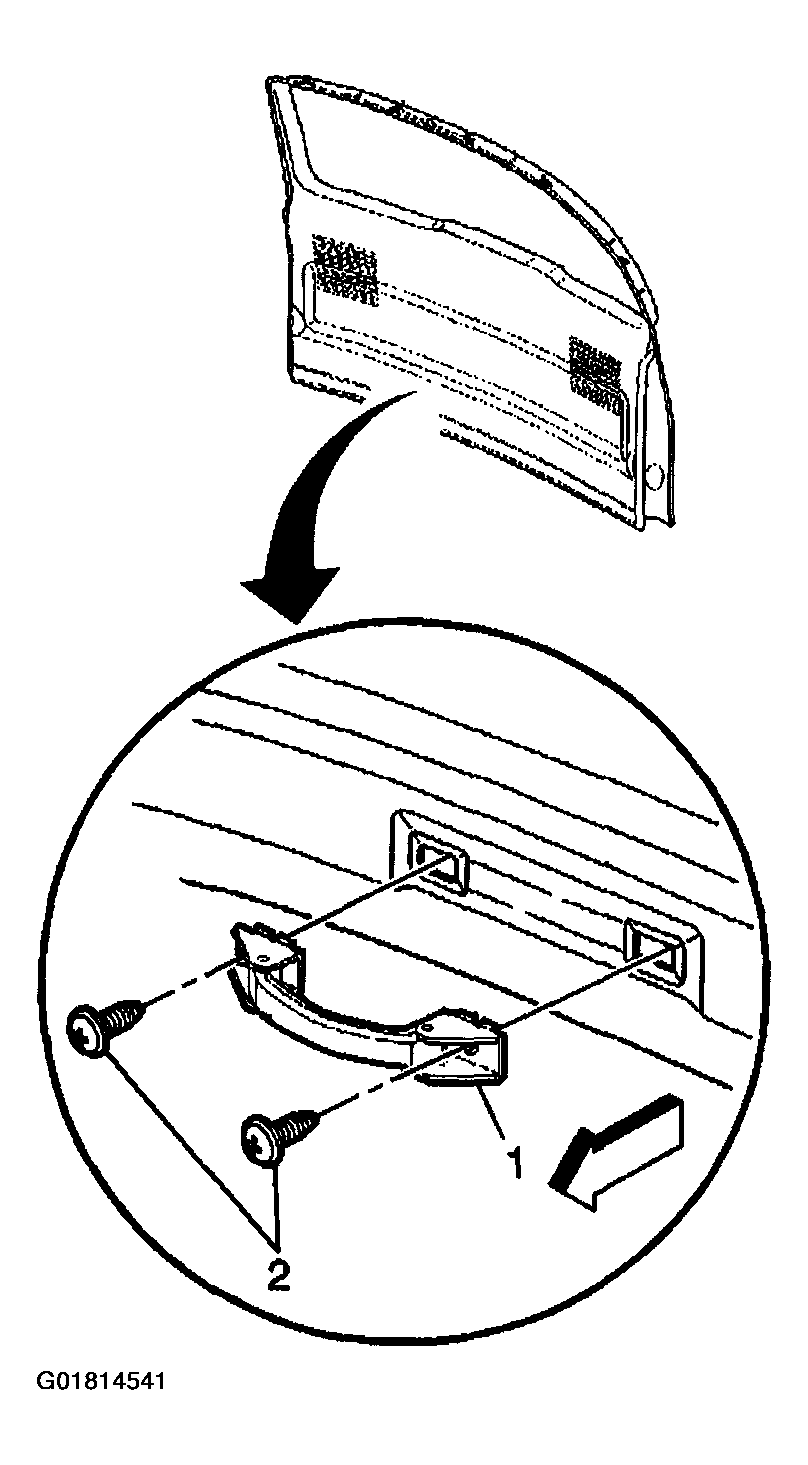

    Fig 1: Removing Screws & Pull Strap
    G01814541Courtesy of GENERAL MOTORS CORP.
