Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pull strap (1) to the lift gate.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the pull strap screws (2).

    Tighten

    Tighten the pullstrap retaining screws to 2 N.m (18 lb in).

  3. Close the liftgate.

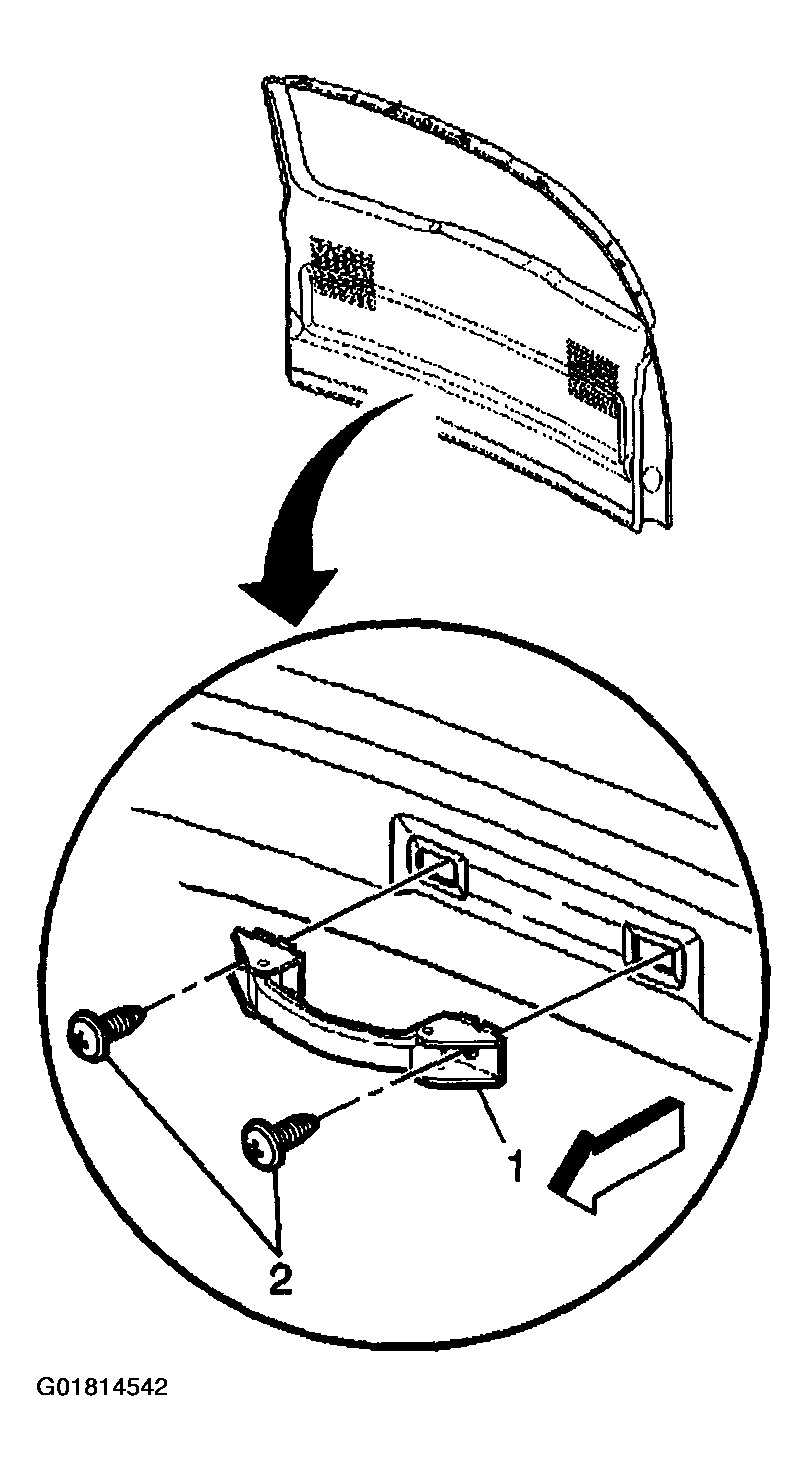

    Fig 1: Installing Screws & Pull Strap
    G01814542Courtesy of GENERAL MOTORS CORP.
