Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear bumper fascia. Refer to FASCIA REPLACEMENT - REAR BUMPER (OLDSMOBILE) or FASCIA REPLACEMENT - REAR BUMPER (PONTIAC) .
  2. Remove the rear accessory panel. Refer to ACCESSORY PANEL REPLACEMENT - REAR .
  3. Use a small, flat-bladed tool in order to push on the retainers from the inside of the quarter panel.
  4. Remove the pressure relief valve from the body.

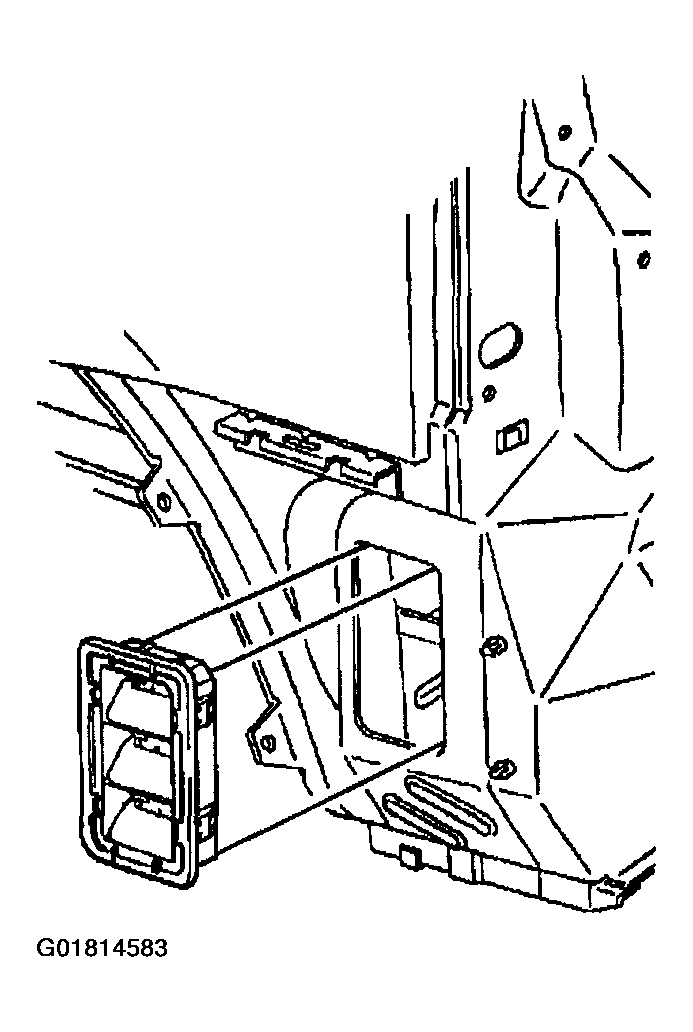

    Fig 1: Removing Pressure Relief Valve
    G01814583Courtesy of GENERAL MOTORS CORP.
