Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  3. Remove the liftgate handle molding. Refer to Handle Replacement - Lift Gate .
  4. Remove the nuts from the lock cylinder.
  5. Disconnect electrical connector, if equipped.

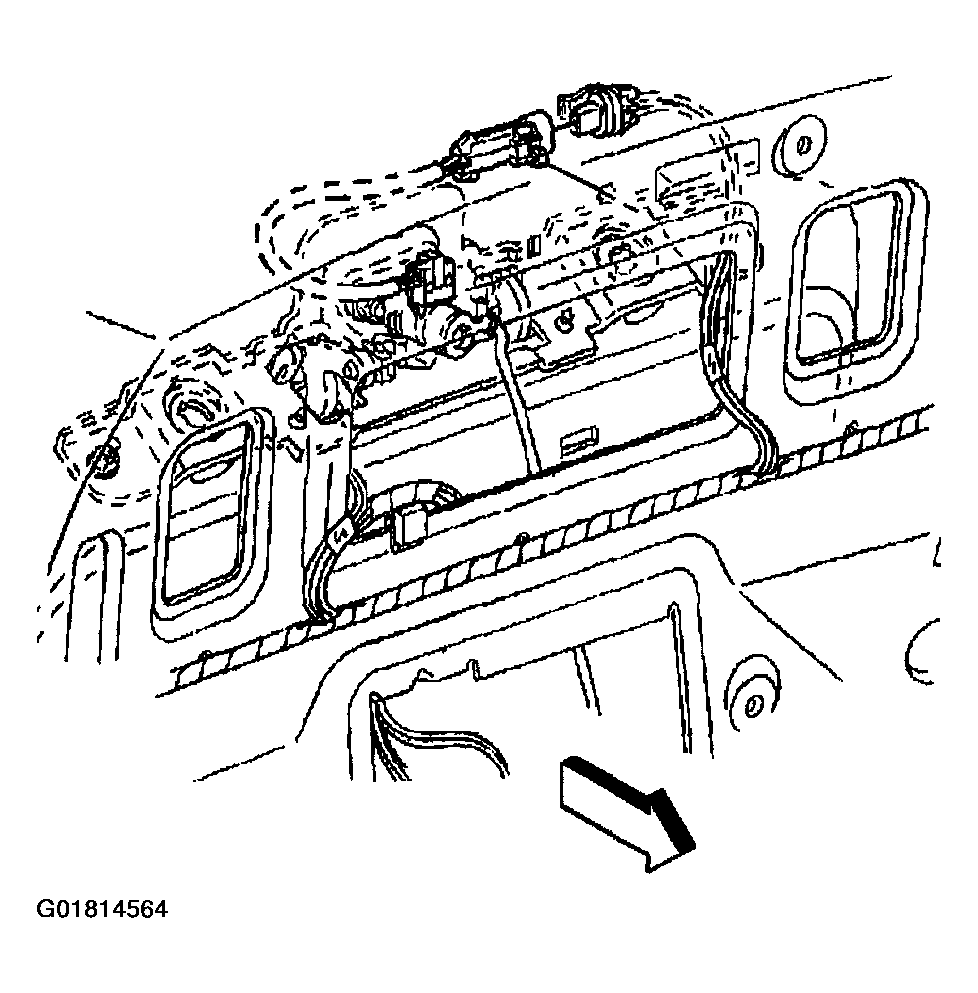

    6. Fig 1: Disconnecting Liftgate Lock Cylinder Electrical Connector
    G01814564Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the lock rod from the cylinder.

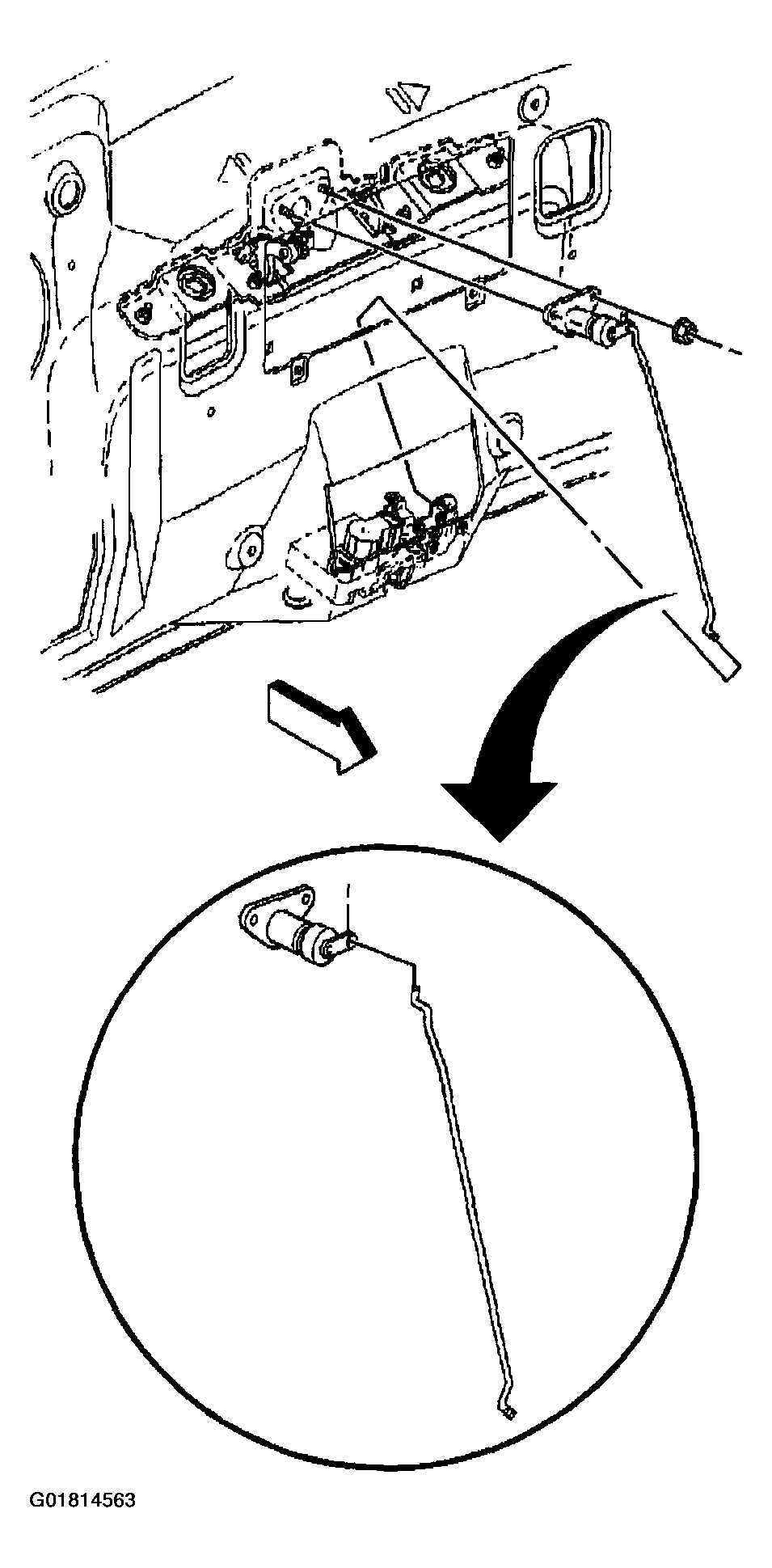

    7. Fig 2: Removing Liftgate Handle Molding
    G01814563Courtesy of GENERAL MOTORS CORP.
  7. Remove the lock cylinder from the liftgate.
