Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock cylinder to the liftgate.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the liftgate lock cylinder retaining nuts.

    Tighten

    Tighten the nuts to 10 N.m (89 lb in).

  3. Attach the lock rod to the key cylinder.
  4. Connect the electrical connector, if equipped.

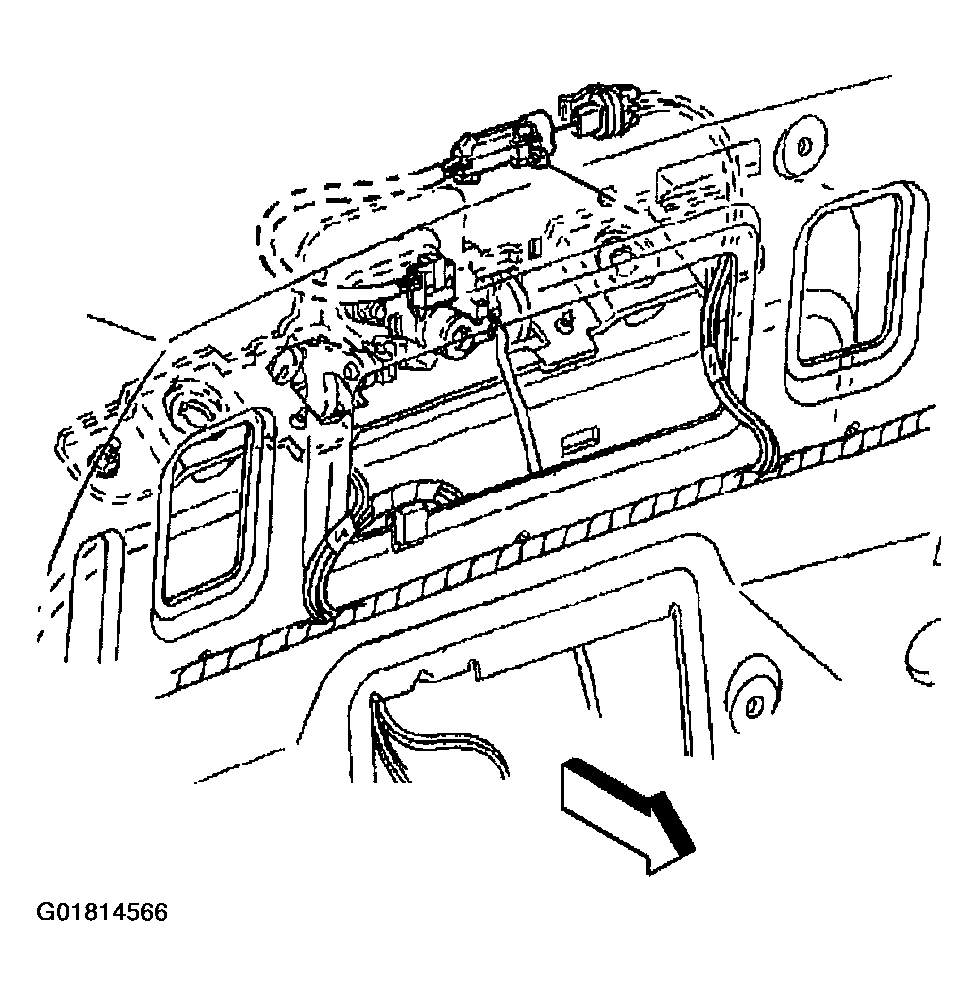

    5. Fig 1: Connecting Liftgate Lock Cylinder Electrical Connector
    G01814566Courtesy of GENERAL MOTORS CORP.
  5. Attach the lock rod to the latch.

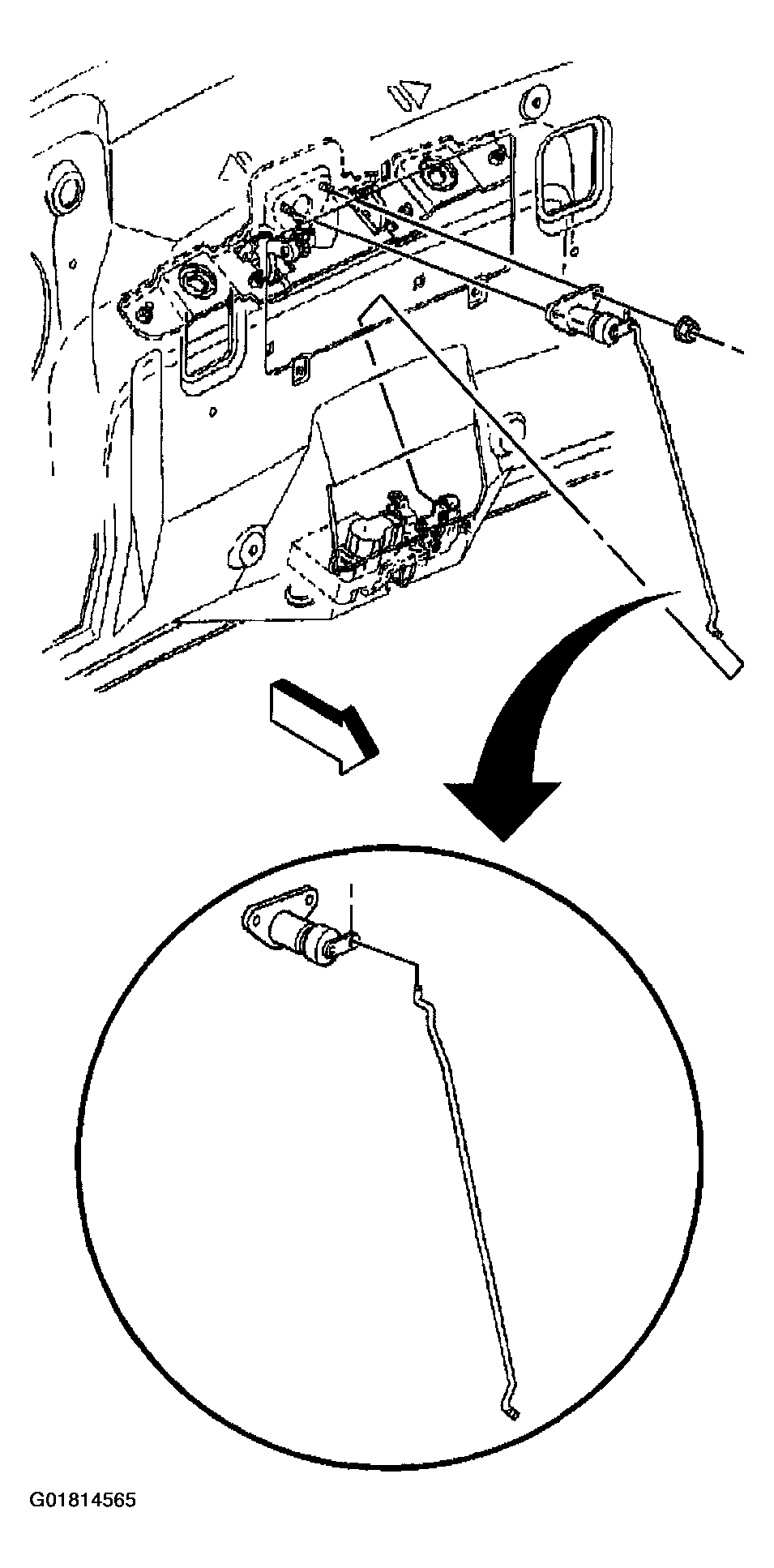

    6. Fig 2: Connecting Lock Rod To Cylinder
    G01814565Courtesy of GENERAL MOTORS CORP.
  6. Install the liftgate handle molding. Refer to Handle Replacement - Lift Gate .
  7. Install the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  8. Close the liftgate.
