Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove screws from liftgate striker.
  3. Remove liftgate striker and spacer from vehicle.

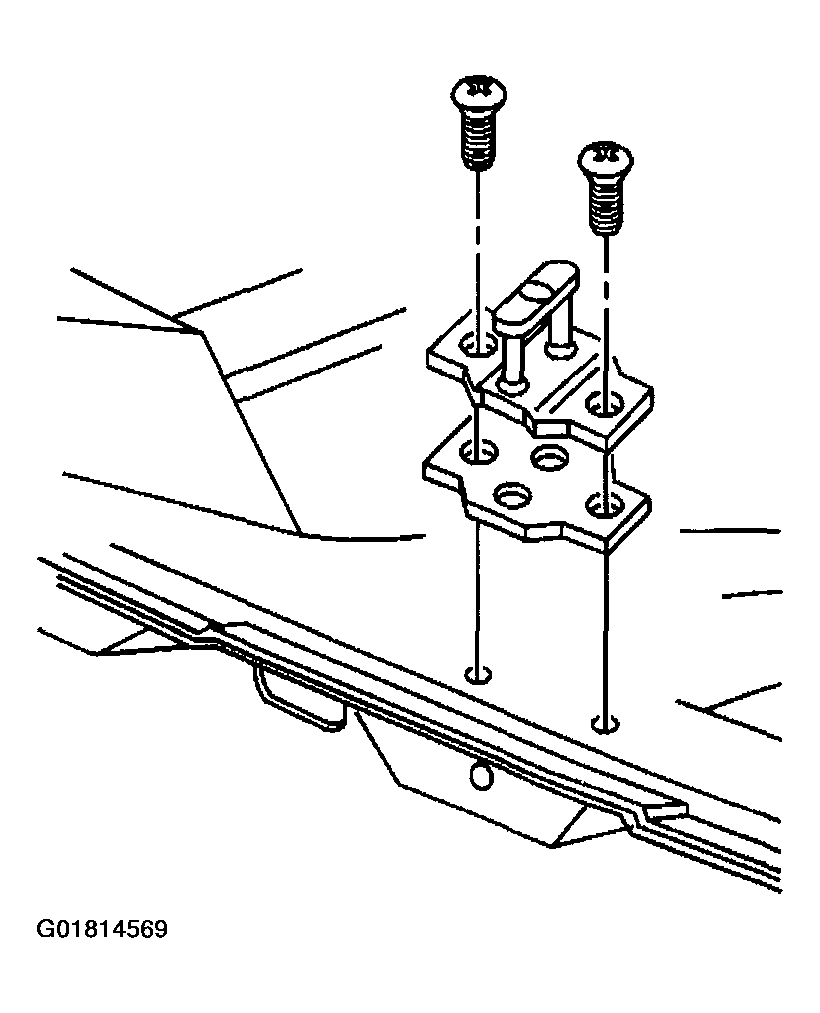

    Fig 1: Liftgate Striker, Spacer & Screws
    G01814569Courtesy of GENERAL MOTORS CORP.
