Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align spacer and liftgate striker to holes in body.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the liftgate striker retaining bolts.

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

  3. Close the liftgate.

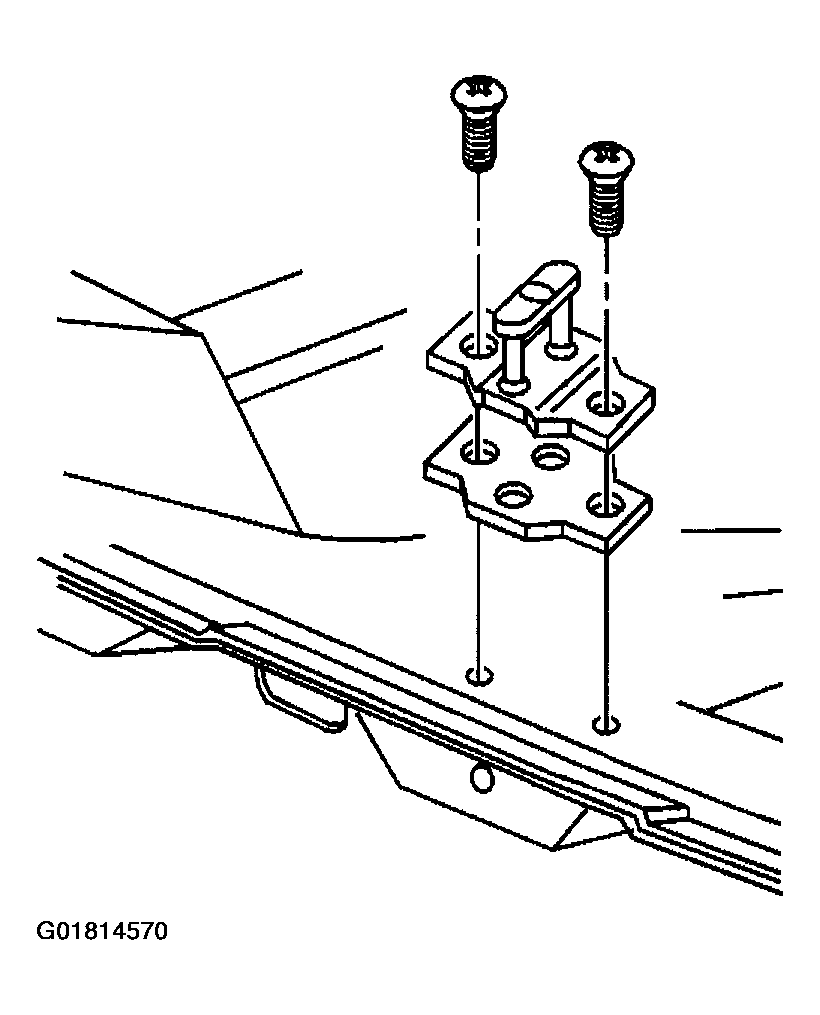

    Fig 1: Liftgate Striker, Spacer & Screws
    G01814570Courtesy of GENERAL MOTORS CORP.
