Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate latch to the liftgate.
  2. Press the lock cylinder rod into the liftgate latch.
  3. Install the latch cable to the liftgate latch and engage latch cable retainer.
  4. Connect the electrical connector to the liftgate latch.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the liftgate latch retainer bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  6. Install the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  7. Close the liftgate.

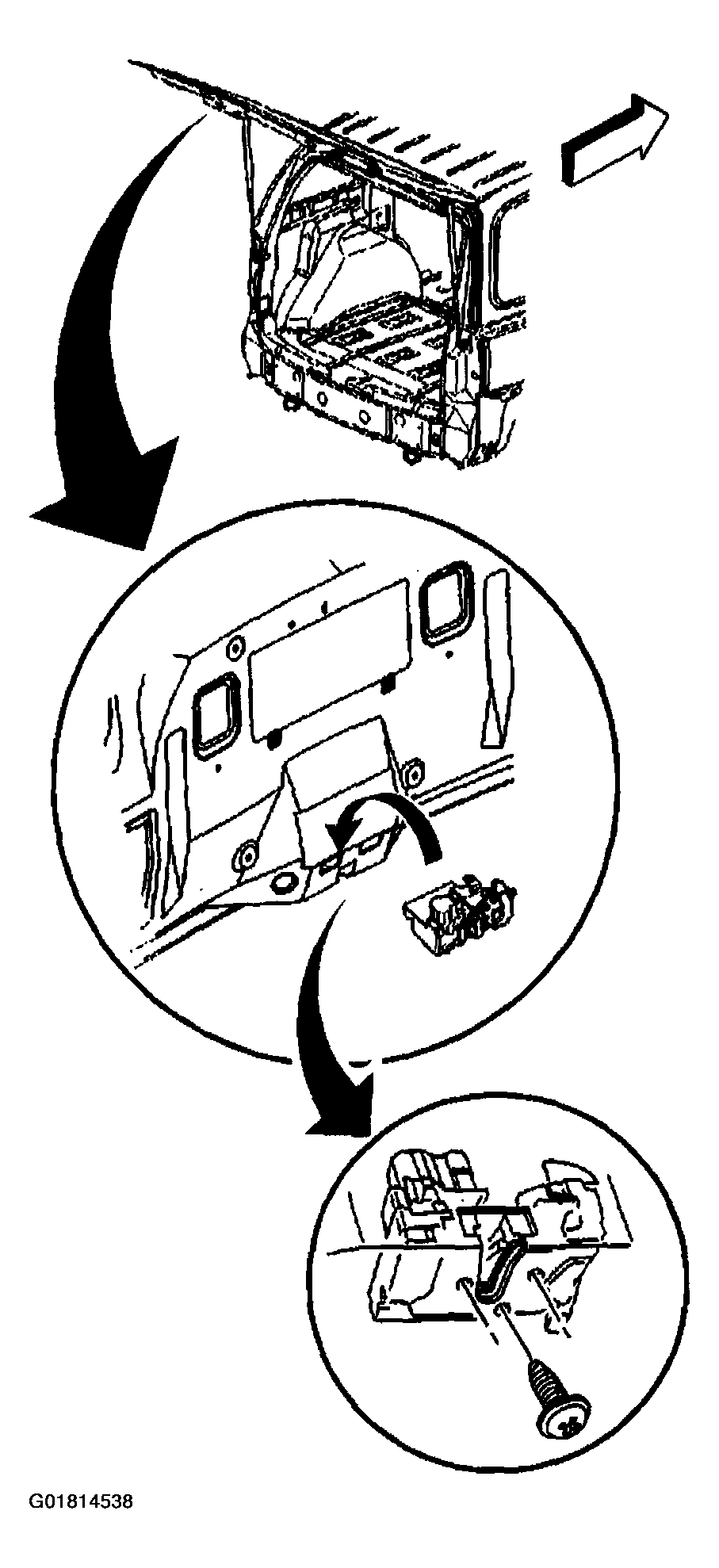

    Fig 1: Installing Liftgate Latch & Retaining Bolts
    G01814538Courtesy of GENERAL MOTORS CORP.
