Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  3. Remove the license plate lamp sockets by turning the sockets counterclockwise.
  4. Remove the liftgate handle nuts from the studs inside the liftgate.
  5. Remove the bolts from the liftgate handle.
  6. Remove the liftgate latch cable from the handle.
  7. Remove the liftgate handle from the liftgate.

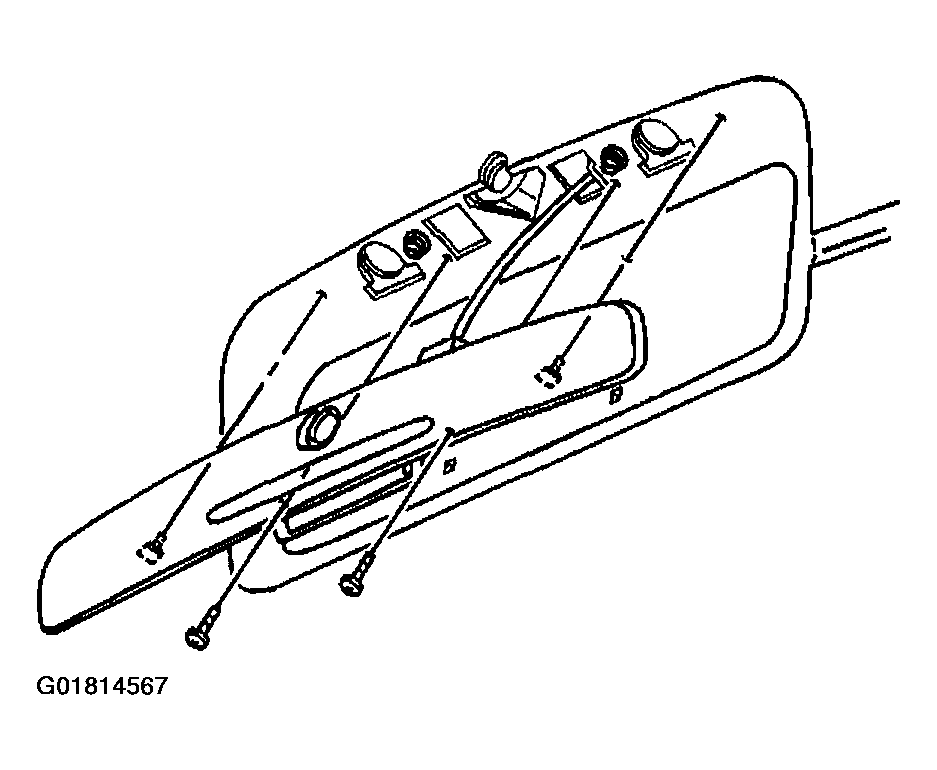

    Fig 1: Removing Bolts & Liftgate Handle
    G01814567Courtesy of GENERAL MOTORS CORP.
