Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the liftgate latch cable to the liftgate handle.
  2. Align the liftgate handle studs with holes in liftgate.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the liftgate handle retaining bolts.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  4. Install the liftgate handle retaining nuts to the studs.

    Tighten

    Tighten the bolts to 10 N.m (89 lb in).

  5. Install license plate lamp sockets by turning sockets clockwise.
  6. Install the liftgate trim panel. Refer to Trim Panel Replacement - Lift Gate .
  7. Close the liftgate.

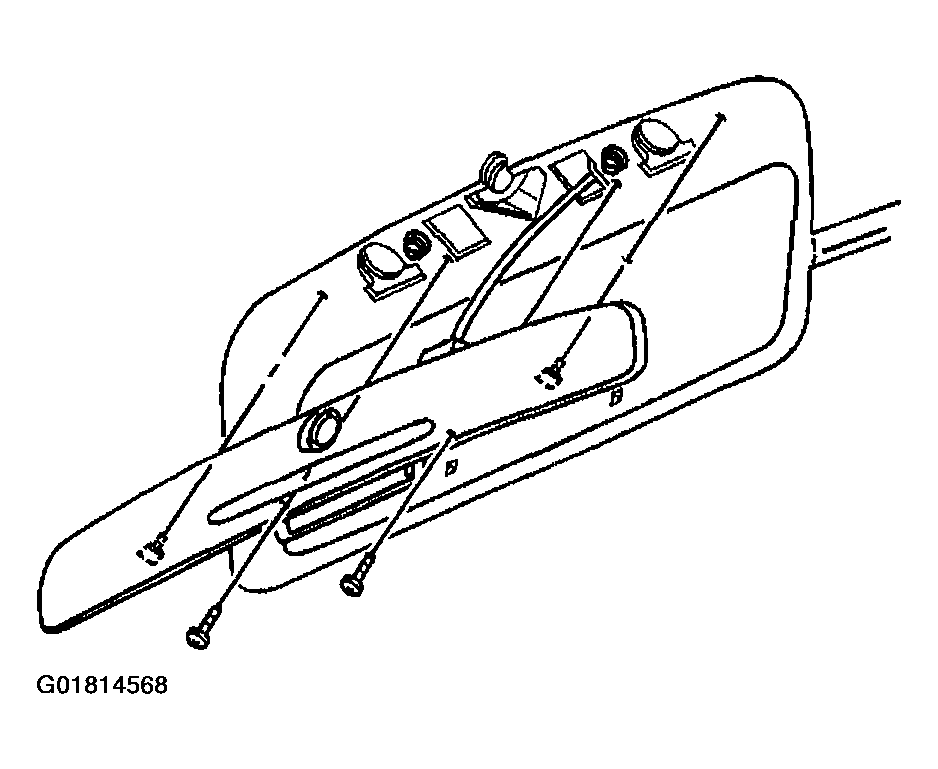

    Fig 1: Installing Bolts & Liftgate Handle
    G01814568Courtesy of GENERAL MOTORS CORP.
