Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fuel filler pocket to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the fuel filler pocket.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  3. Install the push in retainer to the fuel filler pocket.
  4. Install the fuel cap to the fuel filler pocket.
  5. Close the fuel filler door.

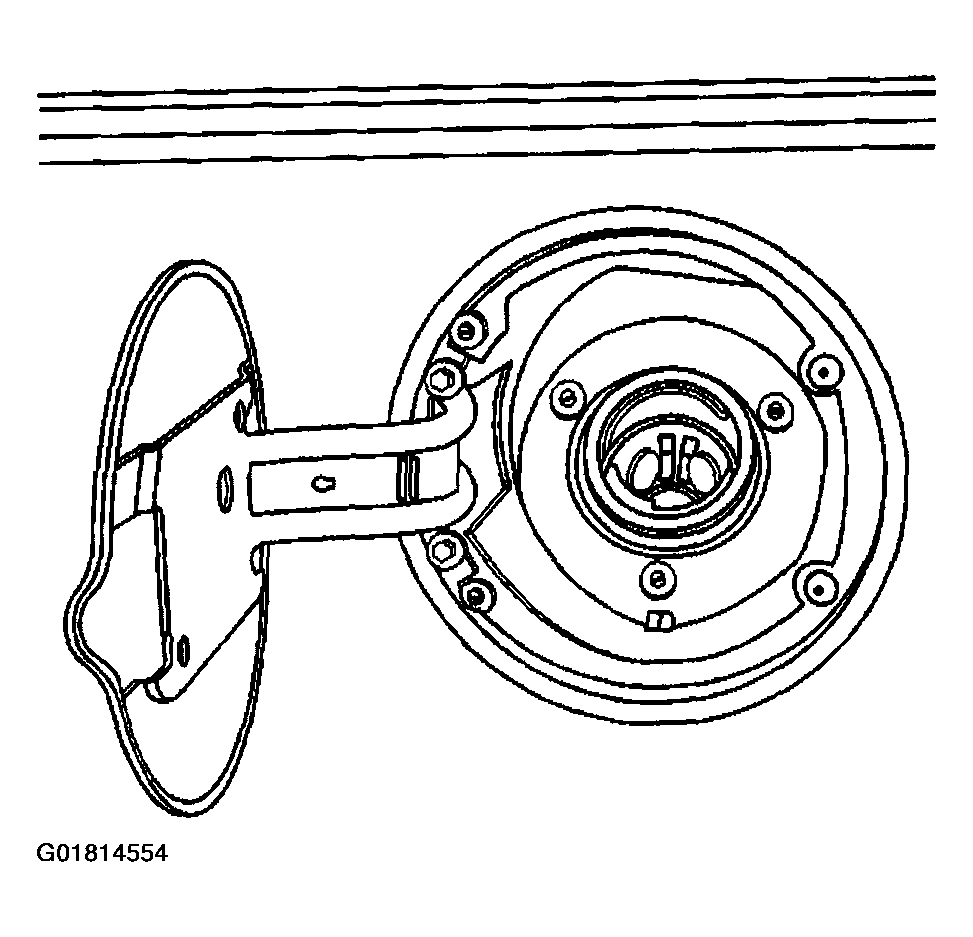

    Fig 1: Installing Fuel Filler Pocket
    G01814554Courtesy of GENERAL MOTORS CORP.
