Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the fuel filler door.
  2. Remove the fuel filler cap.
  3. Remove the fuel filler pocket. Refer to Fuel Filler Pocket Replacement .
  4. Disconnect the fuel filler door interlock cable from the fuel filler door. Refer to Fuel Filler Door Innerlock Cable Replacement .
  5. Remove the screws from the fuel filler door.
  6. Remove the fuel filler door from the vehicle.

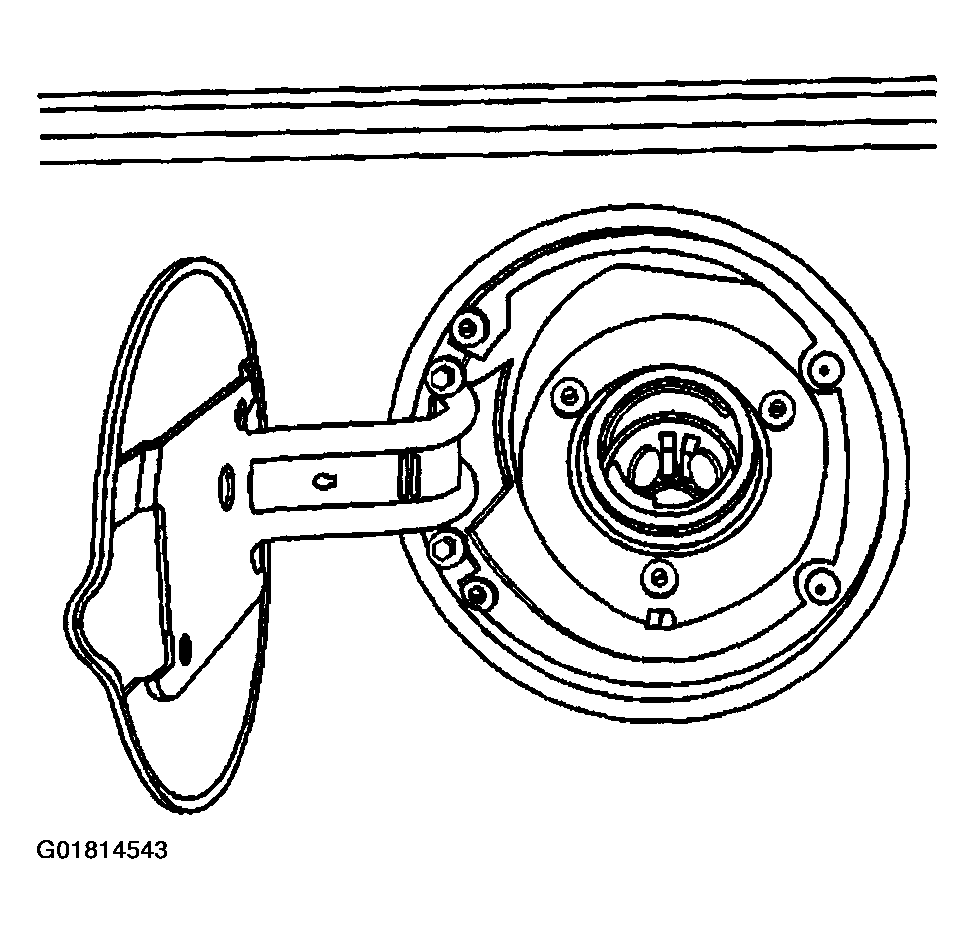

    Fig 1: Removing Fuel Filler Door
    G01814543Courtesy of GENERAL MOTORS CORP.
