Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the fuel filler door to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the fuel filler door screws.

    Tighten

    Tighten the screws to 10 N.m (89 lb in).

  3. Connect the fuel filler door interlock cable to the fuel filler door. Refer to Fuel Filler Door Innerlock Cable Replacement .
  4. Install the fuel filler pocket. Refer to Fuel Filler Pocket Replacement .
  5. Install the fuel filler cap.
  6. Close the fuel filler door.

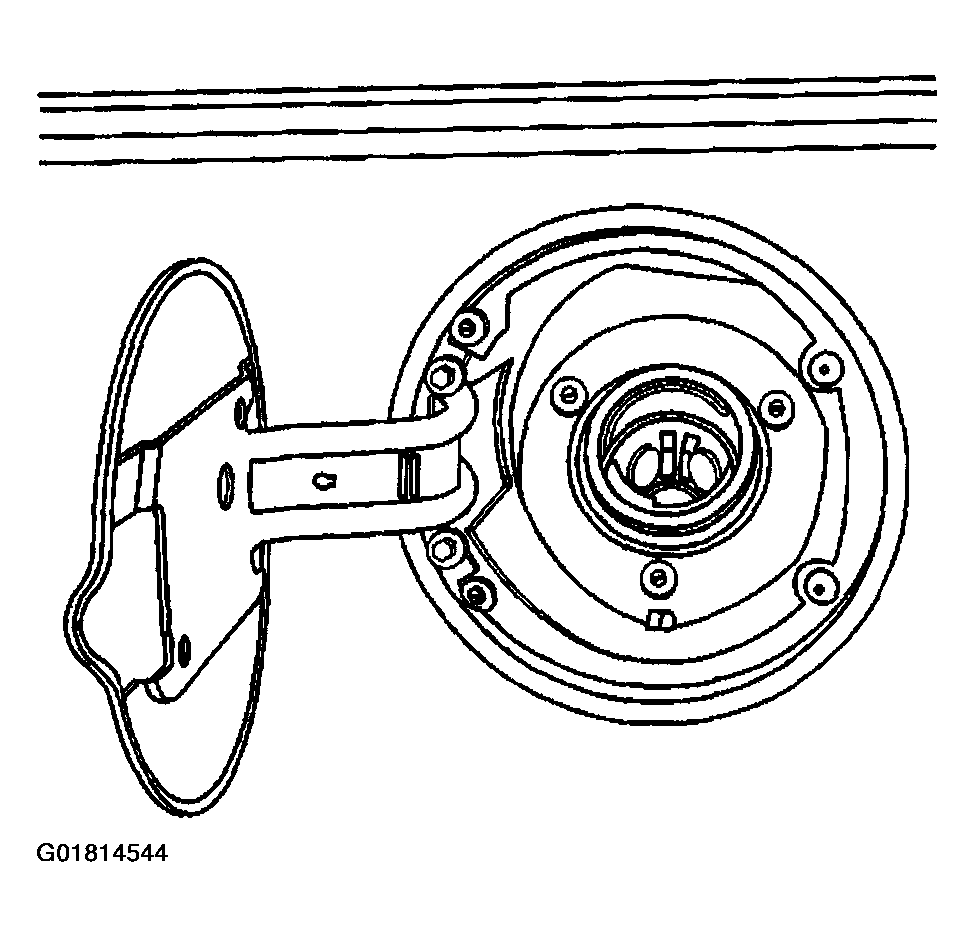

    Fig 1: Installing Fuel Filler Door
    G01814544Courtesy of GENERAL MOTORS CORP.
