Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the sliding door.
  2. Remove the bolts from the fuel filler interlock bracket.

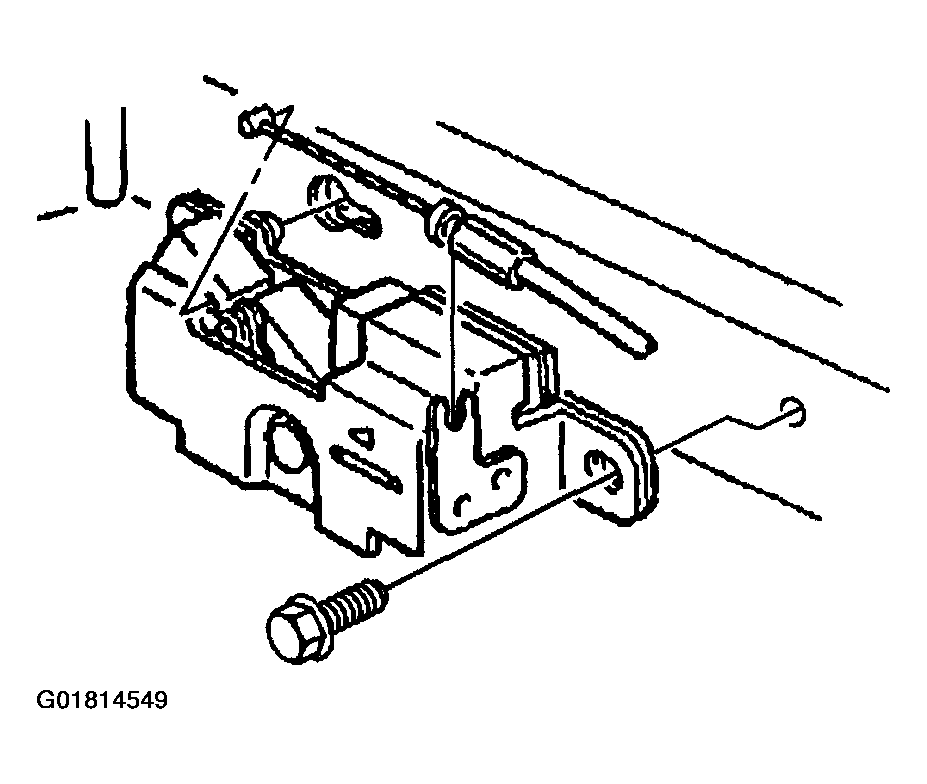

    Fig 1: Removing Bolts & Fuel Filler Interlock Bracket
    G01814549Courtesy of GENERAL MOTORS CORP.
  3. Slide the fuel filler interlock bracket toward the front of the vehicle.
  4. Remove the fuel filler interlock from the body.
  5. Disconnect the fuel filler interlock cable from the fuel filler interlock bracket.

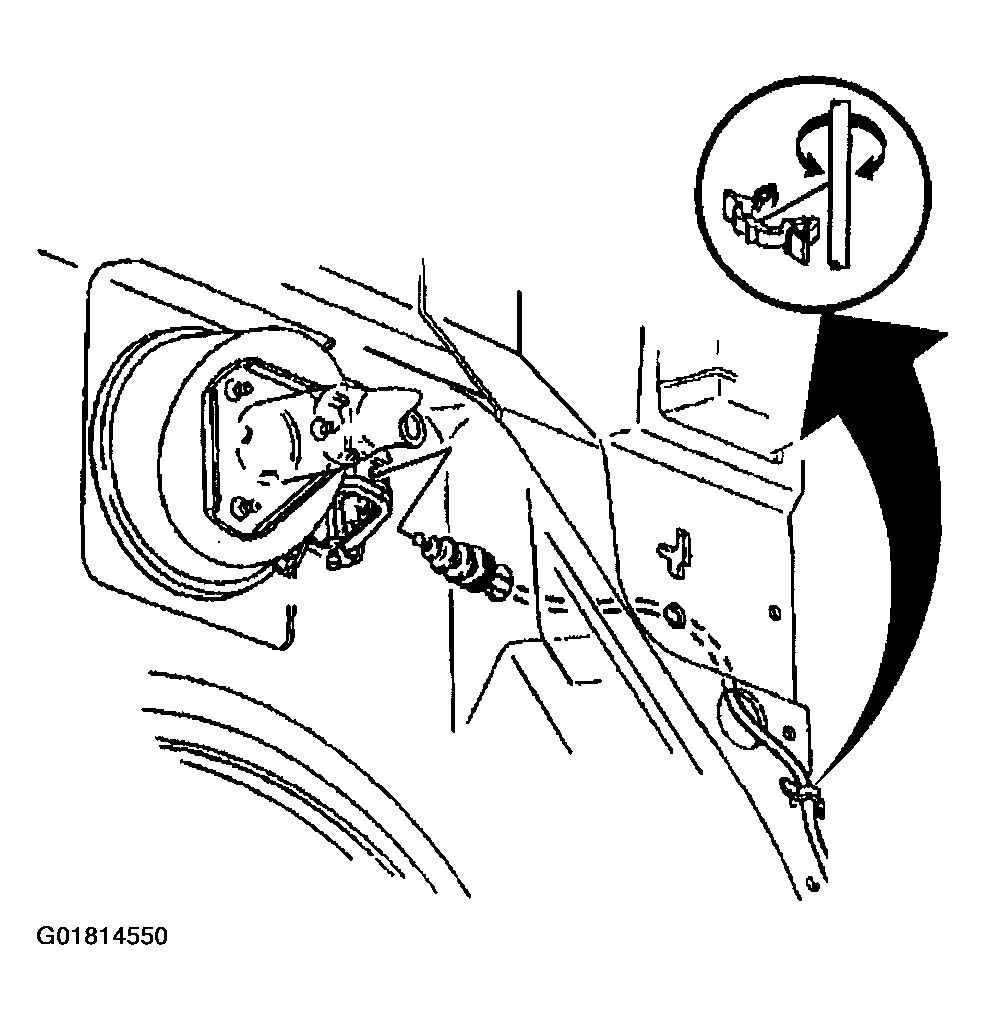

    Fig 2: Disconnecting Fuel Filler Interlock Cable
    G01814550Courtesy of GENERAL MOTORS CORP.
