Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the fuel filler interlock cable to the fuel filler interlock bracket.
  2. Insert the fuel filler interlock into the proper hole in the body.
  3. Slide the fuel filler interlock bracket toward the rear of the vehicle.

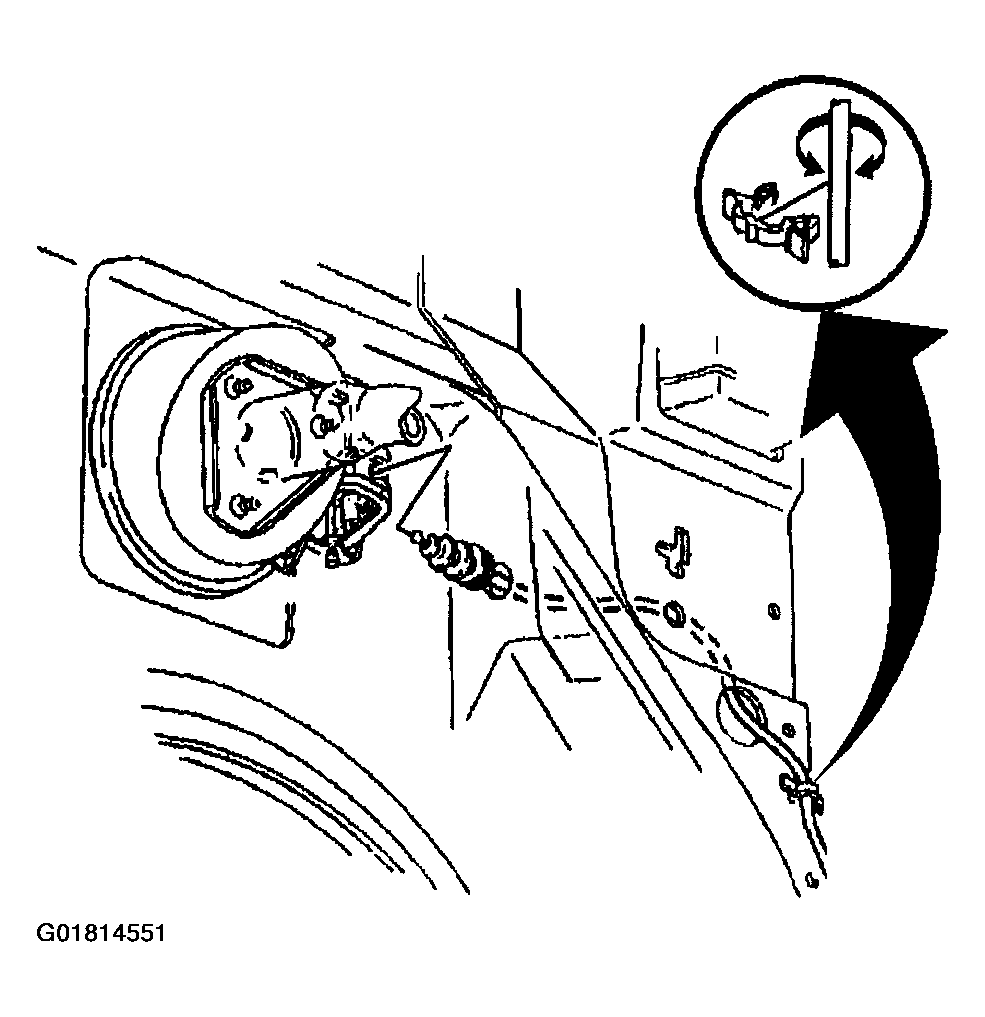

    Fig 1: Connecting Fuel Filler Interlock Cable
    G01814551Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the bolts to the fuel filler interlock bracket.

    Tighten

    Tighten the fuel filler door interlock bracket retaining bolts to 25 N.m (18 lb ft).

  5. Close the sliding door.

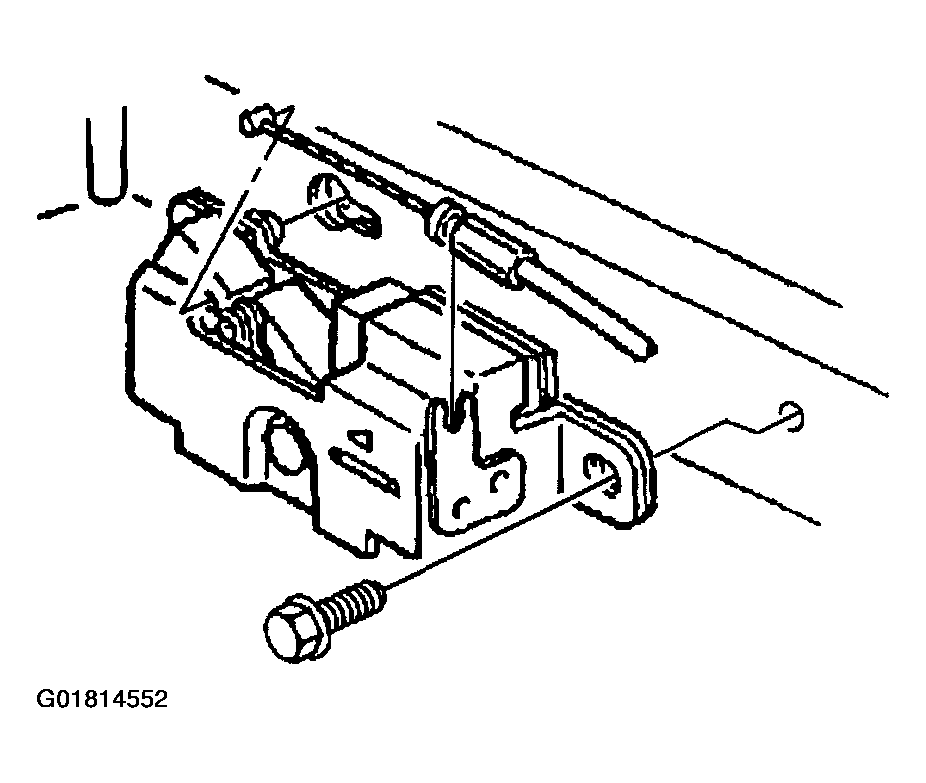

    Fig 2: Installing Bolts & Fuel Filler Interlock Bracket
    G01814552Courtesy of GENERAL MOTORS CORP.
