Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left rear inner fender liner.
  2. Open the left sliding door.
  3. Releases the tension on fuel filler door interlock and remove fuel door interlock cable from the fuel filler door interlock.
  4. Attach a piece of mechanics wire to the fuel filler door interlock cable end.

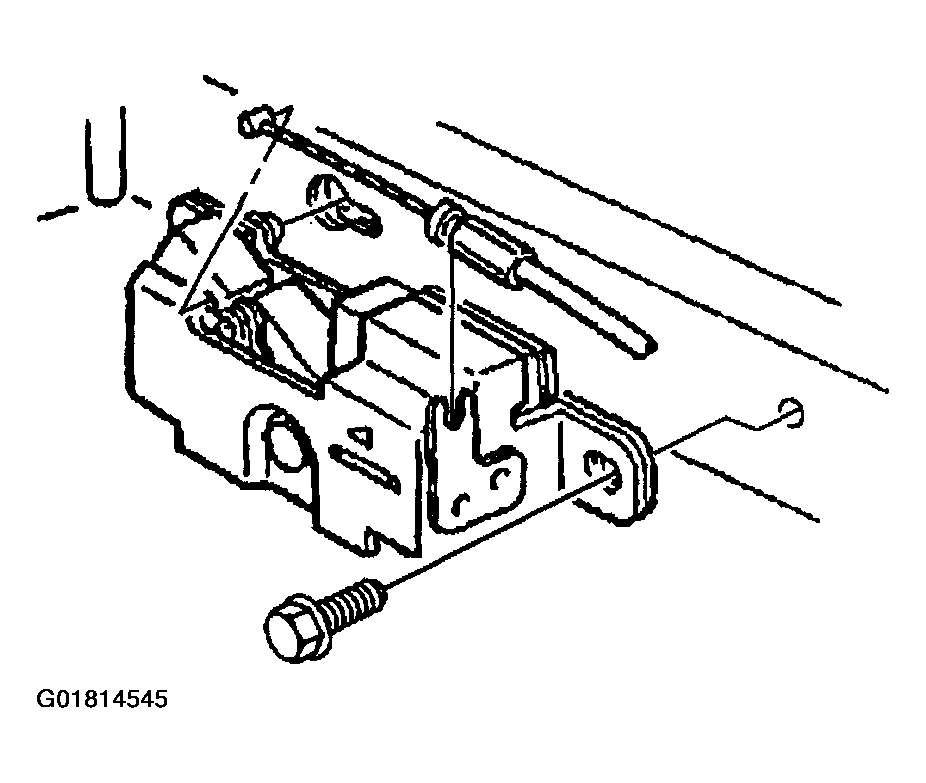

    Fig 1: Removing Fuel Filler Door Interlock, Cable & Bolt
    G01814545Courtesy of GENERAL MOTORS CORP.
  5. Use a small flat-bladed tool to release the fuel filler door cable from the rear inner quarter panel.
  6. Disconnect the fuel filler door interlock cable from the fuel filler door.
  7. Use the mechanics wire to pull the fuel filler door interlock cable through the rear inner quarter panel openings.
  8. Remove the mechanics wire from the fuel filler door interlock cable leaving the mechanics wire routed through the rear quarter panel.
  9. Remove the fuel filler door interlock cable from the vehicle.

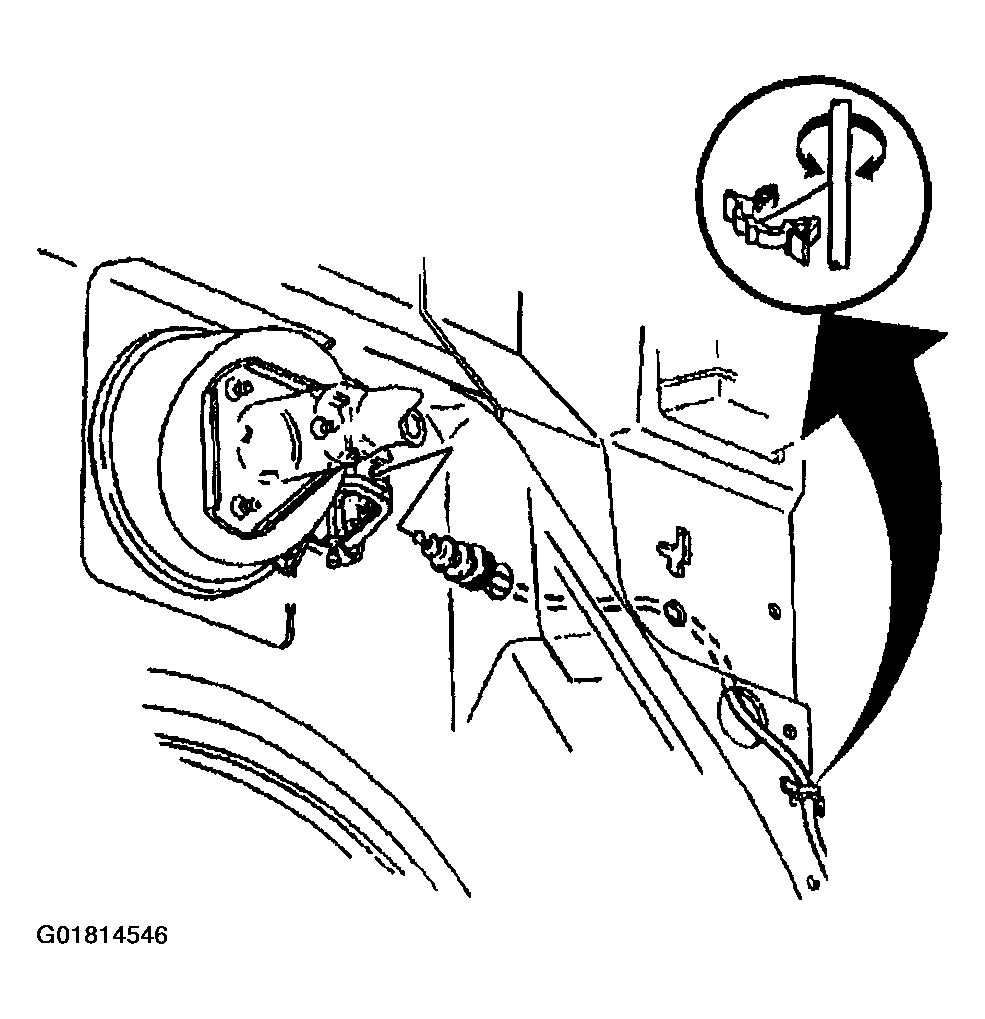

    Fig 2: Removing Fuel Filler Door Interlock Cable
    G01814546Courtesy of GENERAL MOTORS CORP.
