Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Attach the fuel filler door interlock cable end to the mechanics wire.
  2. Use the mechanic wire to pull the fuel filler door interlock cable through the rear quarter panel openings.
  3. Remove the mechanics wire from the fuel filler door interlock cable.
  4. Press in on the fuel filler door interlock cable to seat into the rear inner quarter panel.
  5. Connect the fuel filler door interlock cable to the fuel filler door.

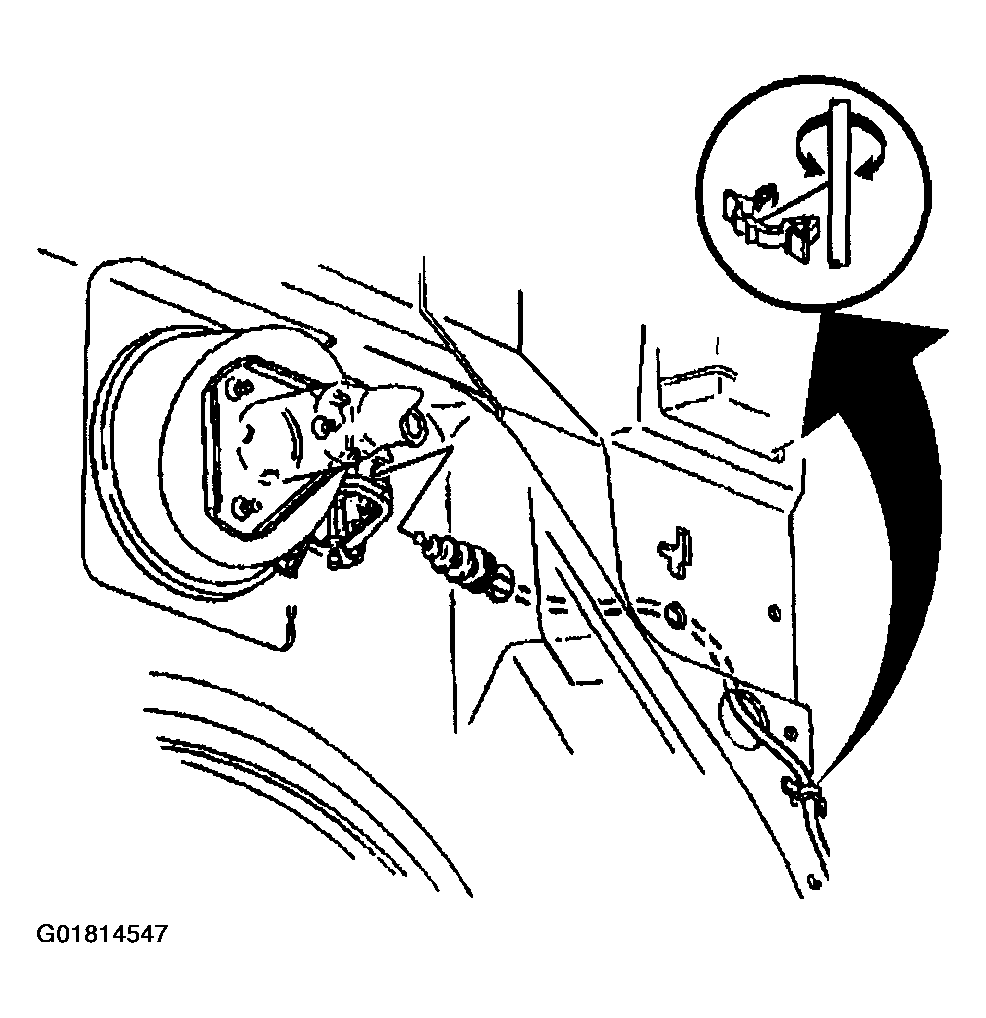

    Fig 1: Installing Fuel Filler Door Interlock Cable
    G01814547Courtesy of GENERAL MOTORS CORP.
  6. Release the tension on the fuel door interlock and install fuel filler door interlock cable to the fuel filler interlock.
  7. Close the left sliding door.
  8. Install the left rear inner fender liner.

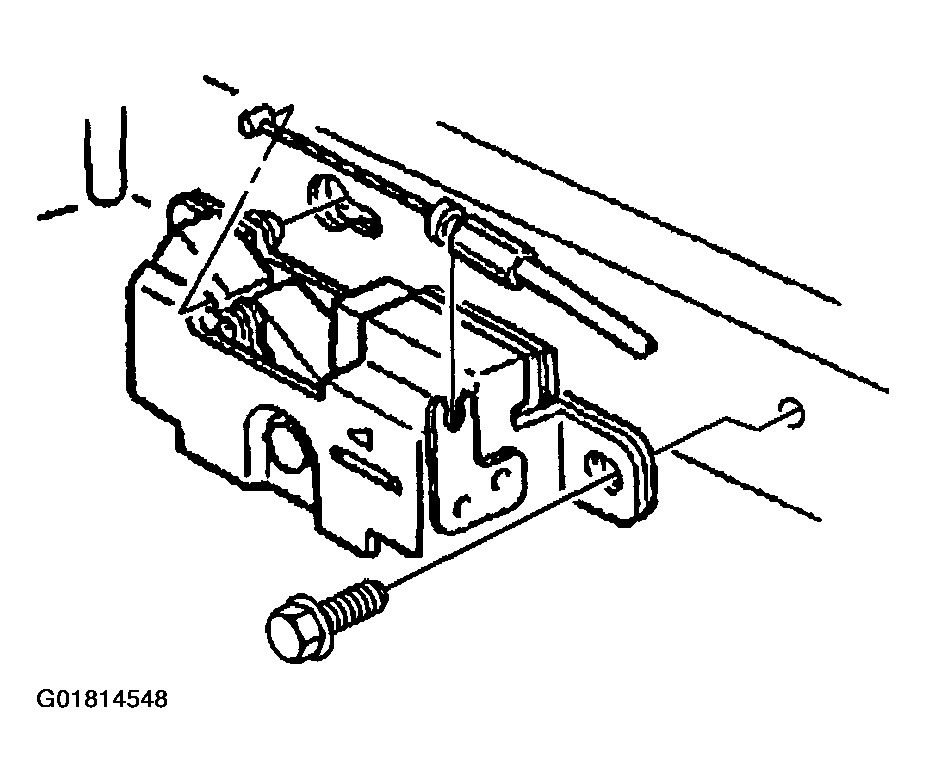

    Fig 2: Installing Fuel Filler Door Interlock, Cable & Bolt
    G01814548Courtesy of GENERAL MOTORS CORP.
